Foxsew
FX-2200
Ultrasonic Tape Cutting Machine (Multi Function)
Product features
1 / 5

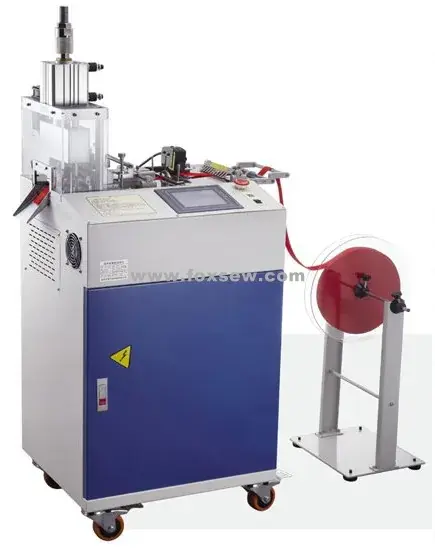

FOXSEW Multi Function Ultrasonic Tape Cutting Machine, Ultrasonic Webbing Cutting Machine
Ultrasonic cutting, large touch screen, sharing platform. Varity shapes.
Special features:
Ultrasonic cutting: Blade is not black, ghost edge and feel comfortable. The powerful transducer cut faster.
Accurate: The accurate cut of labels by using optronics sensor.
Varity shapes: The special technique of sharing platform can carry variety shapes of knife molds and replace mold quickly.

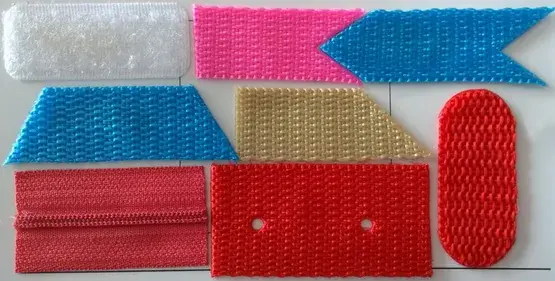

Multi-angle: By use of multi-angle cut function of straight knife, can cut many shapes as parallelogram, rhombic, trapezoid, etc.
Computerised: Automatic work and stop, the special fault self-diagnosis. Display directly the problems. Clear fault zone.
Storage: Memory all cuttings for your convenience.
Applications:
Suitable for Woven Belts, Velcro, Shoelace, Zipper, Webbings, Labels, Safety Belts, Lifting Slings, And Kinds of Leather Belts. etc.
Specifications:
Specifications
| Model | FX-2200 |
|---|---|
| Cutting Length | 25-99999 mm |
| Cutting Speed | 120 p/min |
| Max.Cutting Width | 100 mm |
| Max.Cutting Angle | 45 degree |
| Sound Frequency | 20K HZ |
| Recommended Pressure | 0.4-0.7 Mpa |
| Voltage | 110V/220V |
| Power Rating | 1.5 KW |
| Max. Power | 1.7 KW |
| Weight | 155 KGS |
| Packing Size | 700X610X1450 mm |
Product information, photographs and specifications: Foxsew. No prices or stock here: ask us and we will get back to you.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
