FOXSEW Long Arm Heavy Duty Zigzag Sewing Machine for Sail Makers and Repairs
Applications: boat sails, spinnakers, parasail, awnings, boat covers, upholstery, parachutes, shade sails, tent & marquees, tarpaulins and industrial safety products .

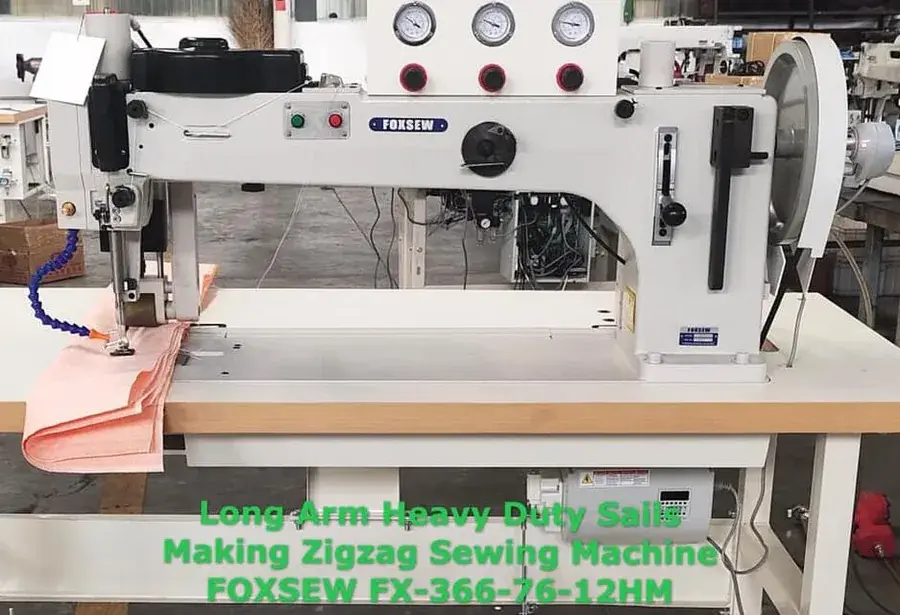

FOXSEW Long Arm Heavy Duty Sail Making Zigzag Sewing Machine
1. Cam controlled extra heavy duty long arm zigzag machine with large barrel shuttle hook and reverse.
2. Standard supplied with puller for strong and steady feeding, 3different cams suitable for straight stitch, 2step 3step and 4step zigzag, and pneumatic the presser foot lift and pneumatic back tack, needle cooler and hook cooler
3. The extra long arm clearance of 800mm is very useful when sewing larger items. A high foot lifter up to 20mm allows for heavy & bulky materials, such as sail tent and marquees and tarpaulins.
4. This is the improved version of Durkopp Alder 366-76-12-HM.

Long Arm Heavy Duty Zigzag Sewing Machine
1. It is excellent choice for modern sail loft , for straight and zigzag stitch operations in the production of large sails, storm sails, awnings, thick corner and heavy webbing reinforcement.
2. Standard supplied with puller for strong and steady feeding, 3different cams suitable for straight stitch, 2step, 3step and 4step zigzag, and pneumatic the presser foot lift and pneumatic back tack
3. The extra long arm clearance of 800mm is very useful when sewing larger items. A high foot lifter up to 20mm allows for heavy & bulky materials, such as sail tent and marquees and tarpaulins.
4.this machine comes with excellent price / performance ration especial for boat sails making and parachute repairing.

Specifications:
Specifications
| Model | FX-366-76-12HM |
|---|---|
| Max. Sewing Speed | 800 r.p.m |
| Stitch Length | 0-8 mm |
| Needle Type | DYX3 25# |
| Zigzag Width | 0-12 mm |
| Max Sewing Capacity | 10 mm |
| Needle bar stroke | 50.8 mm |
| Shuttle | KSP-204N |
| Working Space | 785x275mm |
Product information, photographs and specifications: Foxsew. No prices or stock here: ask us and we will get back to you.
