Foxsew

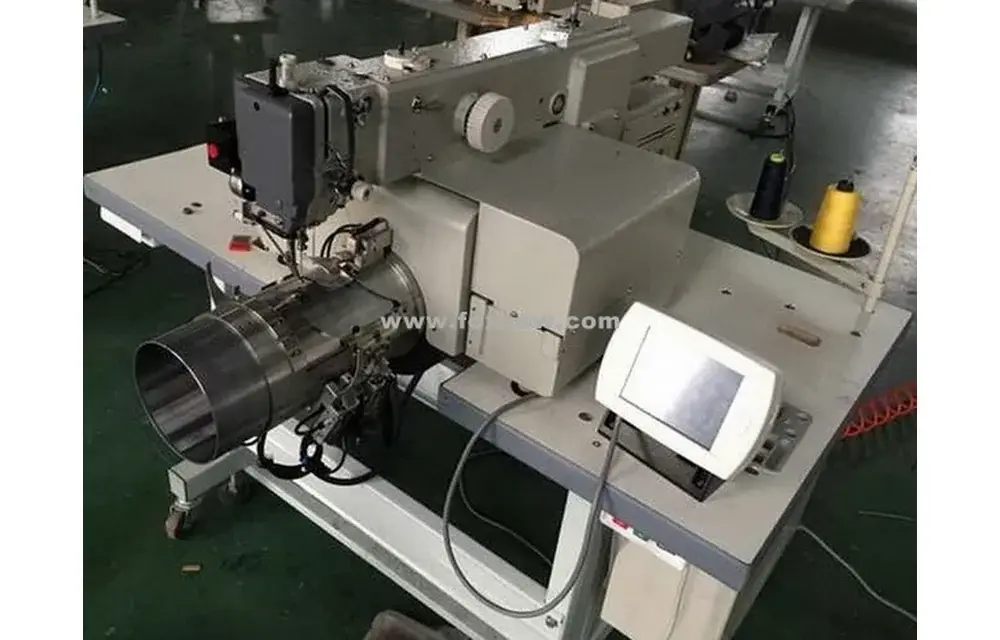

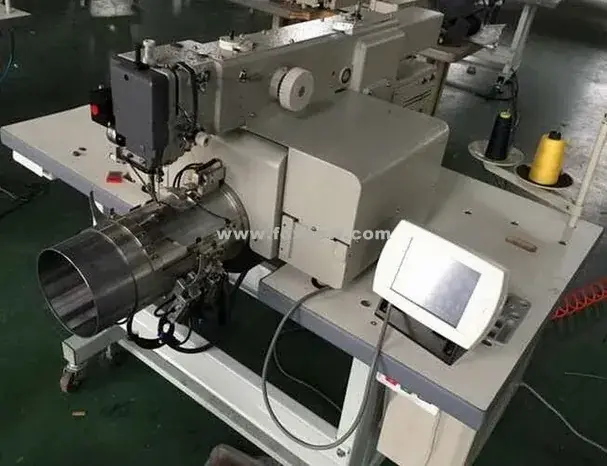

FX2516CV
Automatic Curve Visor Pattern Sewing Machine
Product features
1 / 6

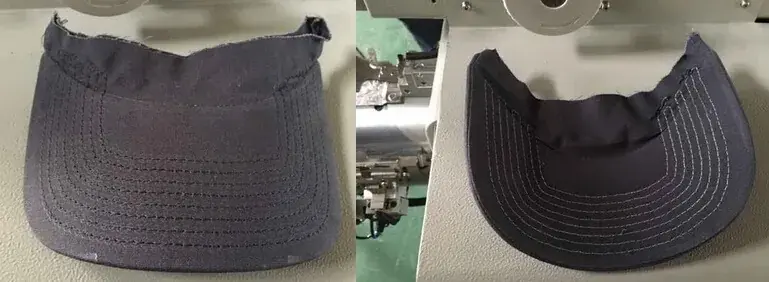

FOXSEW Automatic Curved Visor Pattern Sewing Machine for Baseball Caps Visors, Caps Visors, Visors.
This machine is special designed for customers requirements, it is used for sewing curve visors. FOXSEW invested a lot and spent enough energy to meet customers special requirements.
Characteristics:
Max. stitching speed is 2,500rpm. achieved high productivity with fast sewing speed and feeding speed;
Large rotating hook;
Liquid crystal touch operation pane;
Applying the same Mitsubishi controlling system;
Automatic thread trimmer;
Versatility of application.
Specification:
Specifications
| Model | FX2516CV |
|---|---|
| Sewing Area | 250 X 160 MM |
| Thread Size | Polyester Thread 0.3-1 mm |
| Rotating Hook | Large Rotating Hook |
| Thread Trimmer | Have |
| Stitch Length | 100 mm |
| Pattern Storage | Below 691 |
| Stepping Foot Lift | Max.18mm |
| Max. Stitches | 8000/Pattern |
| Work Holder Height | Standard 25mm (Max. 30mm) |
| Programmer | Build in Pattern Programmer |
| Driving Motor | Direct Drive Servo Motor |
| Needle | DP17X25 |
Product information, photographs and specifications: Foxsew. No prices or stock here: ask us and we will get back to you.
