Foxsew
FX2516M
Automatic Pattern Sewing Machine for Mops Head
Product features
1 / 6
FOXSEW Automatic Pattern Sewing Machine for Mops, Mops Head, Mops Head Packing.

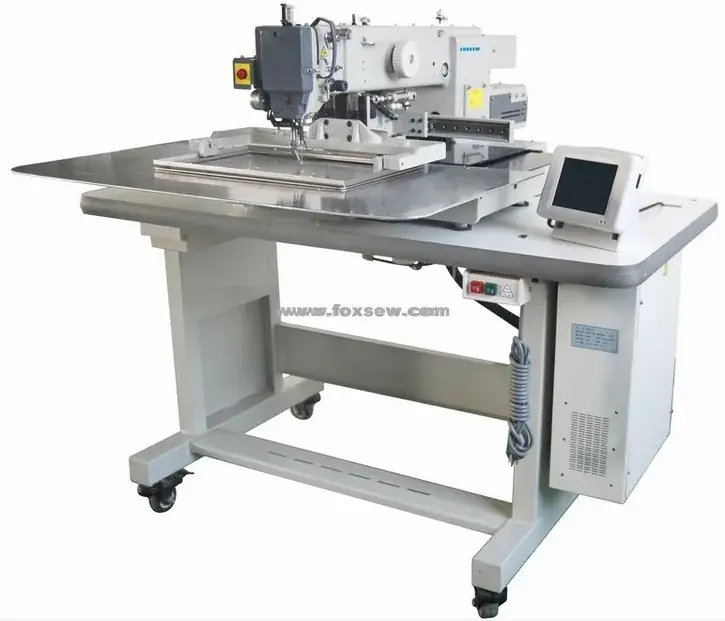

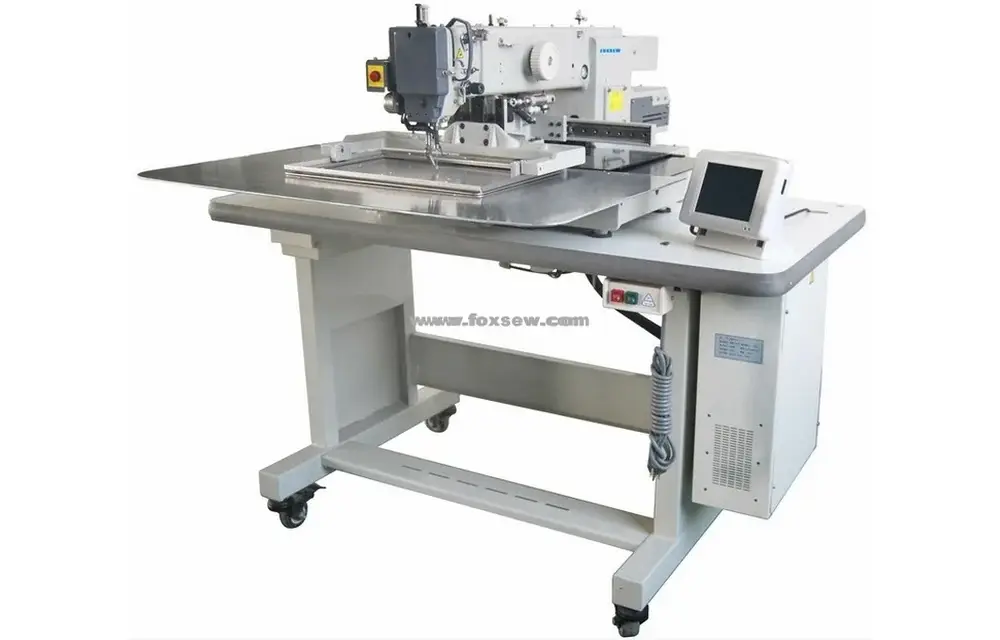

Automatic Mops Head Pattern Sewing Machine FOXSEW FX2516M
Applications: Car seats, Aero Seats, Boots, Shoes, Shoes Uppers, Footwear, Handbags, Furniture, Car upholstery, Saddles, Luggage, Suitcase, Backpacks, Leather Jackets, Leisure wears, Sportswear, Down clothes, Warm clothes, Jeans, Sofa, and attaching label, widely used for many different industries.
The machine is suitable for single color embroidery, pock attaching, decorative stitching, webbing stitching, label / badge attaching, shoe applications and many more special applications.
Characteristics:
Max. stitching speed is 2,500rpm. achieved high productivity with fast sewing speed and feeding speed;
Large rotating hook;
Liquid crystal touch operation pane;
Applying the same Mitsubishi controlling system;
Automatic thread trimmer;
Versatility of application.
Specification:
Specifications
| Model | FX2516M |
|---|---|
| Sewing Area | 250 X 160 MM |
| Thread Size | Polyester Thread 0.3-1 mm |
| Rotating Hook | Large Rotating Hook |
| Thread Trimmer | Have |
| Stitch Length | 100 mm |
| Pattern Storage | Below 691 |

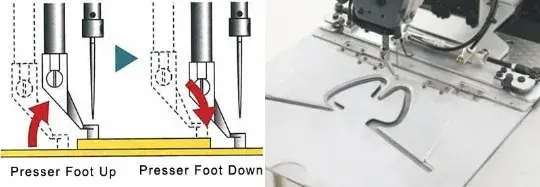

| Stepping Foot Lift | Max.18mm |
| Max. Stitches | 8000/Pattern |
| Work Holder Height | Standard 25mm (Max. 30mm) |
| Programmer | Build in Pattern Programmer |
| Driving Motor | Direct Drive Servo Motor |
| Needle | DP17X25 |
Product information, photographs and specifications: Foxsew. No prices or stock here: ask us and we will get back to you.
