Foxsew
FX2010G-DHE
Automatic Elastic Joining Sewing Machine with Double Heads
Product features

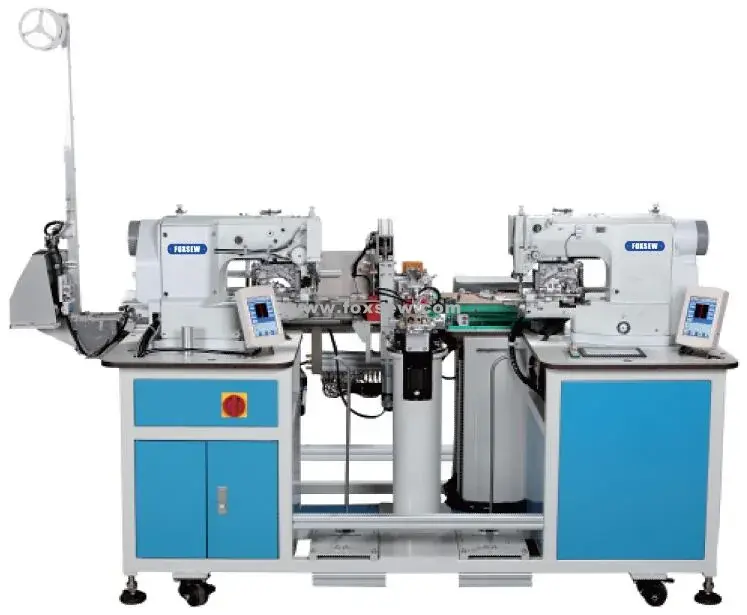

Double Heads Automatic Elastic Bands Joint Sewing Machine Unit
FOXSEW Double Position Elastic Joining Machine realizes full automatic operation including automatic selection,
automatic cut, automatic joining, automatic collection and automatic mark.
One operator is able to operate multi machines,1 machine can process 7000-8000 elastics per 8 hours.
Joining method: Flat joining and overlap joining.
Joining Length: 120mm-999mm Width :10mm-60mm
Feeding wheel: Use needle wheel material selection method, make sure the error of length is inside 1mm.
Mental detecting method: the machine will cut automatically when encounter mental joint in cycling operation
Cutting Device: Using leading ultra-sonic device inside China to enable neat cutting.
Edge stitching: It will correct the deviation at the joining place to realize perfect stitch.
Specifications:
Specifications
| Model NO.: | FX2010G-DHE |
|---|---|
| Sewing Speed: | 2700 r.p.m |
| Machine's Sewing Area: | 100x70 mm |
| Stitch Length: | 0.05-12.7 mm |
| Presser foot lift: | 25 mm |
| Power: | 550W Servo Motor |
Product information, photographs and specifications: Foxsew. No prices or stock here: ask us and we will get back to you.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
