Foxsew
FX430G-BL

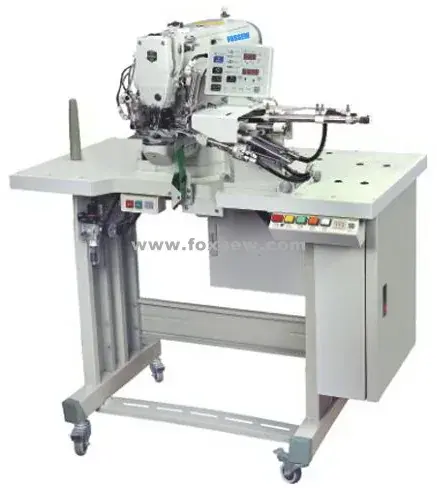

Automatic Belt Loop Attaching Sewing Machine
Product features
FOXSEW Automatic Belt Loop Attaching Sewing Machine Single Needle

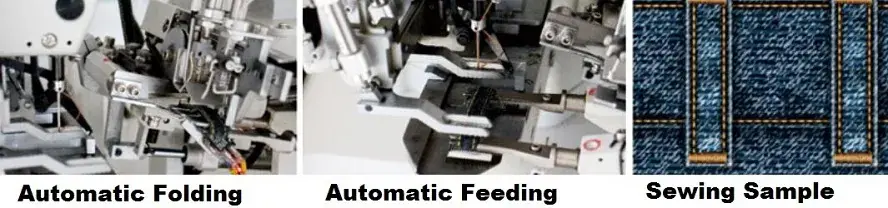

This machine is a new type of machine that is specified with automatic belt loop cutting, curving, bartacking and folding devices in one-operation with high efficiency and high precision.
Under the condition of 8-hour operation daily, 5 belt loops for each pair of trousers and 36-time needle handling, each piece of equipment person is able to process 1000 pairs. As the machine is installed with high-speed lockstitch sewing nose, it is suitable for all kinds of belt loops. The collocated airflow magnet valve and oil-free cylinder could prevent noise and oil contamination. Automatic device carries the belt loop to under the needle, thus away from worrying about hand infibulations and hence safe operation.
Specifications:
Specifications
| Model NO.: | FX430G-BL |
|---|---|
| Max. Sewing Speed: | 2700 r.p.m |
| Sewing Area: | Length: 42-80mm, Width: 10-20mm |
| Stitch Length: | 0-13 mm |
| Presser Foot Lift: | 21 mm |
| Weight: | 125 KGS |
| Hook: | Large Shuttle Hook |
