Product features
1 / 4

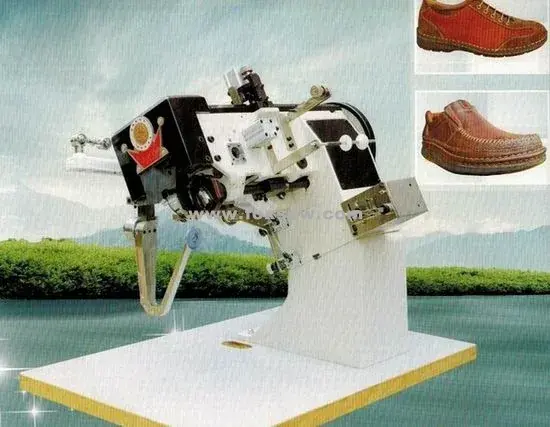

FOXSEW Outsole Stitching Machine is suitable for rectangular sewing beach shoes and top grade leisure shoes.
Curved needle sewing machine for stitching shoes uppers directly onto the bottom sole. It is for making sandals and slippers.
Application:for sew upper and sole together of beach shoe and high range leisure shoes. Presser foot and advanced needle agencies by pneumatic system to control realization. All parts were manufactured by HAAS CNC machines, high precision machining parts. Using electronic speed motor speed can be flexible, stop the needle position by computer control.
Specifications:
Specifications
| Sewing Speed | Stepless Speed Regulating |
|---|---|
| Stitch Length | 6-10 mm |
| Sewing Thickness | 4 mm |
| Sewing Thread | Woven Wire (1-1.2mm) |
| Sewing Needle | DY-100 (200#300#) |
| Motor | 750W 220V Single-Phase 50/60HZ; 380V 3-Phase 50/60HZ |
| Net/Gross Weight | 176KGS/250KGS |
| Packing Size | 103*78*167 CM |
Product information, photographs and specifications: Foxsew. No prices or stock here: ask us and we will get back to you.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
