Consew 29B
Single Needle with large bobbin, 12" Cylinder Arm, Shoe Repair and Mending, Lockstitch Machine
Product features
1 / 8

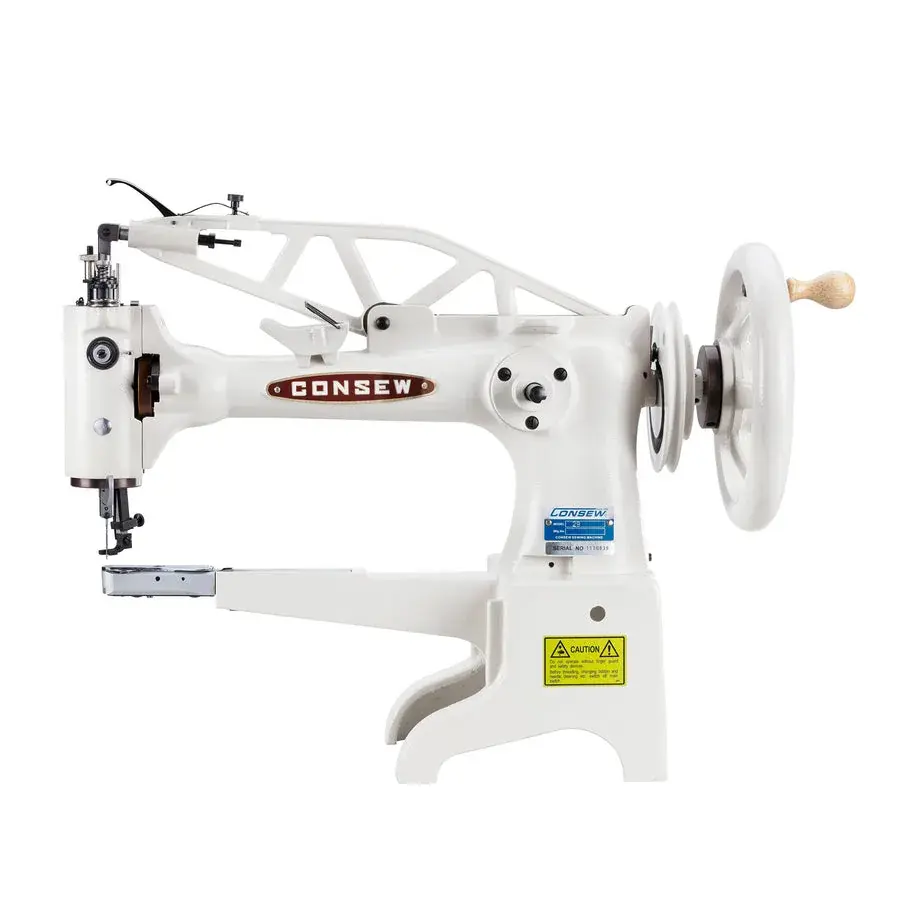

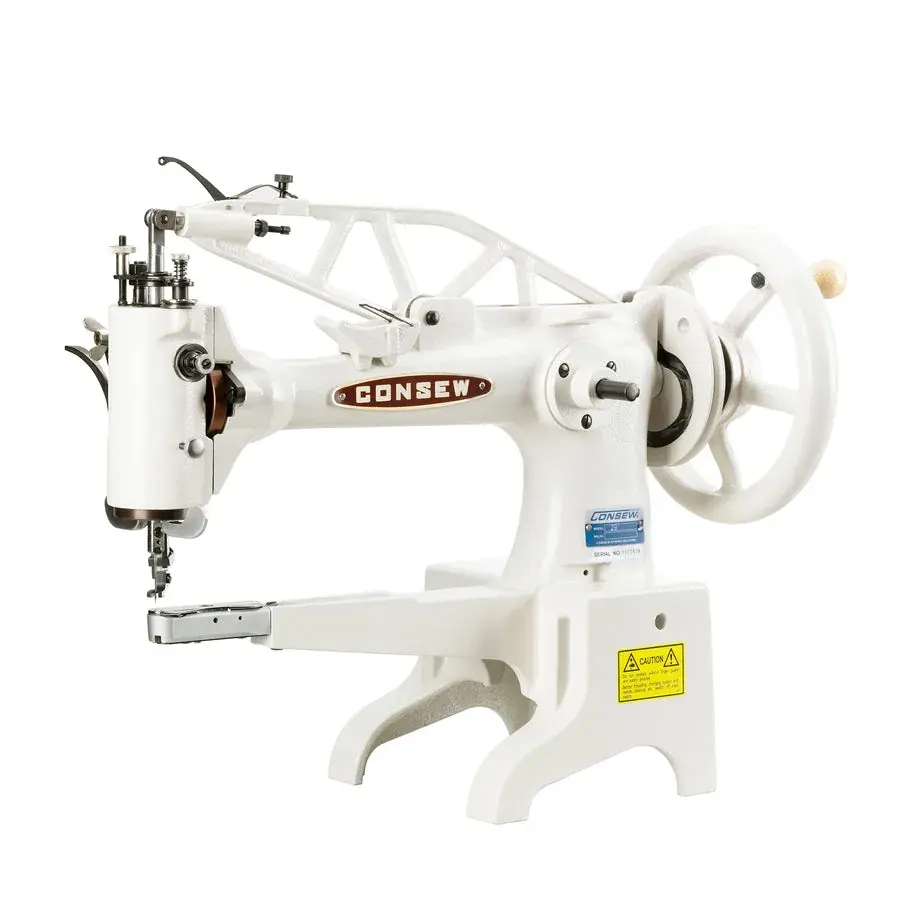

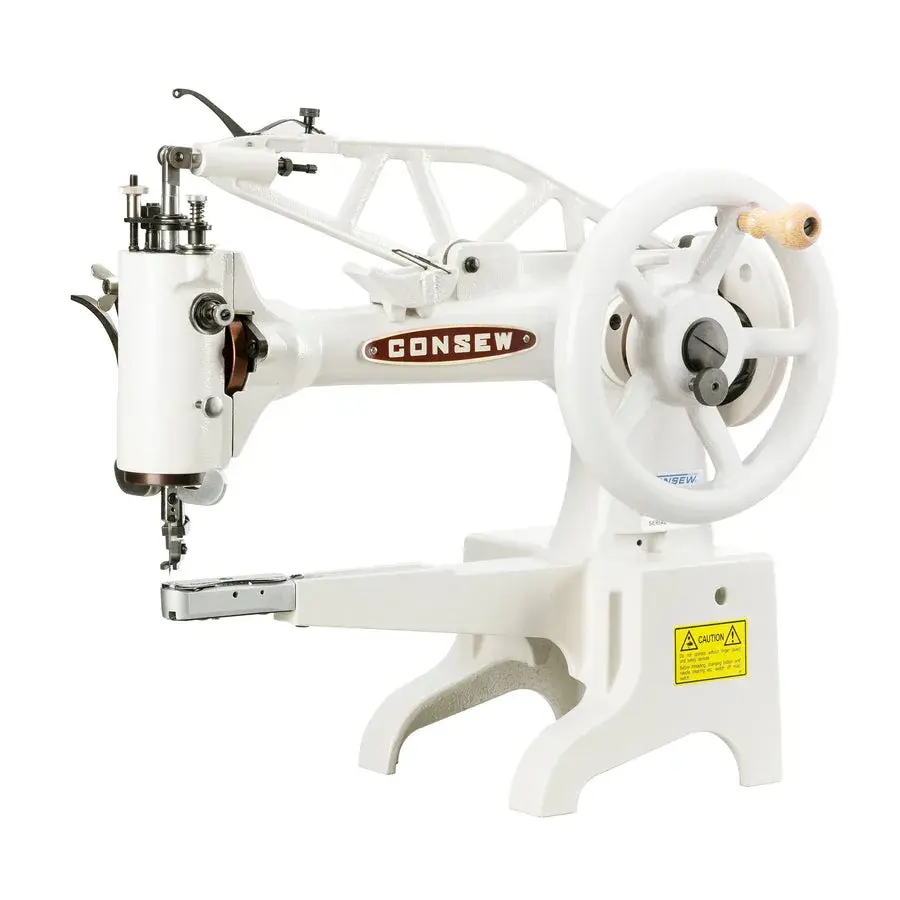

Single Needle with large bobbin, 12" Cylinder Arm, Shoe Repair and Mending, Lockstitch Machine
With : Oscillating Shuttle, Extra Small Cylinder Bed, Universal Upper Feed, Double Ended Needle Plate
Applications
Repairing leather materials and shoe uppers
Features
Extra Small Cylinder Bed : Ideal for precise and detailed work

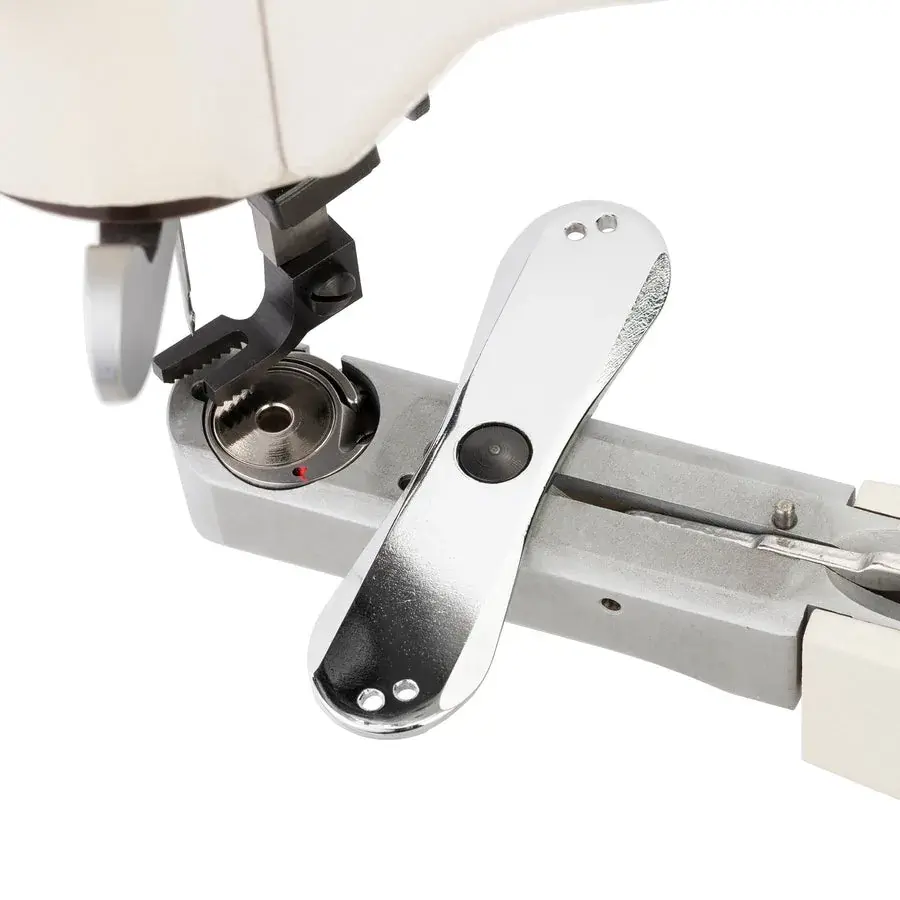

Oscillating Shuttle : Promotes smooth and efficient stitching

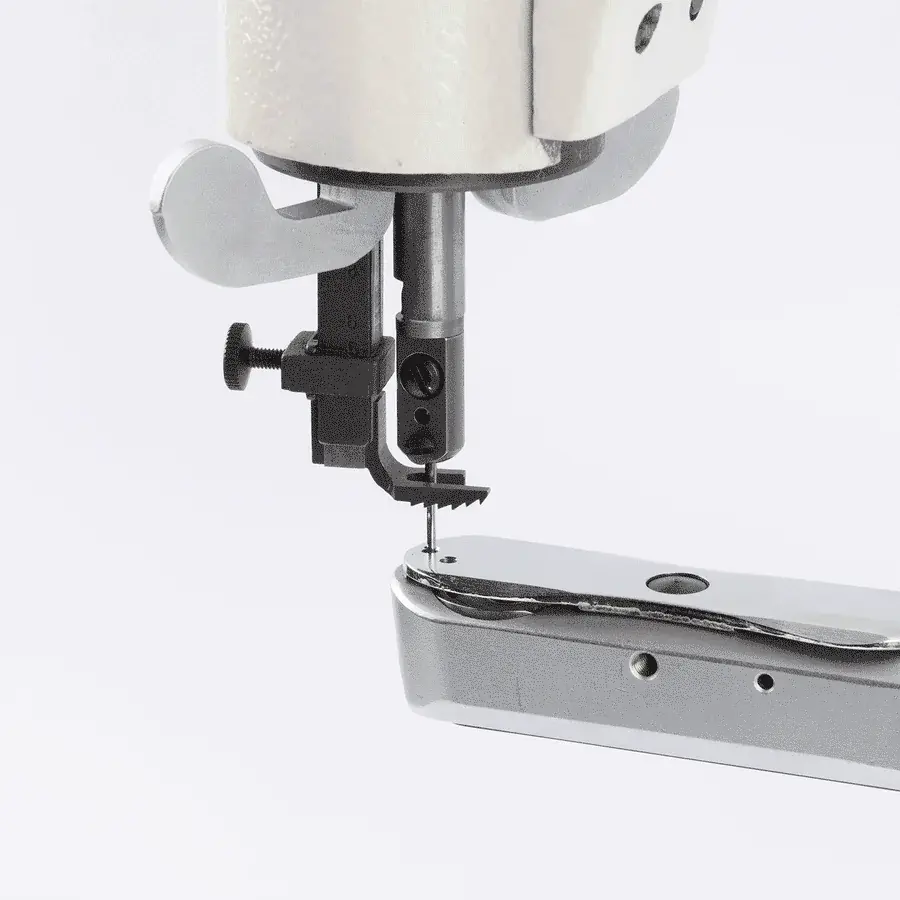

Universal Upper Feed : Allows stitching in any direction without needing to turn the work

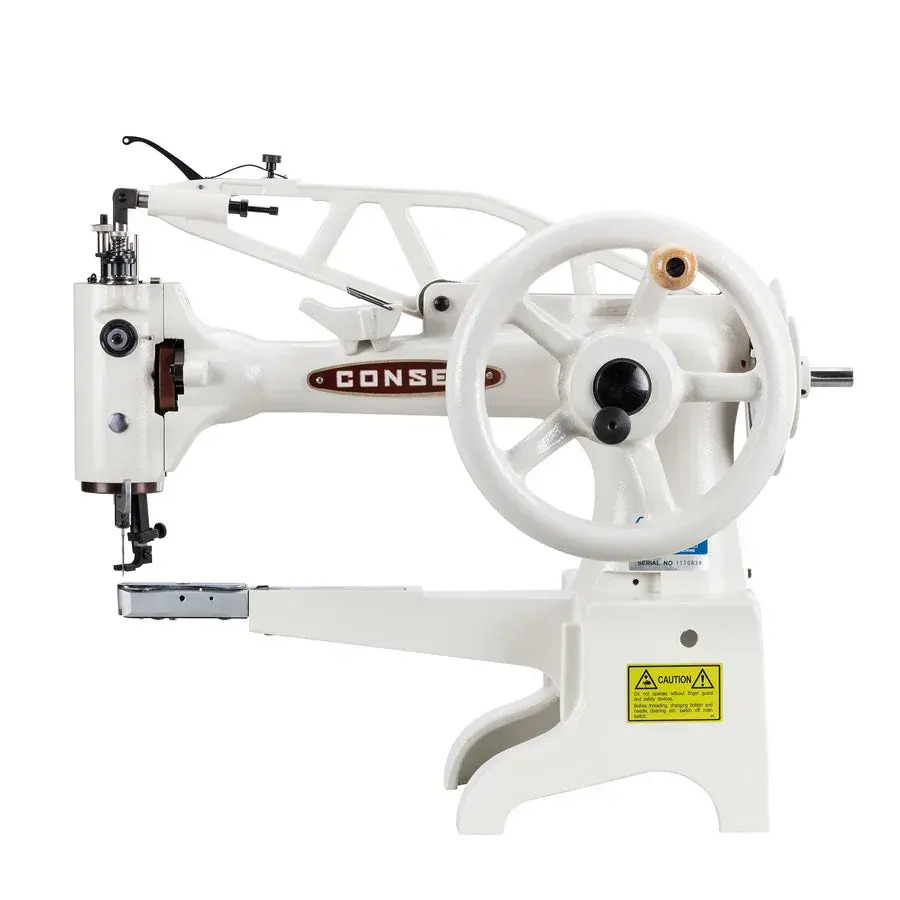

Handwheel Mounting : Can be positioned on the front or right end of the machine for flexibility

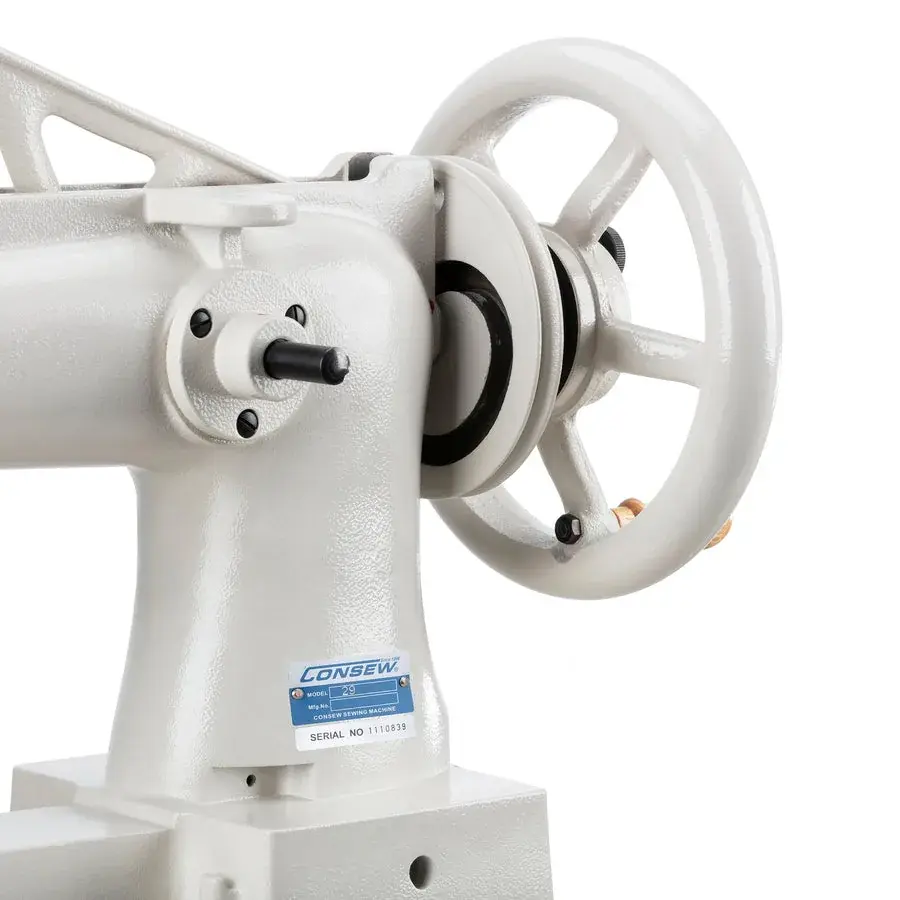

Wheel Pulley "V" Groove : Facilitates motor drive efficiency

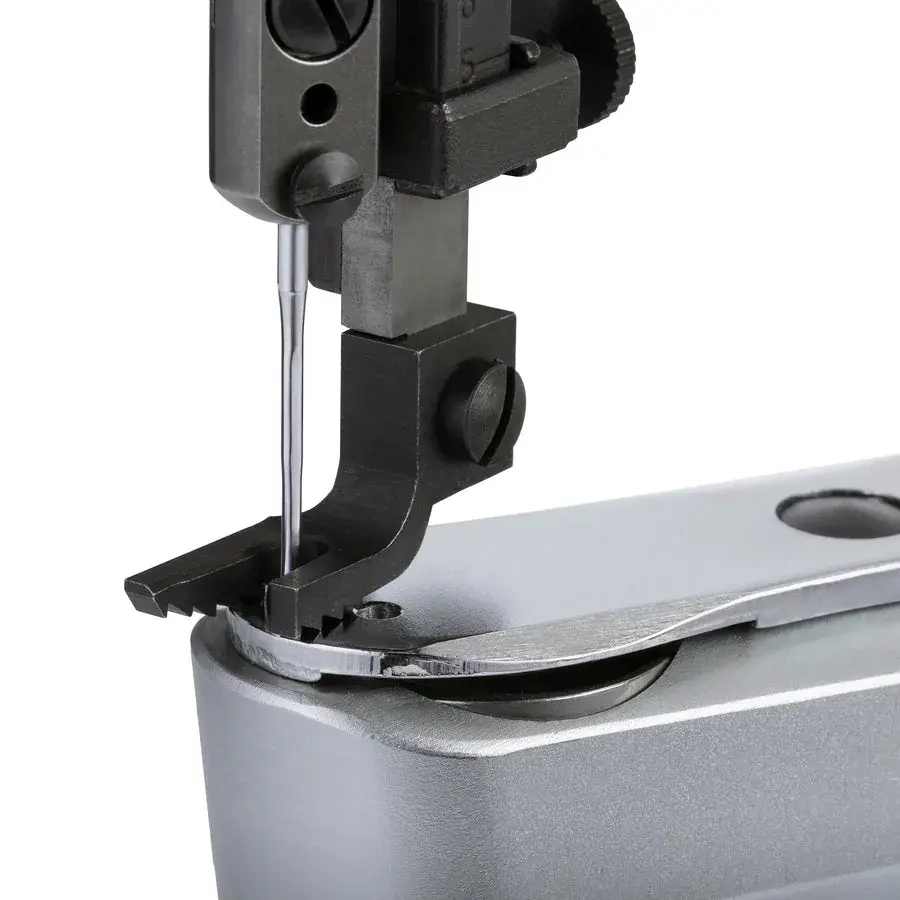

Double Ended Needle Plate : Accommodates various needle sizes with holes at the back end
Adjustable Thread Take-up Lever : Enables fine control over thread tension
Adjustable Presser Foot Pressure : Customizable to handle different material thicknesses
Drive Options : Machine can be driven by foot treadle, hand crank, or electric motor
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Universal |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 500 |
| Clearance Under Presser Foot | 13/32 s.p.i. (10.5mm) |
| Stitch Length | 3.5 s.p.i. (1-7mm) |
| Hook Size | Large |
| Work Space | 12" (310mm) |
| Width of Cylinder Bed | 1 5/32" (27.8mm) |
| Needle | 29X3 (older machines) or 135X17 (newer machines) |
| Depth of Cylinder Bed | 1 3/32" (29.4mm) |
| Net Weight | 62 lbs. (28kgs) |
Catalogue
The Consew 29B documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
