Consew

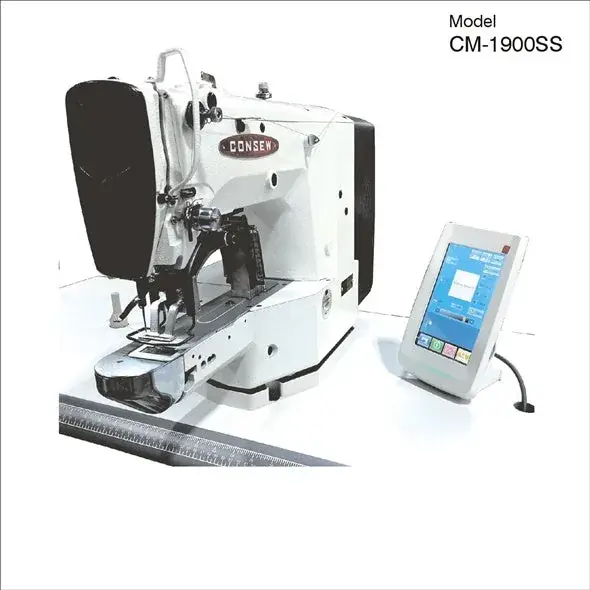

Consew CM-1900SS
Fully Automatic, Direct Drive, Computer Controlled, Single Needle, Bartacking Machine
Product features
1 / 3
Fully Automatic, Direct Drive, Computer Controlled, Single Needle, Bartacking Machine
With: Programmable sewing patterns; Large internal pattern storage; USB port for additional pattern storage; LED needle light
Model CM-1900SS: for standard material

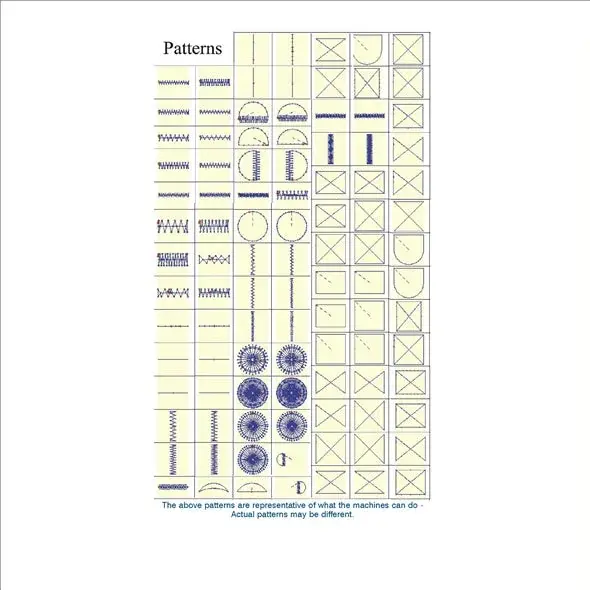

With : 30mm x 40mm sew field; 100 Preset sewing patterns; Sewing Area: 30mm (W) × 40mm (L)
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Workspace | Standard Workspace |
| Standard or Full Function | [Not specified] |
| Stitch Type | [Not specified] |
| Speed (Max S.P.M.) | 3000 |
| Max Stitch Length | 0.1 ~ 12.7mm |
| Needle Bar Stroke | [Not specified] |
| Needle Used | DPX17 (standard), DPX5 (optional) |
| Number of Stitches | [Not specified] |
| Looper | B-372-213 |
| Clearance Under Foot | 33/64" (13mm), 17mm with reverse-rotation needle-up function |
| Power | 220V (110V converter available as an option) |
Catalogue
The Consew CM-1900SS documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
