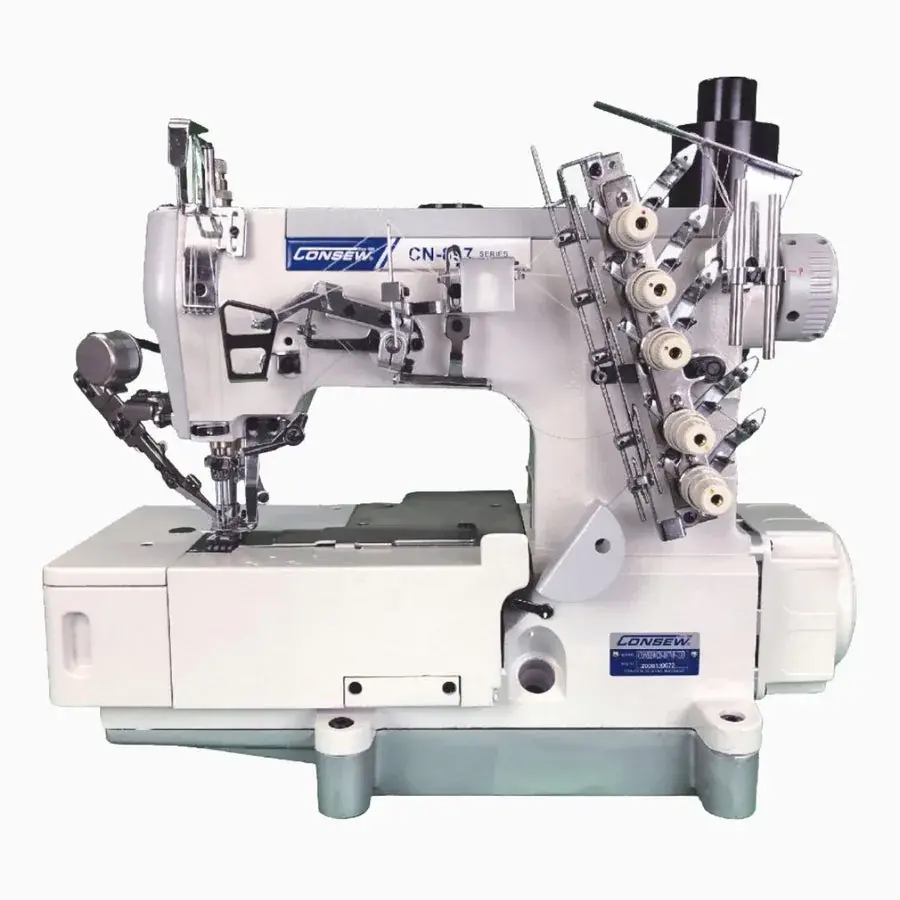

Consew CN897VFB-7DD
The CN897VFB-7DD is a flat-bed coverstitch machine with direct drive, specifically configured for binding applications.
Product features
The CN897VFB-7DD is a flat-bed coverstitch machine with direct drive, specifically configured for binding applications. With its high-speed performance, advanced lubrication system, and optional automation attachments, it ensures consistent results across a range of light to heavy-weight fabrics.
Applications
Binding on flat garments
Bottom hemming
Elastic insertion
Coverstitching for uniform and performance clothing
Features
Flat-bed design with built-in direct drive motor
Electronic stitch length control
Push-button thread regulator
Fully automated lubrication and oil cooling system
Micrometric differential feed (1:0.7 ~ 1:2.0)
Thread and needle cooling using silicone
Available options for thread trimming and tape cutting
Quiet operation for continuous use
Standard UY128GAS needle compatibility
Configurations
2 needles / 2 loopers / 4 threads
3 needles / 2 loopers / 5 threads
Specifications
| Max Sewing Speed | 6,000 S.P.M. |
|---|---|
| Lift of Presser Foot | 7.0 mm |
| Differential Ratio | 1:0.7 ~ 1:2.0 |
| Stitch Length | 1.4 ~ 3.6 mm |
| Needle Bar Stroke | 31 mm |
| Standard Needle Gauge (3 needles) | 5.6 mm |
| 2 needles | 3.2, 4.0, 4.8, 5.6, 6.4 mm |
| 3 needles | 5.6, 6.4 mm |
| Needle System | UY128GAS |
