Product features
1 / 8

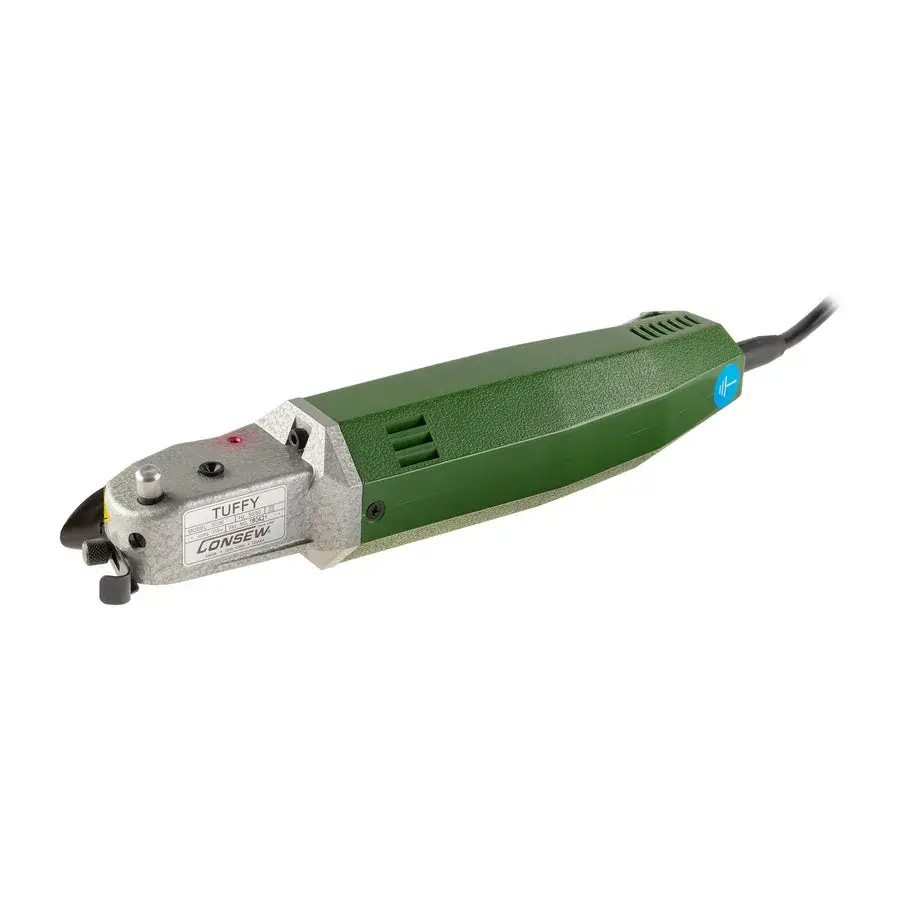

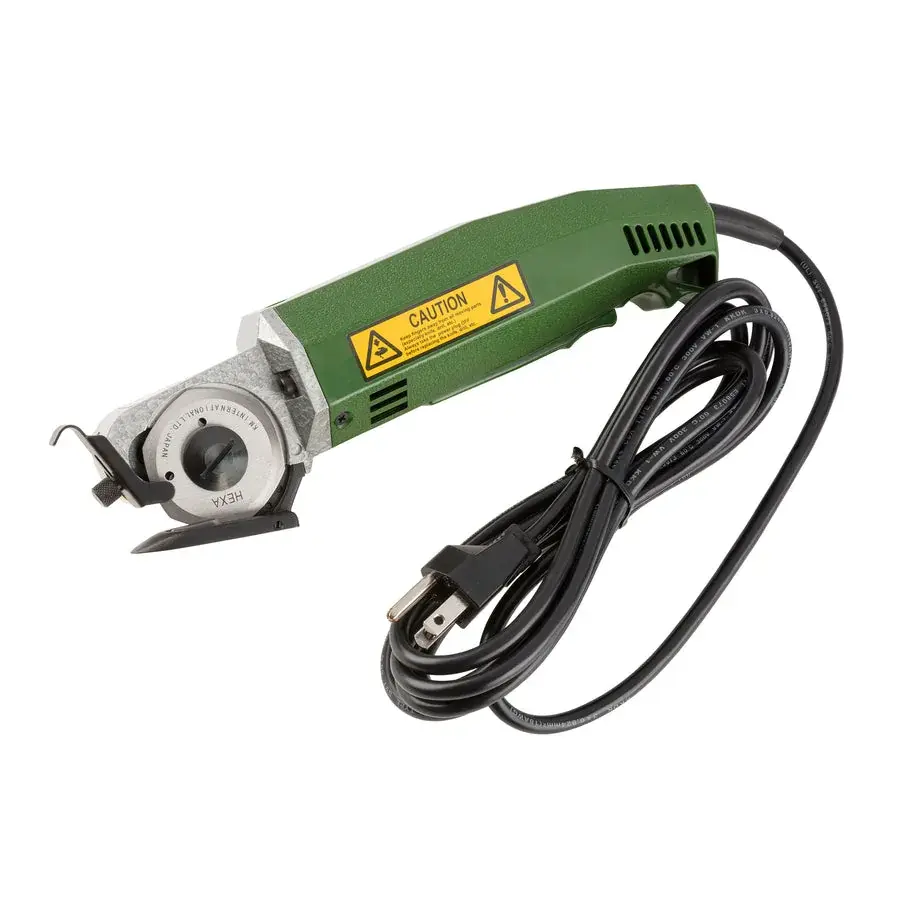

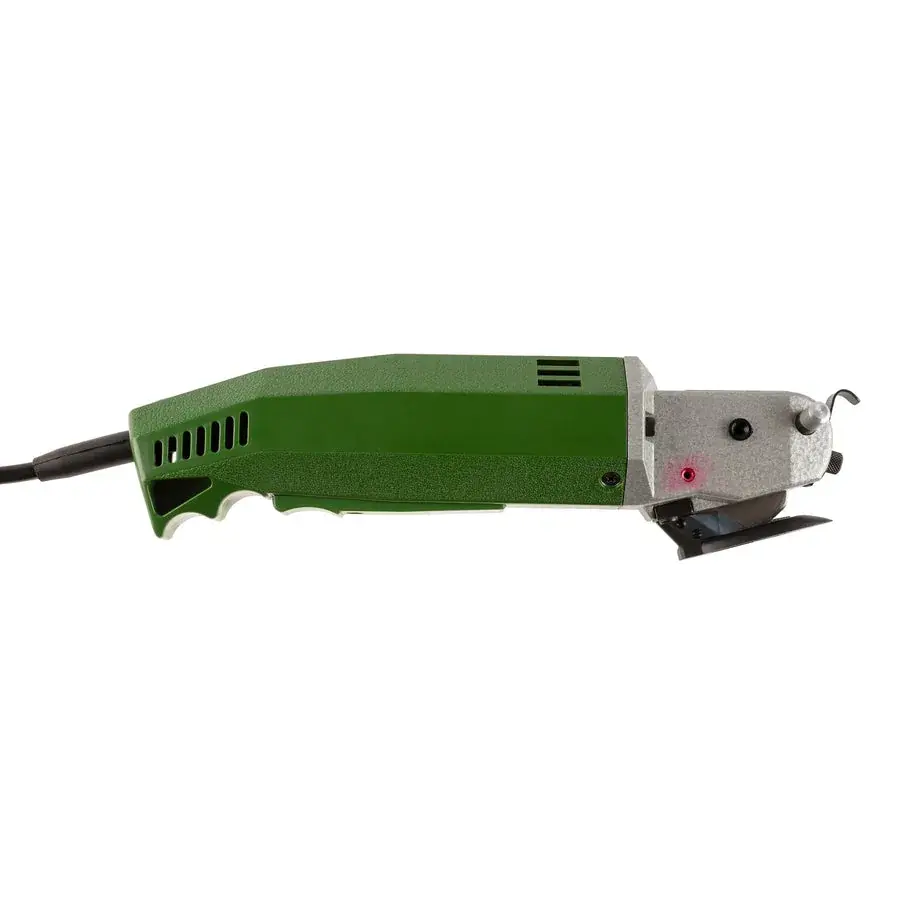

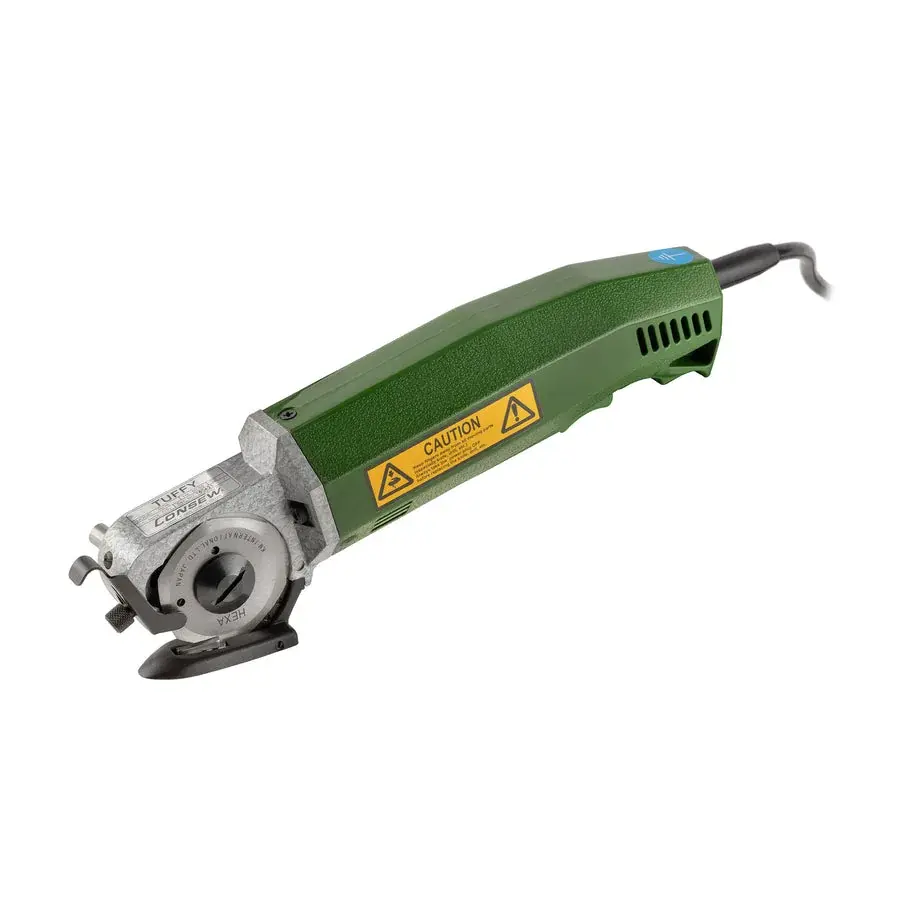

Portable Electric Rotary Shear (2” Hexagonal Blade). Model 503K is a lightweight yet powerful rotary shear (scissor action) that lets you cut fabric with incredible speed. It comes with built-in sharpener and safety features. The 503K is excellent for narrow curves and sharp corners. For cutting single and low lays of material. Used for slitting and trimming knitted fabrics when base plate is removed.
Applications
Cutting fabric with incredible speed
Excellent for narrow curves and sharp corners
Cutting single and low lays of material
Slitting and trimming knitted fabrics when base plate is removed
Features
Lightweight and powerful
Grip-style switch bar automatically stops when not pressed
Fast, accurate scissor action cuts ensured by carbide blade
No fusing or "pull in" of materials
6-sided high-speed steel blade, easy to change and longer-lasting
Removable base plate allows "off the table" operations such as slitting
Impact-resistant casing
Shock protection, double insulated against electrical shock
Shielded ball bearings require no lubrication or servicing and ensure free and quiet operation
Built-in sharpener
Specifications
| Blade Size | 2" (50mm) |
|---|---|
| Blade Type | Hexagonal Knife |
| Cutting Depth, Max. | 9/32" (7.2mm) |
| Weight | 19oz (540gr) |
| Electrical Motor | 110 volts AC - 50 Watt (220 volts available special order) |
| Electrical Connection | 6 1/2-foot line cord with standard plug |
Catalogue
The Consew 503K documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
Other handheld rotary models
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
