Magnum Punch Perforator
Drill and marking
Product features
1 / 2

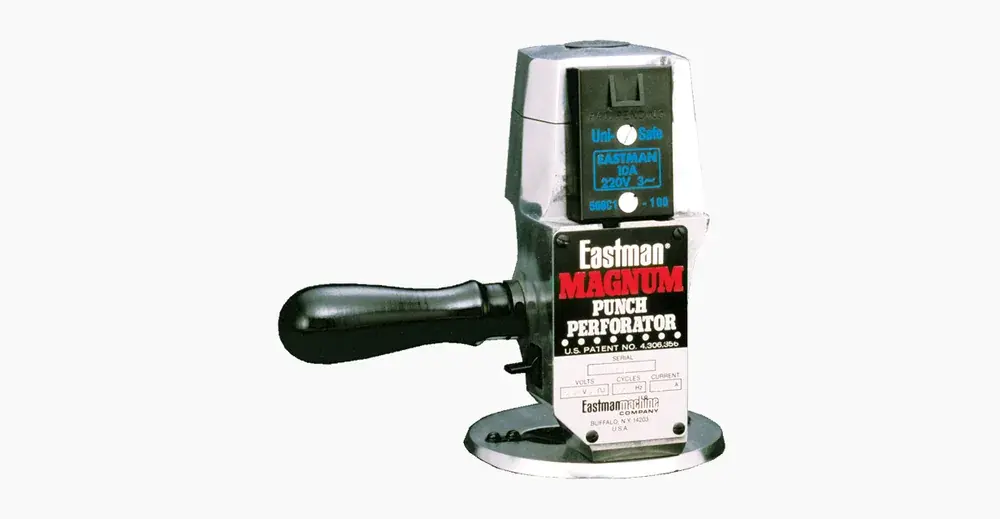

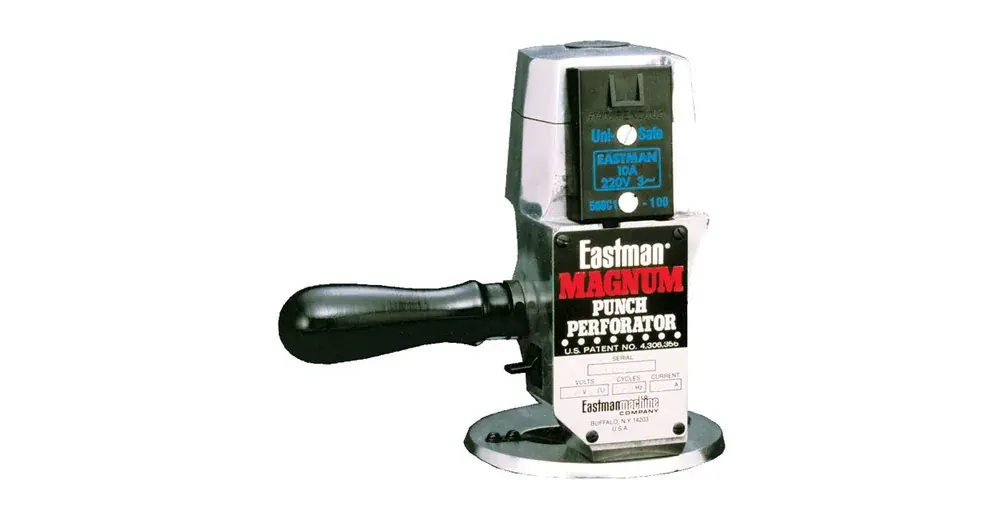

MODEL MP2 – The Eastman Magnum Punch Perforator cuts four clean holes per inch (2.54 cm) through up to five thicknesses of paper. Punching strength is easily adjusted to accommodate various needs.
Punching strength is easily adjusted to accommodate various needs; a single switch allows the operator to free wheel without punching, single or continuous punch mode.
Cuts four clean holes per inch (2.54cm) through up to five thicknesses of paper
Punching strength is adjustable to accommodate various needs
Single switch allows the operator to free wheel without punching, single or continuous punch mode
Available in three punch sizes
Full line of pattern powder available in various colors to suit any type of pattern fabric
Specifications
| Motors | 110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60Hz |
|---|---|
| Weight | 8 lbs. (3.63 kg) |
| Standard Features | Single punch trigger |
| Mark Diameter | English Metric 1/16in. 1.59mm 3/32 in. 2.38mm 1/8 in. 3.18mm |
Product information, photographs and specifications: Eastman Machine. No prices or stock here: ask us and we will get back to you.
