Eastman Machine
Rewinder, Floor Mount
Material rewinder
Product features
Eastman’s series of material rewinders manage long-cut pieces with ease and streamline material handling operations after cutting. Available in floor or table mount configuration.
Eastman Material Rewinder works in synchronization with the conveyor cutting system as a means of managing long or cumbersome cut pieces. As cut pieces approach the node the operator pauses cutting to initiate rewinding on the core. Waste material continues moving along the system and drops into a collection bin.

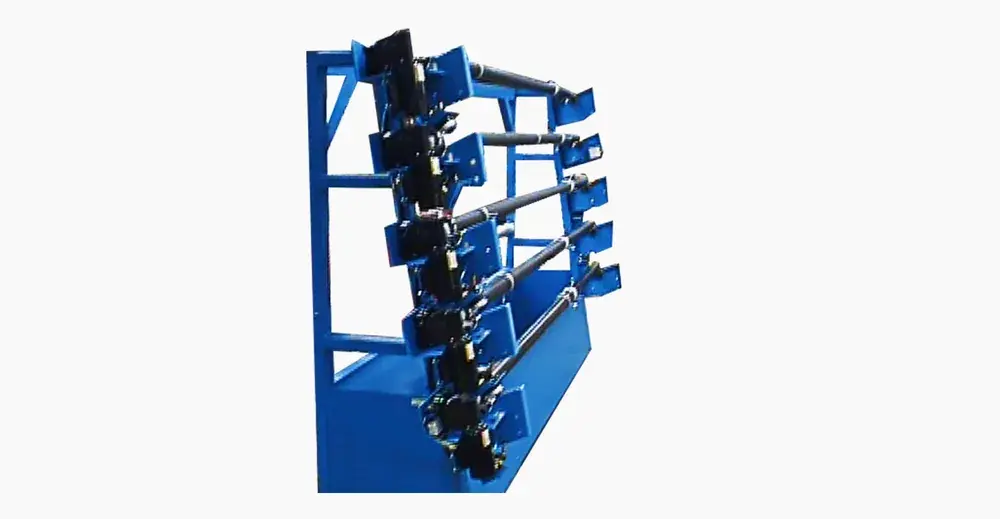

The floor-mounted Material Rewinder is stationary at the take-off end of the conveyor and ideal for companies looking to minimize equipment footprint.
Located at the take-off end of the conveyor system
Available in single or multiple node configurations
Pneumatic clutch control
Holds up to 100lbs (45.4kg) per bar
Quick change core shafts
Optional reverse winding
Specifications
| Width | up to 180 inches (34.57m) |
|---|---|
| Maximum Rewind Speed | 11 inches / second (28 cm / second) |
| Horsepower | 1/4hp |
| Power Requirements | 110V, 1ph, 3 amps (per node); 220V, 1ph, 2 amps (per node) |
| Maximum Diameter (per node) | 12 inches (30.5cm) |
| Maximum Weight (per node) | 100 lbs (45.4 kg) |
