Product features
1 / 2

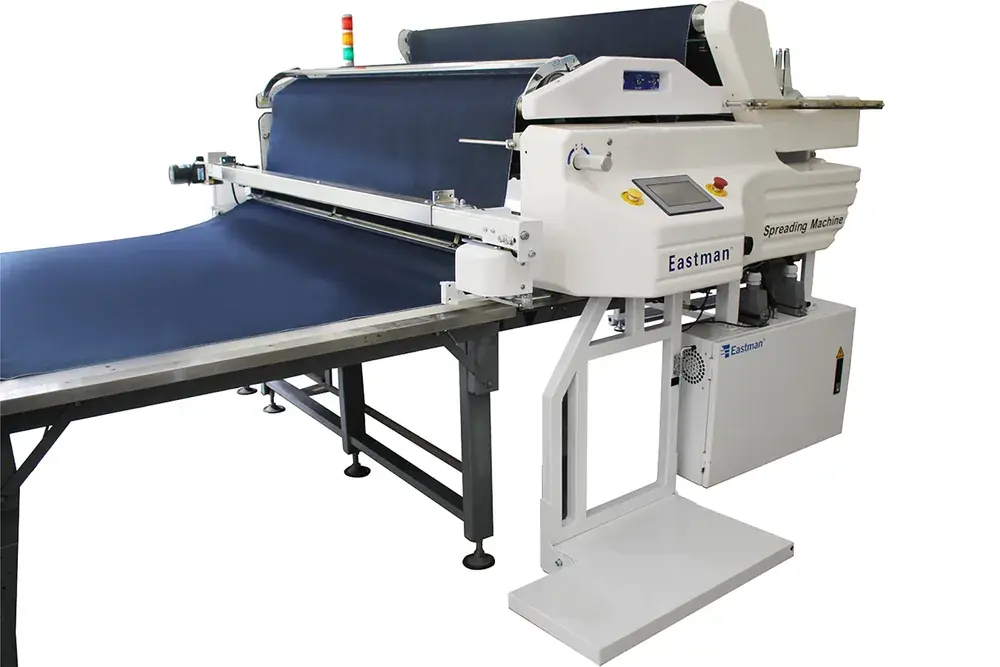

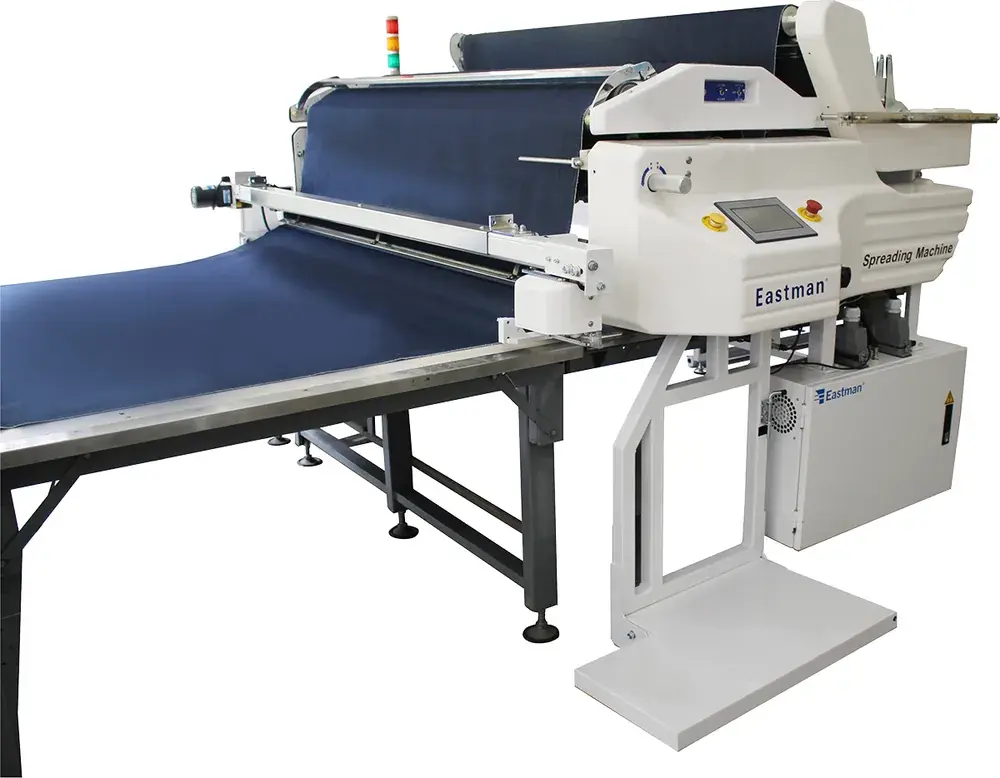

The Eastman ES-980 Series Spreading System is a dedicated system for woven fabrics and offers multiple functions for fast and easy spreading heights up to 7.9 in. (20 cm). It comes equipped with a spiral and static roller.
Standard Features
Easy-to-operate LCD touch screen interface
Auto edge alignment
Auto up & down control
Two catcher for dual way spreading
Auto cutting control
Emergency stop control
Auto material feeding
Foldable rider platform
Material setting memory
New Features
New generation Mitsubishi MELSEC iQ-F serial FX5U PLC, enhanced architecture with improved performance
Synchronized duo-servo motor control system for machine movement and material feeding enables efficient, stable and accurate spreading
Available Options
IoT multi-function intelligent operation screen with remote production reporting (WiFi required)
Flatfold attachment: aluminum or wooden
Static eliminator
Timing belt and encoder gear system
Special cloth exhaust bar
Auto-tension spreading function
Overhead mast
Specifications
| Spreading Width - Max | ES-980/6 ft. – 63 in. (1600 mm), ES-980/7 ft. – 74.8 in. (1900 mm), ES-980/8 ft. – 86.6 in. (2200 mm), ES-980/9 ft. – 98.4 in. (2500 mm), ES-980/10 ft. – 110.2 in. (2800 mm), ES-980/11 ft. – 122.1 in. (3100 mm), ES-980/12 ft. – 133.9 in. (3400 mm) |
|---|---|
| Table Width | ES-980/6 ft. – 72.4 in. (1838 mm), ES-980/7 ft. – 84.2 in. (2138 mm), ES-980/8 ft. – 96 in. (2438 mm), ES-980/9 ft. – 108.2 in. (2749 mm), ES-980/10 ft. – 120.0 in. (3054 mm), ES-980/11 ft. – 132.2 in. (3359 mm), ES-980/12 ft. – 144.3 in. (3664 mm) |
| Spreading Speed | 318ft./min. (97m/min.) |
| Maximum Spread Height | 7.9 in. (20 cm) |
| Pass through Height | 9 in. (23cm) |
| Spread Length Accuracy | +/- 0.12 in. (+/- 3mm) |
| Edge Alignment Accuracy | +/- 0.08 in. (+/- 2mm) |
| Roll Diameter - Maximum | 20 in. (50 cm) |
| Roll Weight Capacity | 265 lbs. (120kg) |
