Eastman Machine
SLS3 Stack Labeler
Cutting system option
Product features
1 / 2

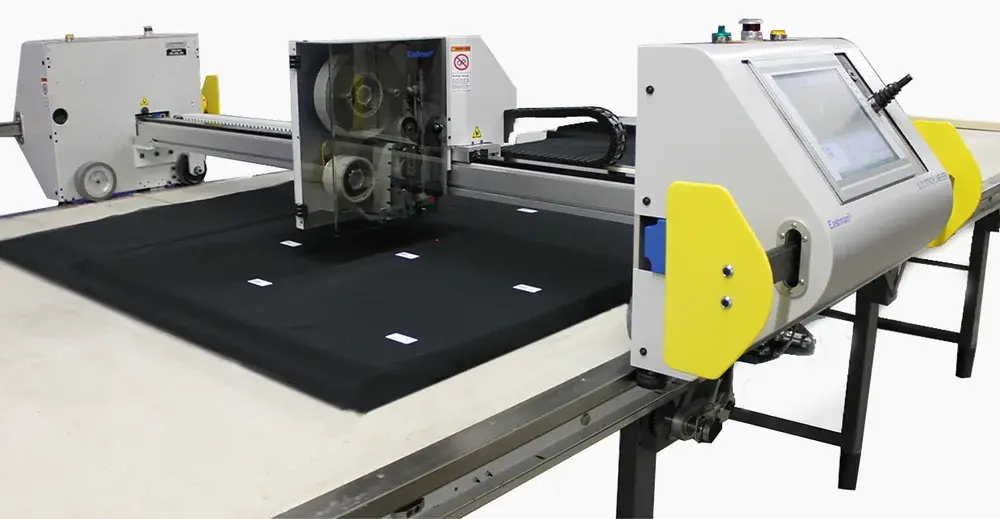

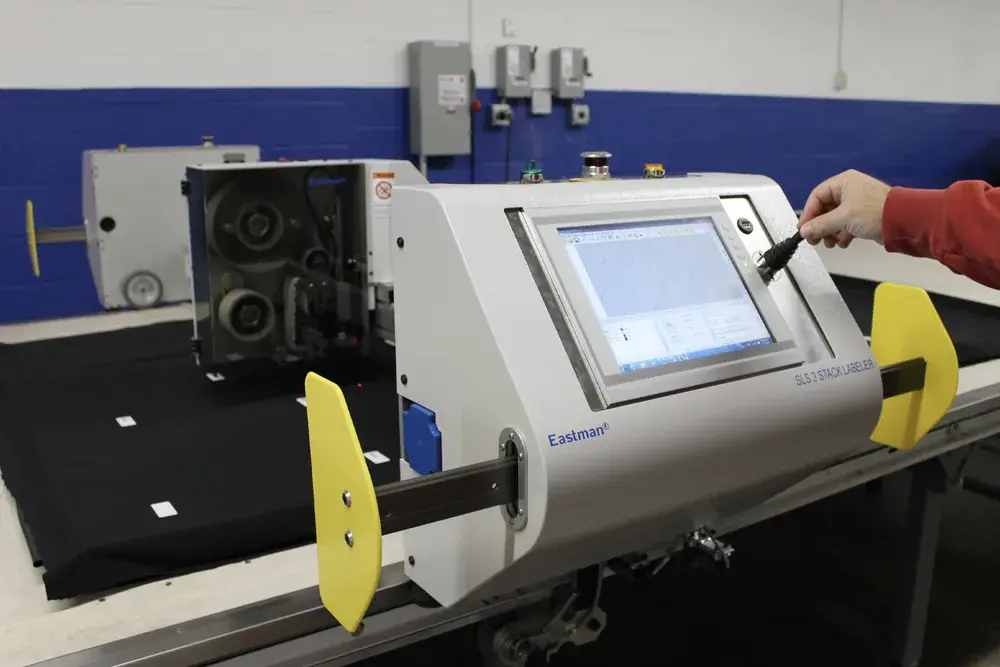

The Eastman SLS3 stack labeler fully automates the labeling process, reducing time, labor, and costly operator errors.
The Eastman SLS3 stack labeler fully automates the labeling process, reduces time, labor and eliminates costly errors that can occur with manual labeling. The SLS3 operates on all standard spreading tables and can interface with any CAD system.
The SLS3 replaces large paper patterns or markers used for identification purposes with small, adhesive labels. Accurately print and affix pattern labels to the top layer of fabric stacks up to 4 inches (10.16cm) high. The stacks are then ready to move to a high-ply cutting system where they are cut and bundled.
Prints and applies labels in one step
Thermal print head
Adjustable speed control
Standard label sizes: 1 in. x 2 in. or 1.25 in. x 0.5 in.
Supports numbers 0-9; characters A-Z; +/-/./$/% and SPACE
One of seven available barcode types may be selected (standard is CODE39)
Accommodates 9 information fields in various font sizes
Operates on all standard spreading tables
Specifications
| Width | Up to 126 inches (3.20m) |
|---|---|
| Drive System | Brushless Servo Motors |
| Maximum label stack height | 4 inches (10.16 cm) |
| Power (System Drive) | 220V, 1 ph, 20 amps |
Catalogue
The SLS3 Stack Labeler documents Eastman Machine publishes, on their own site. They open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Eastman Machine. No prices or stock here: ask us and we will get back to you.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
