Fischbein

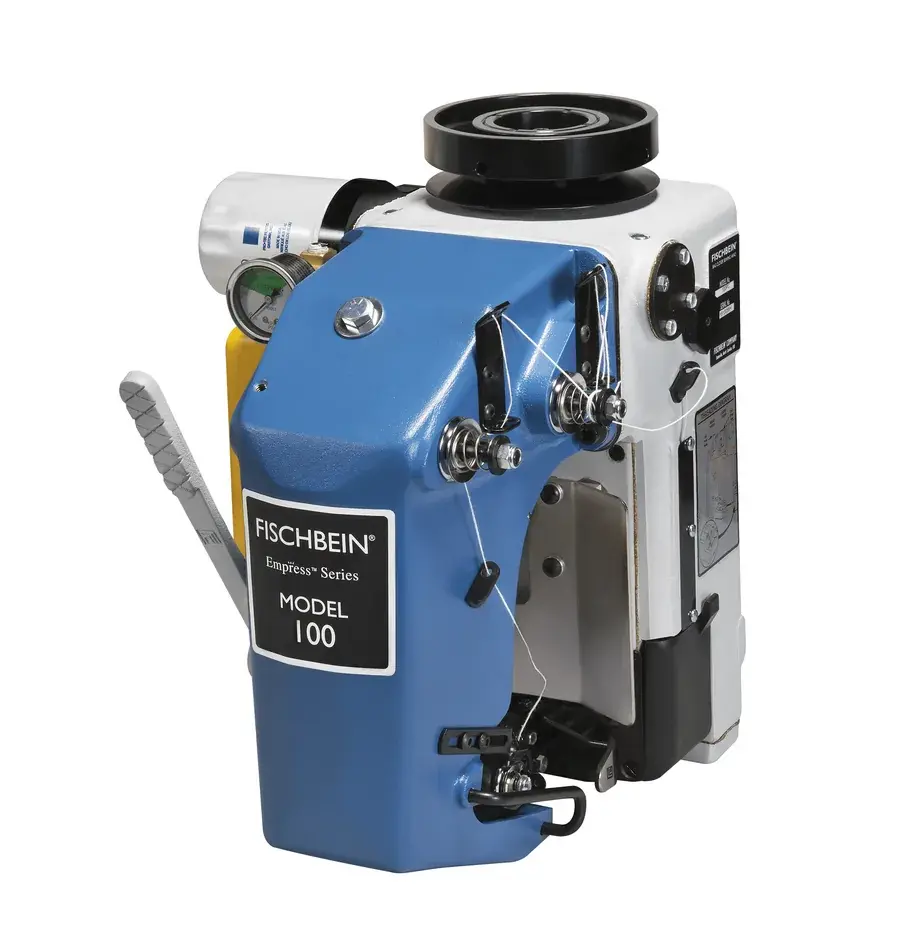

Cabezales de costura de la serie Empress, modelos 100 y 101
Brand Empress Series Sew Heads Models 100 and 101
Product features
nVenia’s Fischbein Brand Empress Series Model 100 Standard Sew and Model 101 Tape Sew are designed for smooth performance and trouble-free operation. Both models offer variable speeds, low noise/vibration and adjustable sewing speeds up to 55 linear feet per minute. Empress Sew Heads are ideal for sewing every type of open mouth bag including paper, woven polypropylene, and jute.
Standard
Variable speed
Low noise/vibration
Dura thread clipper
Patented self-lubricating system
Both models adaptable to existing Fischbein equipment
Options
Performance mounting pedestals
Power infeed systems
Full range of conveyors
Bag top folders
Thread and tape break detectors
Bag coders
Photoelectric controls for system integration
Bags
Open mouth bags including paper, woven polypropylene, and jute
Specifications
| Model 100 Standard Sew | Max. Speed: 55 linear feet per minute (16.7 meters per minute) Max. Material Thickness: 0.3 in (8mm) Stitch: Federal type 401 single needle, double thread chain stitch Stitch Range: 2 to 3.5 SPI (50 to 90mm) Stitch Width: Standard 2.5 SPI Thread Cutter: Pneumatics: 50 PSI @ 2 to 3 SCFM Weight: 57 pounds (26 kg) Thread: Fischbein brand polyester sewing thread recommended |
|---|---|
| Model 101 Tape Sew | Max. Speed: 55 linear feet per minute (16.7 meters per minute) Max. Material Thickness: 0.3 in (8mm) Max. Crepe Tape Thickness: 1.25″ to 2.5″ (3.2 to 6.4 cm) wide Stitch: Federal type 401 single needle, double thread chain stitch Stitch Range: 2 to 3.5 SPI (50 to 90mm) Stitch Width: Standard 2.5 SPI Thread/Tape Cutter: Standard Clipper Pneumatics: 90 PSI @ 10 to 12 SCFM Weight: 62 pounds (28 kg) Thread: Fischbein brand polyester sewing thread recommended |
