Product features

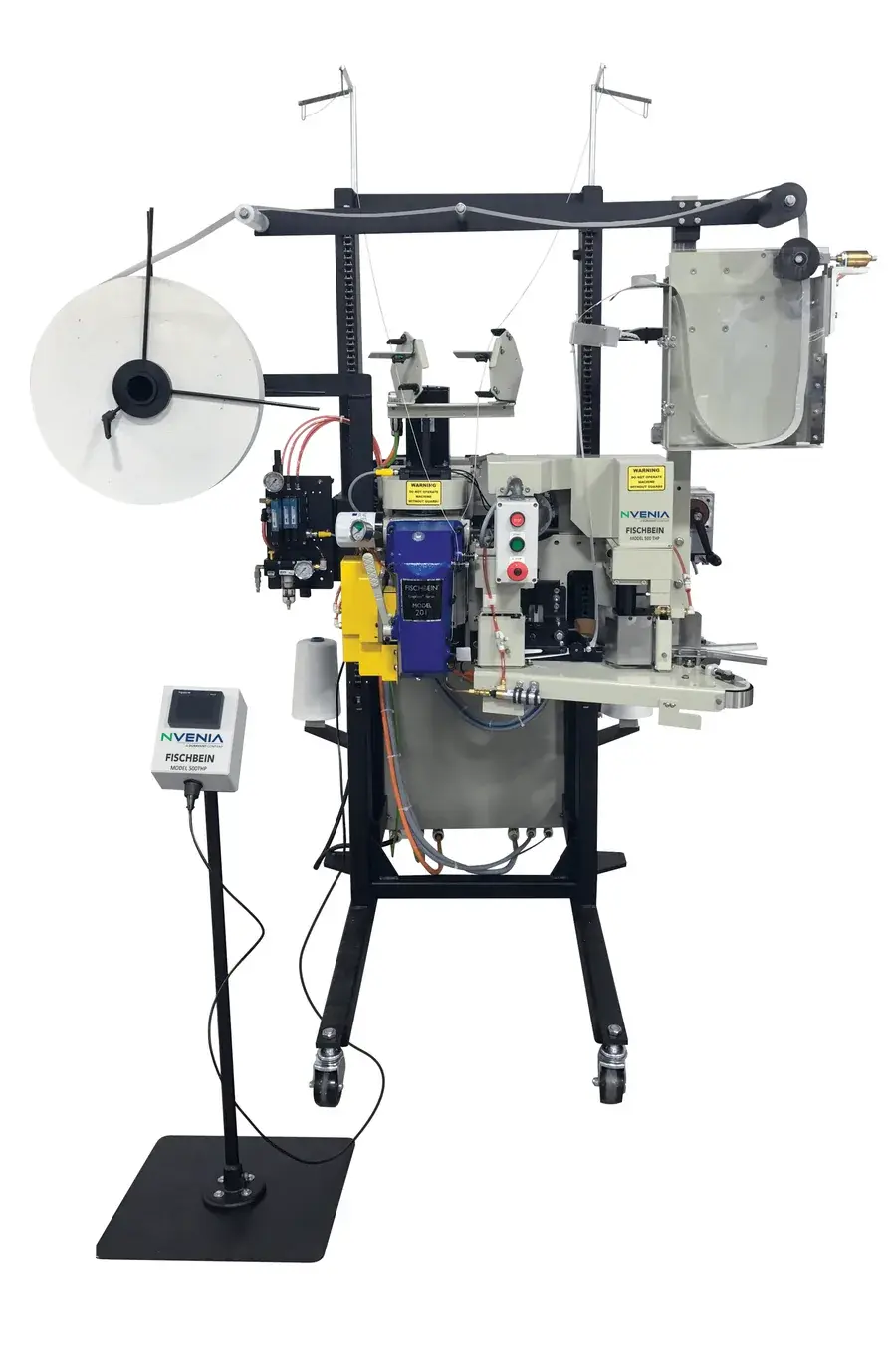

The Fischbein Brand 501T Tape Sewing System produces highly attractive crepe tape sewing closure for multi-wall paper and laminated woven polypropylene open mouth bags. This versatile, high production tape sew system features an all-new operator HMI and an improved powered crepe tape feed system. Operating at speeds up to 75 linear feet per minute, the Model 501T is safe, easy to use, and easily integrated into any automated bagging line. Powered by an all-new servo motor to drive the sewing head, and with VFD control for the infeed, it provides a fully synchronous sewing system solution.
Standard
Closes a variety of bags including flat and gusseted multi-wall paper, and woven polypropylene bags.
All new intuitive HMI interface allows setting of various run parameters, error reporting and maintenance reminders.
PLC and servo motor eliminates the need for a clutch/brake.
New Servo motor with dedicated servo drive; and VFD controlled infeed, with built-in “Safe Torque Off” feature
Synchronized timing belts ensure consistent, drift-free control.
Improved powered crepe tape feed system, easy to adjust infeed, and improved thread control.
Bag Top Trimmer specifically designed with quick change, long-life blades that ensure thousands of hours of trouble-free operation.
Heavy duty Dura Tape and Thread clipper
Tape Sew Sensor Package for thread break, tape break and oil detection (with parameters set from HMI)
With its self-lubricating system, the Empress Sewing head delivers trouble-free smooth performance with low vibration.
Needle cooler
New more durable and stable sew stand with improved thread control and reduced vibration
Compact pedestal design that is fully mobile and features a manual height adjustable sewing line that ranges from 28 to 60 inches high.
24 VDC controls for safe, low voltage troubleshooting
Dust tight NEMA 12 electrics
Options
Various infeed lengths
Motorized Height Adjustment
Motor starter and contactor for conveyor
Ink Jet Printer
Tape contact coder
Bag Types
Multi-wall paper and laminated woven polypropylene open mouth bags
Bag Thickness
Maximum 12 mils
Free Bag Top
Minimum 6 in (15.2 cm)
Specifications
| Dimensions | 46″ (147 cm) L x 41″ (104 cm) D x 78″ (198 cm) H |
|---|---|
| Speed | Up to 75 linear feet per minute |
| Electric | 230/380/460 VAC – 3 PH – 50/60 Hz |
| Air | 90 PSI, 15 SCFM |
