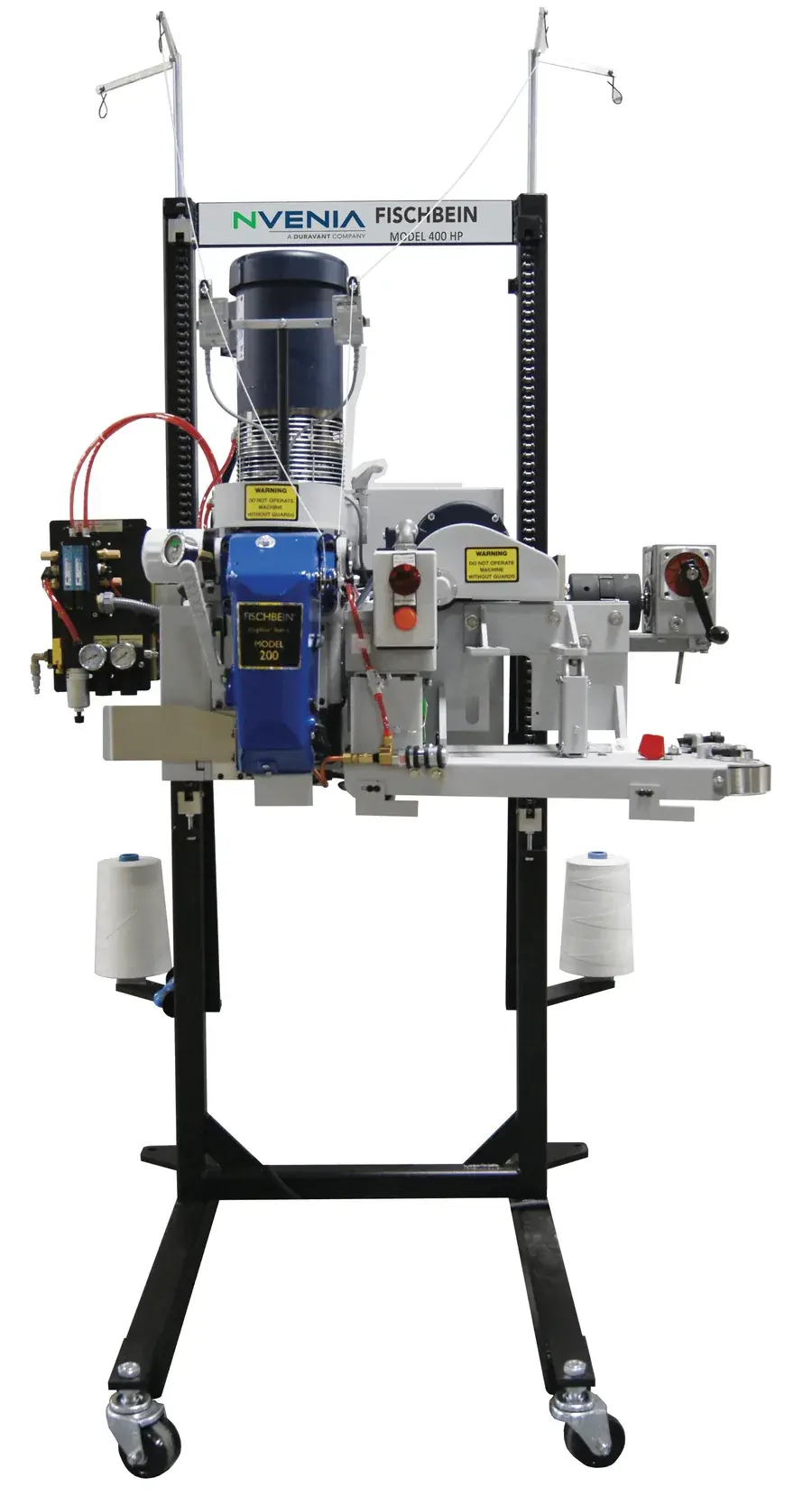

400 HP

Our Fischbein Brand 400 HP is a high-performance plain sew system that sets the industry standard for high-speed bag closing in the most demanding, high-volume bagging environments. Operating at speeds adjustable up to 75 linear feet per minute, the 400 HP is safe, easy to use and easily integrated into any semi-automated bagging line using multi-wall paper, woven polypropylene or jute open mouth bags.

Features include a Dura Thread Clipper that efficiently cuts the thread at high speeds and an automated infeed system that guides the top of the bag through the entire bag sewing process.

• Closes a variety of pillow style or gusseted bags, including multi-wall paper, laminated and non-laminated woven polypropylene, and jute.

• Infeed is fast, safe, and automated. The leading edge of the bag is fed into the infeed, which automatically guides the bag’s top through the entire bag sewing process.

• With its self-lubricating system, the Empress 200 Sewing Head, delivers trouble-free, smooth performance with low vibration.

• Operating speeds up to 75 linear feet per minute.

• Dura Thread Clipper designed for high-speed bag closing applications where efficient thread cutting is critical.

• Exclusive sewing head swing feature makes threading the 400 HP™ a snap, and provides full access for cleaning and easy head removal.

• Compact pedestal design that is fully mobile and features a manual height adjustable sewing line that ranges from 28 to 60 inches high.

• 24 VDC controls for safe, low voltage troubleshooting

• Dust tight NEMA 12 rated electrics

Options

• Synchronous Sewing Package with direct drive VFD

• Various infeed lengths

• Tagger Assist Front or Back

• Plain Sew Sensor Package for thread break and oil detection

• Motor starter and contactor for conveyor

• Vortex needle cooler

• 575 VAC

Bag Types

• Multi-wall paper, woven polypropylene and jute bags

Bag Thickness

• Maximum 12 mils

Free Bag Top

• Minimum 6″ (15.2 cm)
