Product features

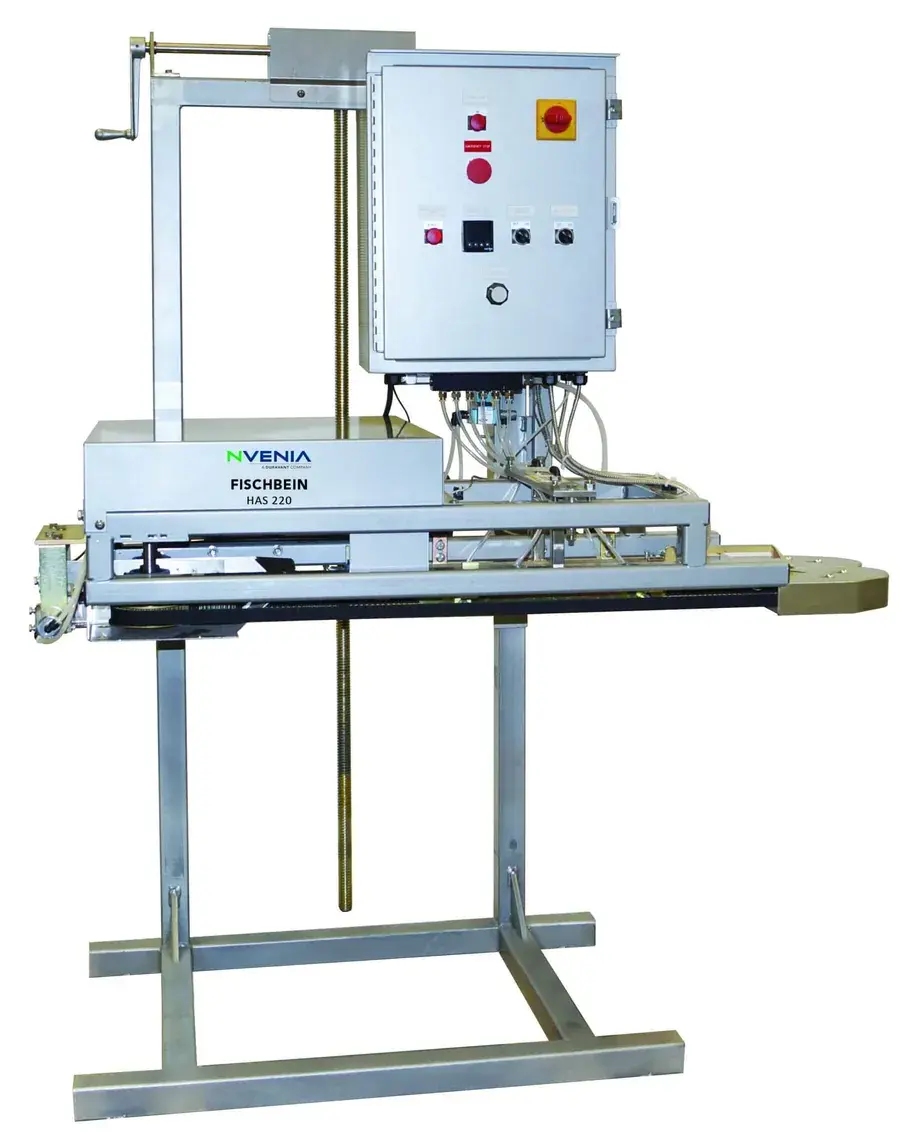

Our Fischbein Brand 220 Hot Air Sealer provides efficient, cost-effective sealing of pillow style or bottom gusset pre-made polyethylene bags up to 60 feet per minute. Standard DC variable speed controls synchronize sealer to conveyor speeds.
Standard
Seals pillow style, non-side gusseted bags without the use of bands.
Standard DC variable speed controls match sealer and conveyor speeds for maximum bag production.
No bands required
Safe and easy-to-use control panel with digital temperature display, air pressure detector, and automatic heather burnout detector to ensure seal quality.
Dust tight, NEMA 12 rated electronics
Options
Industrial casters for portability
Left to right operation
Extra heat
Seal cooling
Embossing coder
Bag Types
Heat sealable structures in a wide range of poly bags
Bag Thickness
Min. 2 mils; Max. 8 mils
Specifications
| Dimensions | 36″ (91.4 cm) L x 26″ (66 cm) D x 62″ (157.5 cm) H |
|---|---|
| Speed | Up to 60 linear feet per minute |
| Electric | 230 VAC/1PH/60Hz/23 FLA |
| Air | 80PSI @ 6cfm. Up to 10 cfm with seal cooling option |
