LIMISERVO X G Series

Compact, lightweight motor with complete range of convenient functions!

Realization of Compact, Lightweight Motor

Motor size reduced by approximately 60% when compared with previous motor (XL-554). Motor weight reduced by approximately 1.7kg.

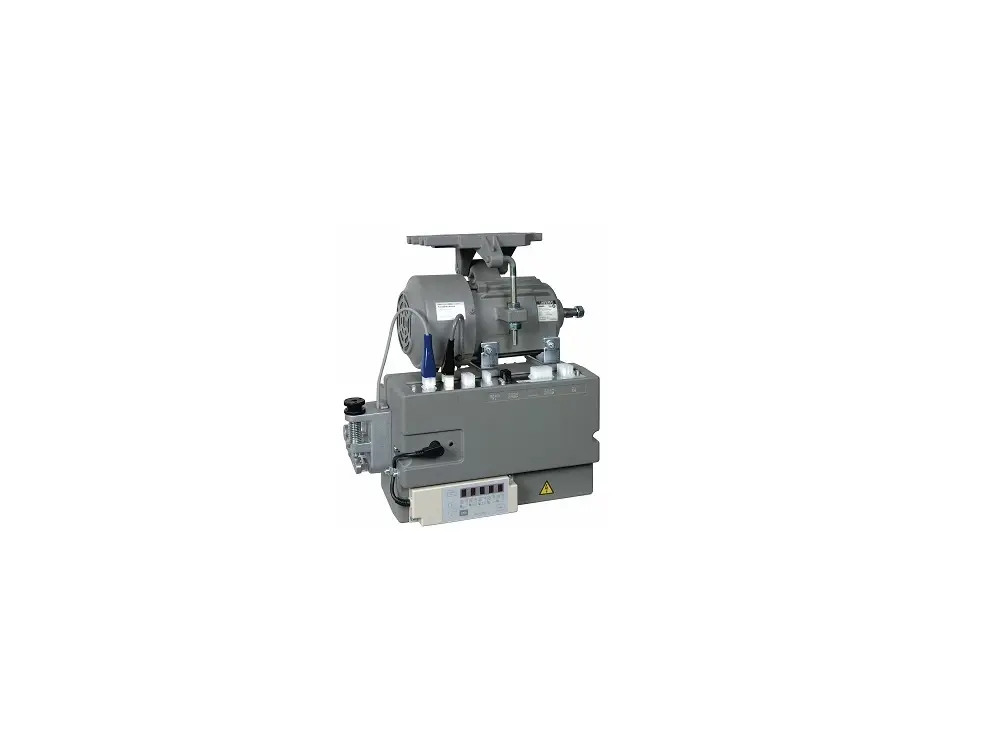

Control Box / Motor

The LIMISERVO X G Series includes auto thread trimming, presser foot lifting, fixed-stitch stitching, continuous stitching and backtacking. When connected to operation panel, there are step sequence, simple sequence and PC communication functions. Equipped with 8 solenoid drive outputs, 2 electromagnetic valve outputs, 1 small-signal output and 14 input terminals including variable voltage input.

Step Sequence Function

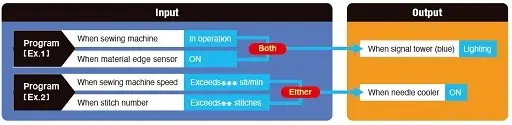

Condition settings also possible with multiple combining. ●This function enables easy programming of the desired input, output and machining operation conditions in sequence with the stitching process. ●Various operations can now be incorporated into the “stitching process”, including those performed before and after operation.

Direct Parameter No. Call-up Function

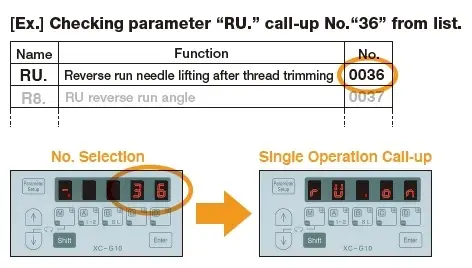

Previously it was necessary to select the respective mode to perform settings when making changes to the parameters, however, by using the XC-G10S (L), XC-G500Y operation panel, it is now possible to call up the required parameter in a single operation. It is also possible to call up parameters for each mode.

Computer Interface Standard Equipment

●Settings data control including batch writing, reading and saving of settings can be performed using the setup software. (XCG_SET) ●Step sequence creation, editing, etc. can be performed using the dedicated step sequence software. (XCG_STEP)

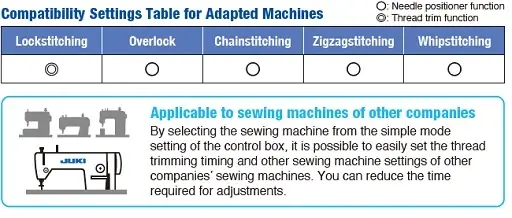

Inherits the LIMISERVO X F Series!

●The settings data save function has been expanded to enable saving of settings data from 1 model to 2 models. ●A parameter change difference display has been added. (A flashing dot [.] displays at the changed parameter.) ●2 types of function setting can now be performed with a single input.

*1 Please refer to the instruction manual for details of the connection method. *2 sti/min is the abbreviation for “stitches per minute”
