Product features

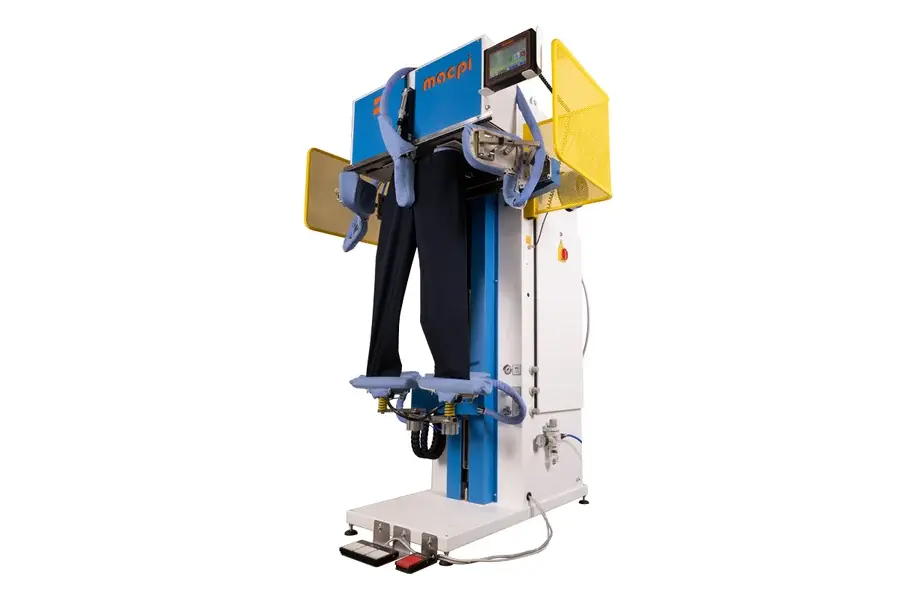

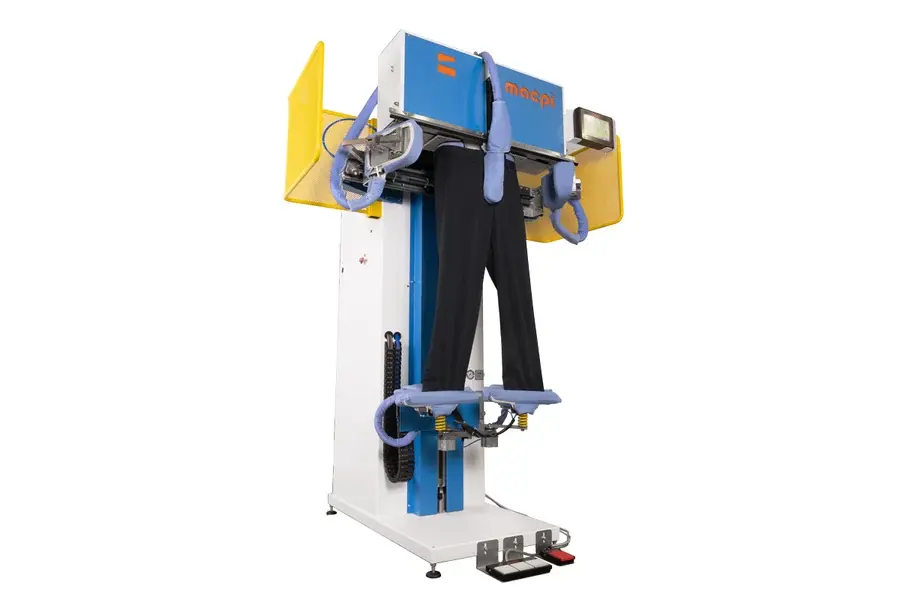

Steaming and blowing electropneumatic unit for trousers and skirts finishing.
The unit is featuring the following characteristics and is complete with:
Featuring:
* shaped plates for top (the tension is released on the trouser top sides)
* standard shaped medium size plates fitted on the machine
* trouser tensioning device with mechanical adjustment for pressing both babies/short and large size men’s trousers
* antistatic electro-pneumatic adjustment for top and leg tensioning
* automatic device for top sizing
* automatic sizing device for legs length
* adjustable steaming flow
* steam over-heater
* air blowing heated
* device for air blowing flow adjustment by programmable inverter
* adjustable trousers bottom clamps pressure
* pneumatic blocking device of trousers bottom clamps positioning
* back top blocking clamps
* electronic time set-up for steaming, air blowing delay, air blowing and anticipated clamps opening
* Touch Screen
* electronic production counter
* front flap pressing with heated and steaming shapes
* trousers legs bottom pressing with heated, steaming , tilting and adjustable shape
* front pockets pressing with heated and steaming shape
* air blowing by electric fan of 2,2Kw
* cold air blowing
