Product features

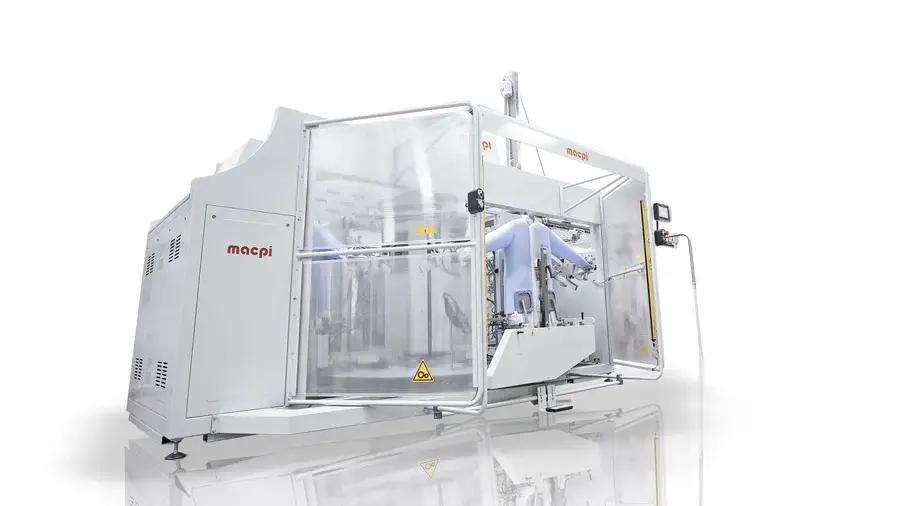

Carousel 4 stations for the pressing shirts
The machine is supplied with 4 dummies fitted on a turntable with 4 stations one for loading and the last for automatic unloading and hanger loading
Technical features:
- 4 working station :
a)loading: loading station with vacuum on middle of dummy
b)station with steaming and air blowing
c)blowing station
d)blowing station with automatic unloader and hanger loading
* hot blowing will be available also during the rotation
* foot pedal on loading station to activate all the function
* switch for start/stop cycle/emergency/reset and cancellation of the last operation
* 4 dummy model unisex
* 2 clamp to fix the cuff of long sleeve and 2 clamp for short sleeve with automatic tension device.
* safety barriers
* Front pressing shapes electrical heated with pressure adjustable

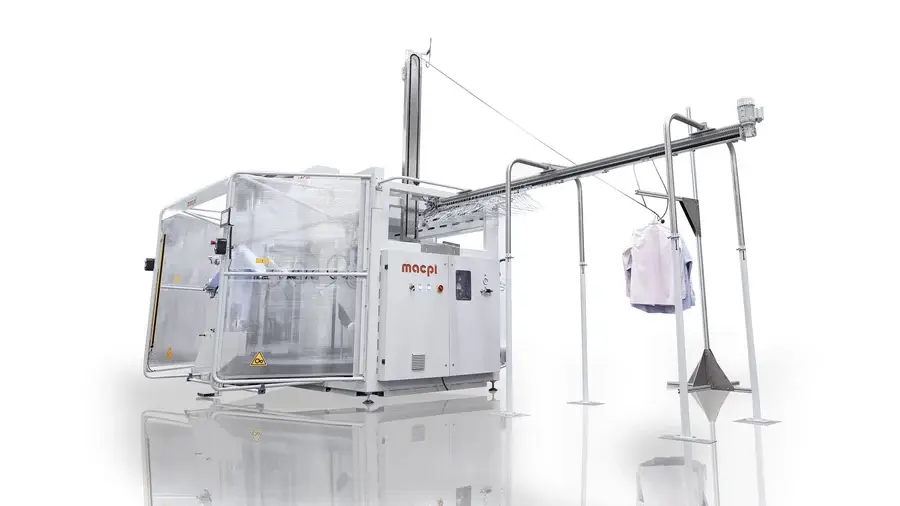

* loading station for hanger, complete with motorized continuous screw feeder
* built in vacuum fan 3 Hp Kw 2,2
* 2 blowing motors 3HP 2,2 Kw each
* steam over heated with heat exchanger for hot air blowing with temperature control
* programmer with touch screen NX7
* blowing timer
* steaming timer
Data sheets, photos, videos and specifications: Macpi.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
