MG-⁠3DGE-⁠7

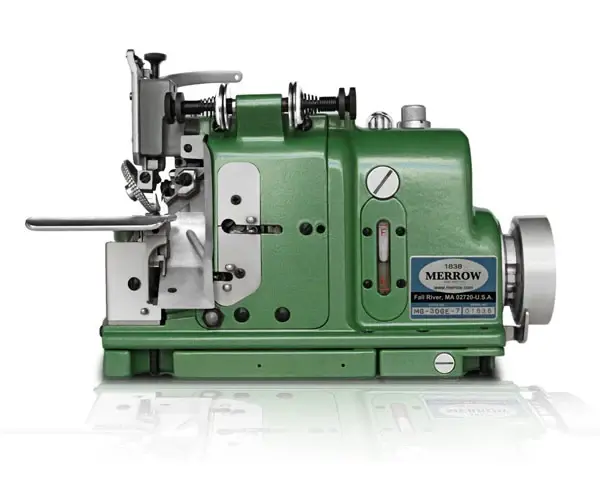

The Merrow MG-3DGE-7 is designed for sewing loosely spaced netting. It uses a specifically suited presser wheel that will not catch in the mesh holes and feeds material uniformly. The result - a netting stitch that is consistent, uniform, and strong.

The Merrow MG-3DGE-7 sews a 5/32" stitch at high speed (5500 RPM). It is a single needle, three-thread machine built on Merrow's proprietary cam driven architecture, which makes the machine as durable as its stitch is resilient.

WHY it's better

The MG-3DGE-7 sews a strong and secure overlock seam on netting at a rate of 4-40 stitches per inch (stand is 8 SPI). The standard width is 5/32", but this can be increased to 1/4". The stitch wraps the web completely and will not release under impact or when pulled and is wide enough for heavier nets like those used in athletic applications.

HOW it's better

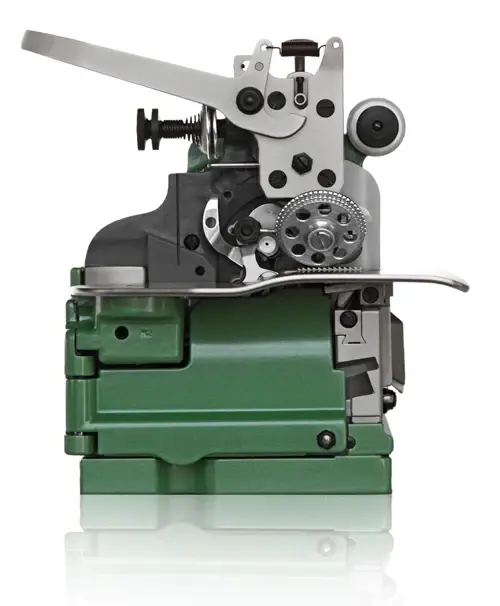

The MG-3DGE-7 sews a tight needle stitch using three threads and a unique presser wheel as part of the feed system. The presser wheel eliminates the hazard of catching in the spaces between the webbing, making the MG-3DGE-7 ideal for nets with loose spacing. The MG-3DGE-7 also provides extra looper and needle throw which is essential when sewing heavier material.

WHERE it's used

The MG-3DGE-7 shines when seaming loosely spaced mesh and netting, such as lacrosse and hockey nets. The presser wheel will not catch between the webbing like a standard presser foot.

Applications

• Structural Overlock Stitch for Mesh Laundry Bag

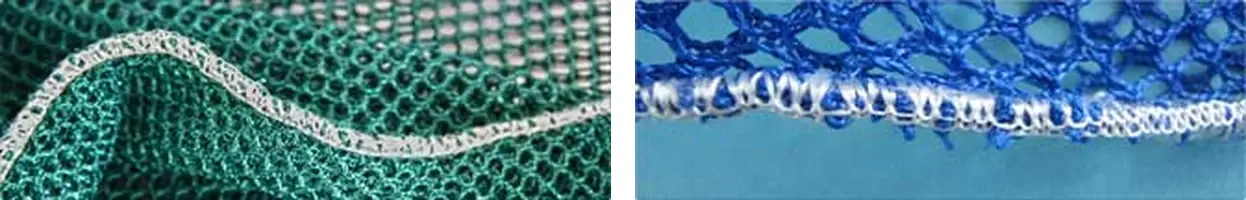

Stitch samples
