Morgan Tecnica

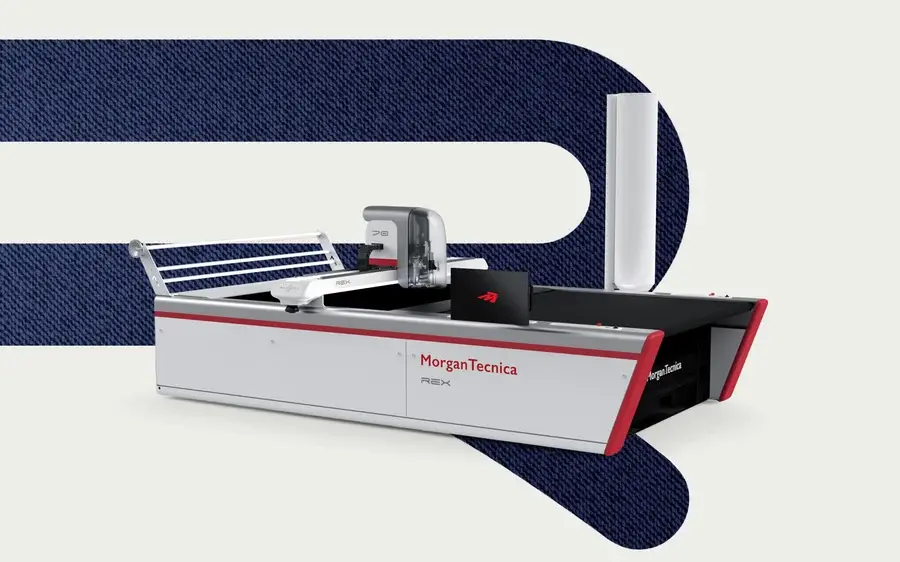

REX 70 DENIM
ADVANCED SOLUTIONS FOR DENIM CUTTING ROOM
Product features
Overcome supply chain challenges Reduce logistics costs Cut energy costs Green solution compliant with the new environmental regulations Boost overall performance Max. cutting thickness: 7 cm compressed Max. cutting speed: up to 65 m/min Max. cutting acceleration: up to 8 m/s2 Max. positioning speed: up to 120 m/min Max. positioning acceleration: up to 10 m/s2 Effective cutting window lengh: up to 140 cm Effective cutting window width: 180 – 220 cm
Designed to deliver superior performance in denim cutting, excellent quality, and reduced energy consumption.
The result of years of experience, REX sets a new industry standard: an innovative solution specifically engineered for high-precision denim processing, capable of increasing productivity, efficiency, and sustainability, achieving up to 50% energy savings compared to traditional technologies.
Specifications
| Average power consumption | 6,1 kW/h |
|---|---|
| Installed electrical power | 10 kW + 22 kW |
| Voltage / Frequency | 400 V 3Ph 50/60 Hz |
| Max. blade vibration frequency | 6.000 rpm |
Catalogue
Morgan Tecnica does not publish a separate leaflet for the REX 70 DENIM. Their catalogues cover the whole range and open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Morgan Tecnica. No prices or stock here: ask us and we will get back to you.
