SOH-500 series
Pegasus
SOH-542/WT562P-08J
High-end
Automatic unit for hemming operation on flat sleeves
Product features

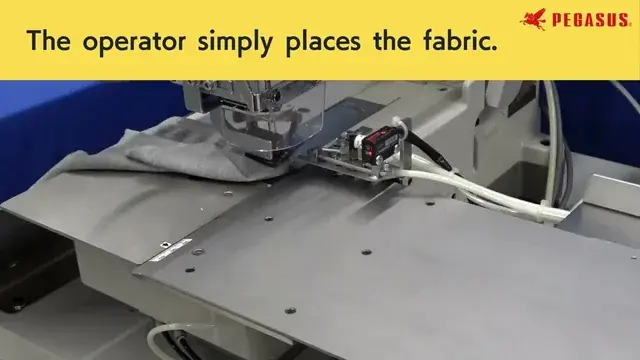

Automating the operation of hemming on flat sleeves Fully-automatic ・4,500 sti/min Hemming flat sleeves of T-shirts, underwear and similar garments
Seam
Hemming *without a top cover thread
Hemming
Specifications
| Stitch length adjustment | Push-button |
|---|---|
| Differential feed ratio adjustment | Lever that can be adjusted intermittently during sewing |
| Lubrication | Fully-automtic |
| Max. machine speed(sti/min) | 4,500 |
| No. of needles | 2, 3 |
| No. of threads | 4, 5 |
| Needle space(mm) | 4.0, 4.8 |
| Type of needle plate finger | B, C |
| Air consumption(l/min) | 95 |
| Accessories | Hemming guide |
| Remarks | For light weight fabrics, Hem width 20mm〜30mm |
Videos
Catalogue
The SOH-542/WT562P-08J documents Pegasus publishes, on their own site. They open in a new tab.
And the catalogues Pegasus publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Pegasus.
