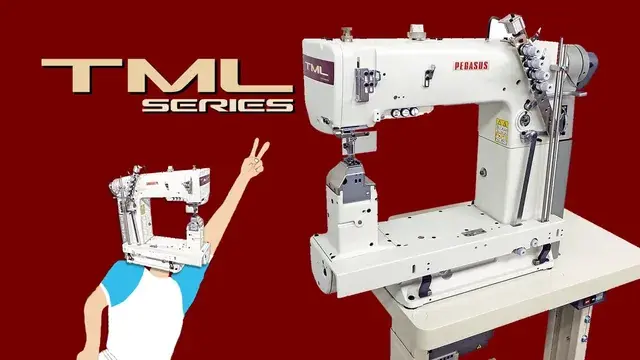

TML626
Pegasus
TML626-01x2080SA
Gama alta
Flatbed, interlock stitch machines
Product features
Parts for Automobile interiors, furniture, bags, shoes, leather products ・2000 sti/min
Seam
2-needle, double chainstitch
Specifications
| Stitch length adjustment | Dial |
|---|---|
| Differential feed ratio adjustment | - |
| Max. machine speed(sti/min) | 2000 |
| No. of needles | 2 |
| No. of threads | 4 |
| Needle space(mm) | 8 |
| Stitch length(mm) | 6 |
| Presser foot lift(mm) | 15 |
| Accessories | VS(Presser foot alternating vertical movement switching,Condensedstitching function,Inching function),PL device/ Presser foot lifter,Thread tension releaser |
Catalogue
The TML626-01x2080SA documents Pegasus publishes, on their own site. They open in a new tab.
And the catalogues Pegasus publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Pegasus. No prices or stock here: ask us and we will get back to you.
Other tml626 models
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
