Cylinder bed
Seiko

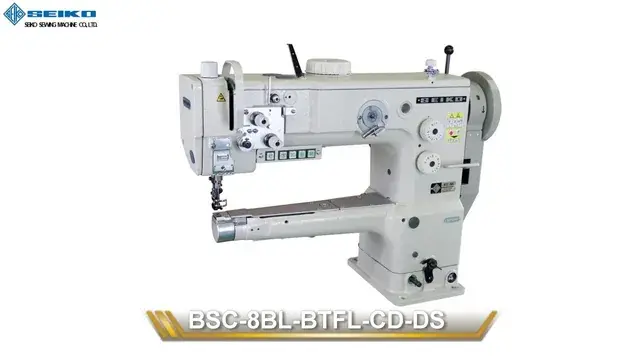

BSC series
Single needle, High speed, Narrow Cylinder bed, Horizontal axis hook, Compound feed and walking foot, Reverse stitch, Lockstitch machines.
Product features
Applications
For sewing medium to heavy weight fabrics, leather, vinyl, synthetics and laminated and coated materials. Suitable for tubular and curved products with narrow openings such as hats, caps, shoes, bags, handbags, etc.
Variety
| BSC-8B | Standard hook. |
|---|---|
| BSC-8BL | Large hook. |
| BSC-8BV | Standard hook, synchronized binder. |
| BSC-8BLV | Large hook, synchronized binder. |
| BSC-8BLH | Large hook, horizontal feed. |
| BSC-8BHC | Standard hook, thread trimmer, horizontal feed. |
Specifications
| Max.sewing speed | 2,300s.p.m. |
|---|---|
| Max.stitch length | 7mm |
| Clearance under presser foot | 16mm(by knee) 9mm(by hand) |
| Needle bar stroke | 35.4mm |
| Needle(Standard) | DPx17 #18 135×17 #110 |
| Hook | Large Horizontal axis hook(2.0times) |
| Amount of walking foot movement | 1-6mm |
| Lubrication | Automatic lubrication type |
| Cylinder size | 46mm |
| Working space | 350x120mm |
