Seiko

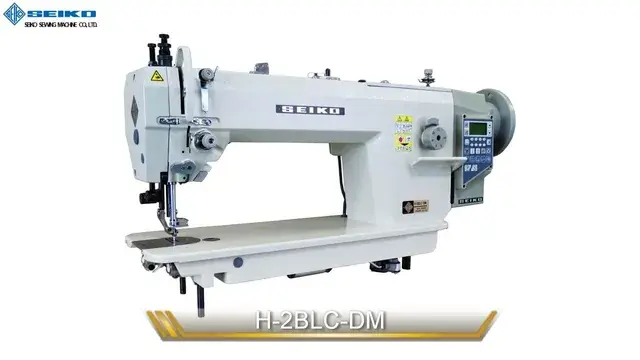

H-2BLC series
High speed, Single needle, Extra large horizontal axis hook, Automatic thread trimmer, Automatic back tack, Automatic presser foot lift, Upper and lower feed, Direct drive, Lockstitch machine
Product features
Applications
For sewing medium to heavy weight materials such as fabrics, leather, vinyl, synthetics and laminated and coated products. Suitable for sewing such products as bags, automobile work, awnings, vinyl and leather goods etc.
Variety
| H-2BLC-DM-1 | Max.stitch length 9mm |
|---|---|
| H-2BLC-DM-1-CS | Max.stitch length 12mm |
Specifications
| Max.sewing speed | 2,500s.p.m. |
|---|---|
| Max.stitch length | 12mm |
| Clearance under presser foot | 7mm(by hand) 12mm(by pedal) 13mm(by automatic foot lifter) |
| Needle bar stroke | 38mm |
| Needle(Standard) | DPx17(#22～#25) 135×17(Nm140～Nm200) |
| Hook | Extra Large horizontal axis hook |
| Amount of walking foot movement | 2.0-5.5mm(Standard 3.0mm) |
| Lubrication | Automatic lubrication type (there is some exception) |
