Long arm
Seiko
LSWNH series
20 inch long arm and high arm, Large vertical axis hook, Compound feed and walking foot, Reverse stitch, Lockstitch machine.
Product features
Applications
For sewing medium to heavy weight materials such as leather, vinyl, synthetics and laminated and coated materials. Suitable for sewing such as tents, covers, sails, awnings, tarpaulins, automobile upholstery.
Variety
| LSWNH-8BL-20-1 | Single needle, 20inch long arm. |
|---|---|
| LSWNH-8BL-20-1-BTFL | Single needle, automatic back tack,automatic presser foot lift, 20inch long arm. |
| LSWNH-8BL-20-1-TA-BTFL | Single needle, automatic back tack,automatic presser foot lift, for thick thread, 20inch long arm. |

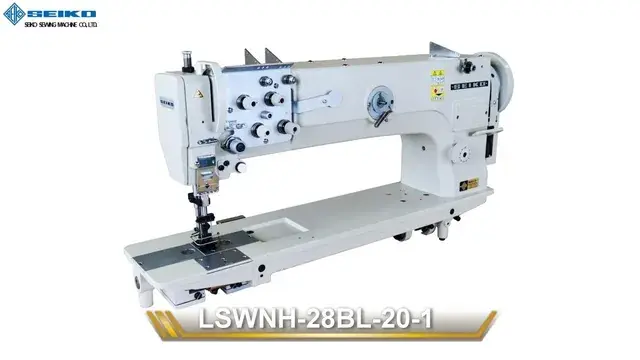

| LSWNH-28BL-20-1 | Two needle, 20inch long arm. |
| LSWNH-28BL-20-1-BTFL | Two needle, automatic back tack,automatic presser foot lift, 20inch long arm. |
| LSWNH-28BL-20-1-TA-BTFL | Two needle, automatic back tack,automatic presser foot lift, for thick thread, 20inch long arm. |
Specifications
| Max.sewing speed | 1,500s.p.m. |
|---|---|
| Max.stitch length | 10mm |
| Clearance under presser foot | 16mm(by pedal) 8.5mm(by hand) |
| Needle bar stroke | 37mm |
| Needle(Standard) | DPx17 #22 135×17 #140 |
| Hook | Large vertical axis hook (2.0times) |
| Amount of walking foot movement | 3-6mm(Standard 4mm) |
| Lubrication | Semi-automatic lubrication type |
| Working space | 516×150mm |
Videos
Catalogue
The LSWNH series documents Seiko publishes, on their own site. They open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Seiko.
