Seiko
LHPWN series
Single needle, High speed, Extra high post bed, Compound feed and walking foot, Reverse stitch, left post, Lockstitch machines.
Product features
For sewing medium to heavy weight materials such as leather, vinyl, synthetics and laminated and coated materials. Suitable for sewing such products as bags, boots, travel cases and automobile upholstery.

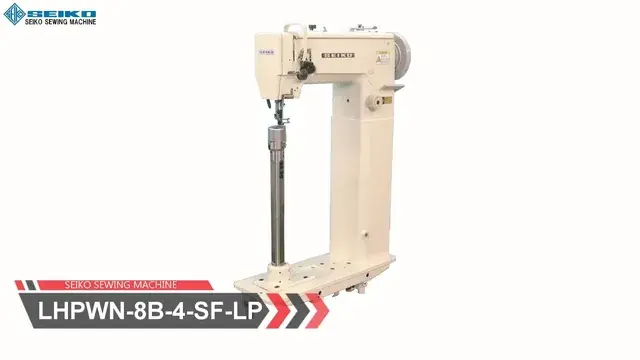

| LHPWN-8B-4-SF-LP | Slim post, standard vertical axis hook. |
|---|---|
| LHPWN-8B-4-TA-SF-LP | Slim post, standard vertical axis hook, for thick thread. |
| LHPWN-8BL-4-LP | Large vertical axis hook(2.0times). |
Specifications
| Max.sewing speed | 1,200s.p.m. |
|---|---|
| Max.stitch length | 7mm |
| Clearance under presser foot | 16mm(by pedal) 10mm(by hand) |
| Needle bar stroke | 35.4mm |
| Needle(Standard) | DPx17 #25 135×17 #200 |
| Hook | Vertical axis hook |
| Amount of walking foot movement | 2.7-5.5mm |
| Lubrication | Semi-automatic lubrication type |
| Post height | 445mm |
Catalogue
The LHPWN series documents Seiko publishes, on their own site. They open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Seiko. No prices or stock here: ask us and we will get back to you.
