Product features

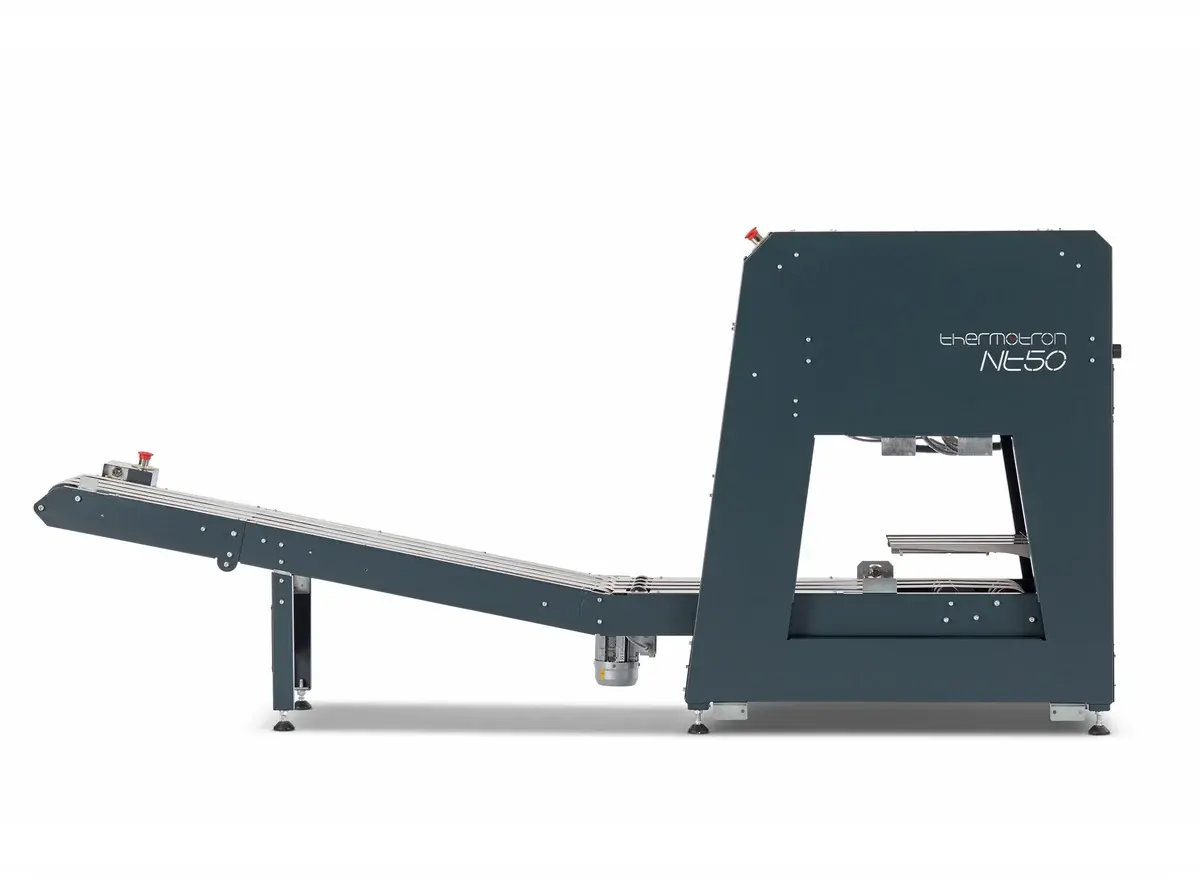

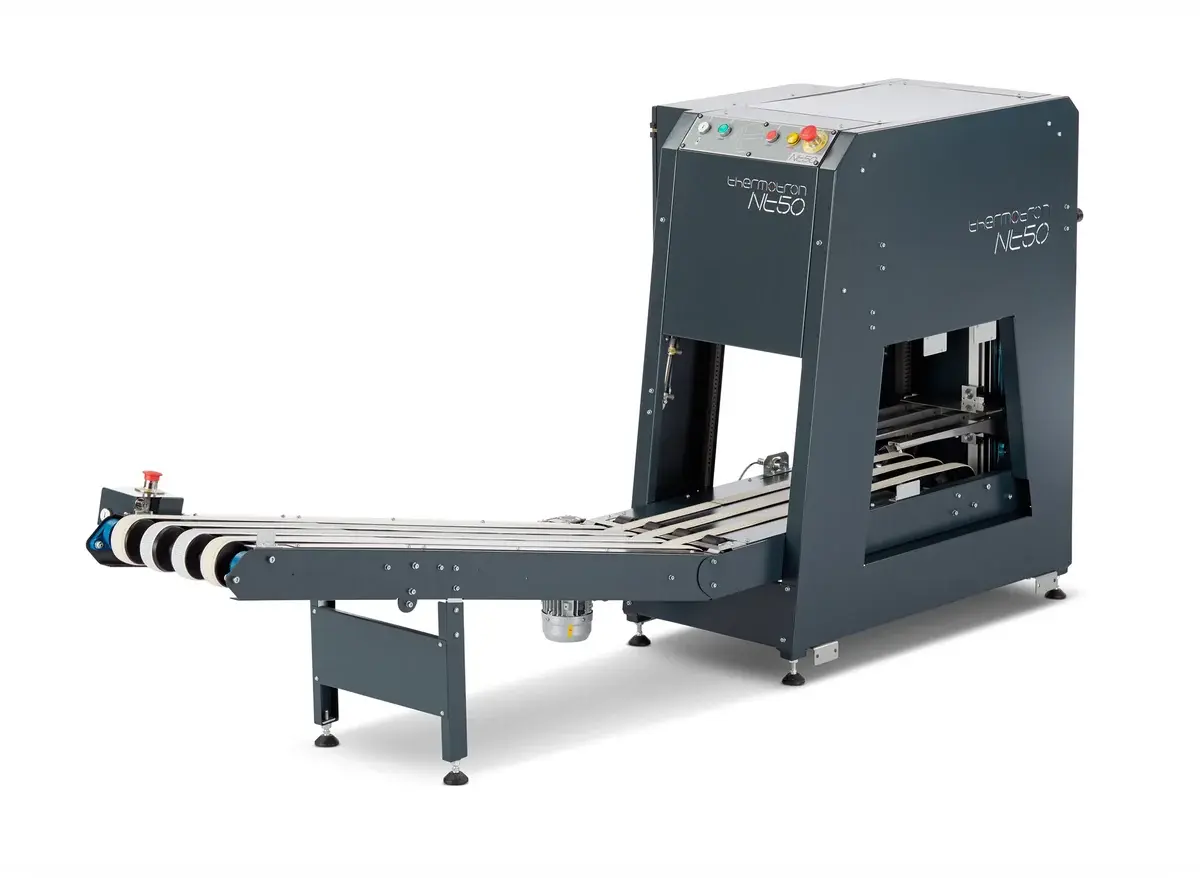

The NT50 unit is an automatic stacking machine for the folded garments coming out of the STP1000 automatic folding machine.

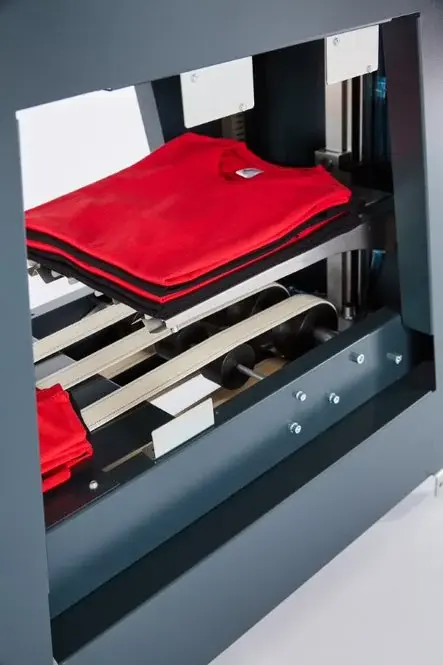

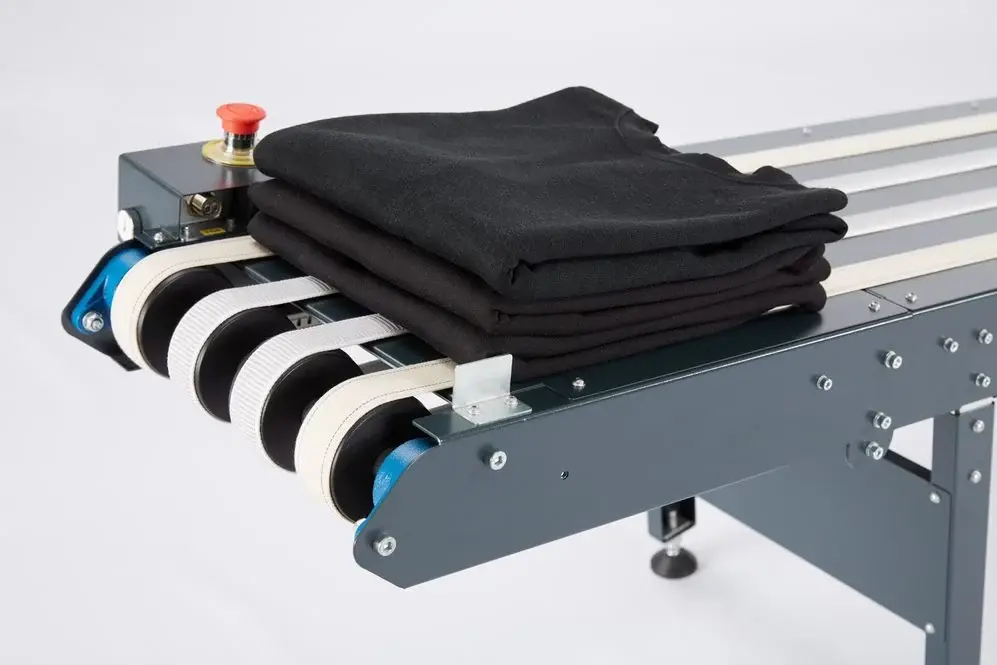

The NT50 unit is an automatic stacking machine. NT50 stacks the folded garments that come from the STP1000 automatic folding machine. It can stack folded garments with maximum folded width between 15-32cm. The maximum stacking height is 35cm. NT50 may sort garments in stacks and the size of the stack can be selected on the touchscreen at the front of the STP1000 folding machine. Once the NT50 has created a stack with the desired number of garments, as selected on the touchscreen, it automatically pushes the stack onto the conveyor belt. NT50 is robustly build and requires minimum maintenance.
Specifications
| Dimensions L*W*H | 255*72*118cm |
|---|---|
| Net weight | 125kg |
| Power supply | 210-400V AC 50-60Hz |
| Power | 0.33Kw |
| Air pressure | 6bar |
| Average air consumption | 38-45 L/min |
| CE | Yes CE Certification approved |
| Maximum stack height | 35cm |
| Operator | 1 Person |
Packing and transport
Dimensions of wooden crate (L*W*H): 92 x 144 X 142 cm.
Gross weight: 210kg
Disinfection Certificate GR-0074
We confirm that the wooden crates used for the packaging of the machines meet the requirements of the International Standards for Phytosanitary Measures No. 15 (ISPM 15, 2009) of FAO (Heat treatment at a minimum temperature of 56 ο C for a minimum of 30 minutes, on the entire mass of the wood.)
