Product features

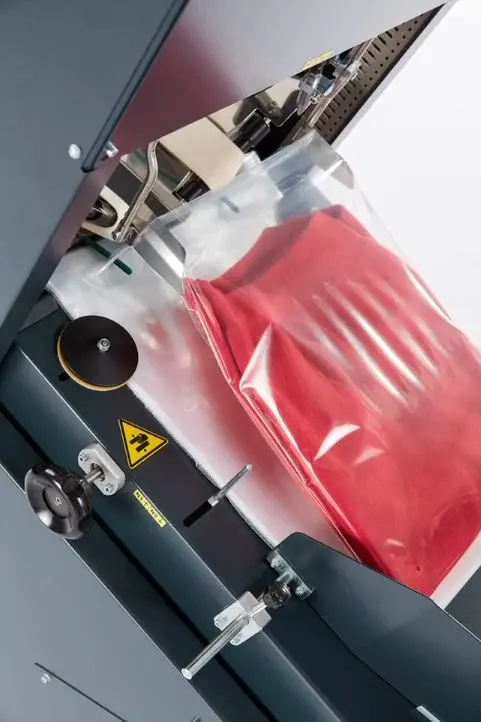

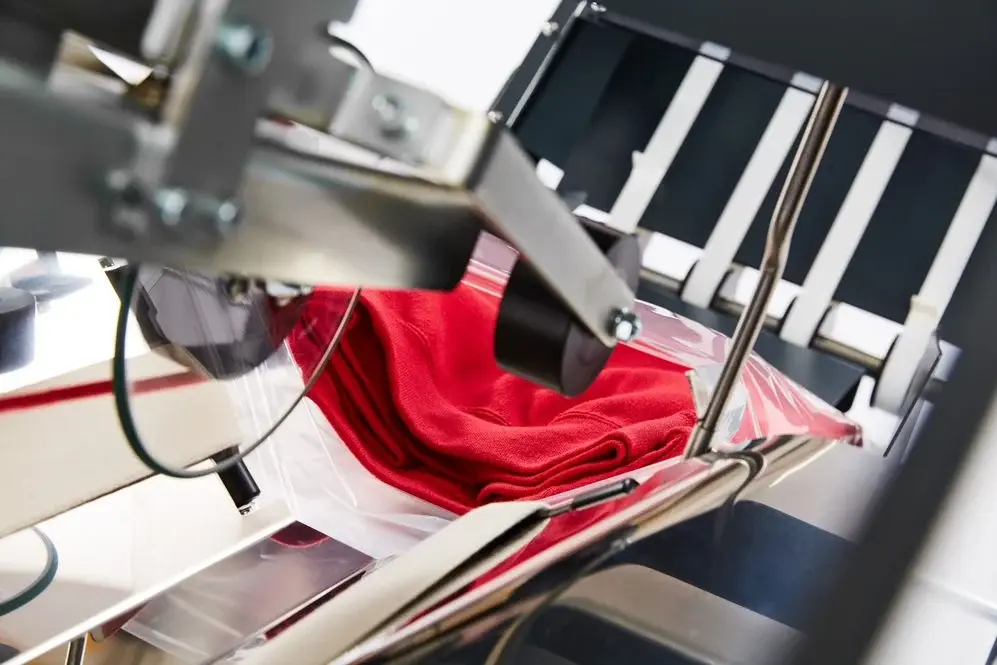

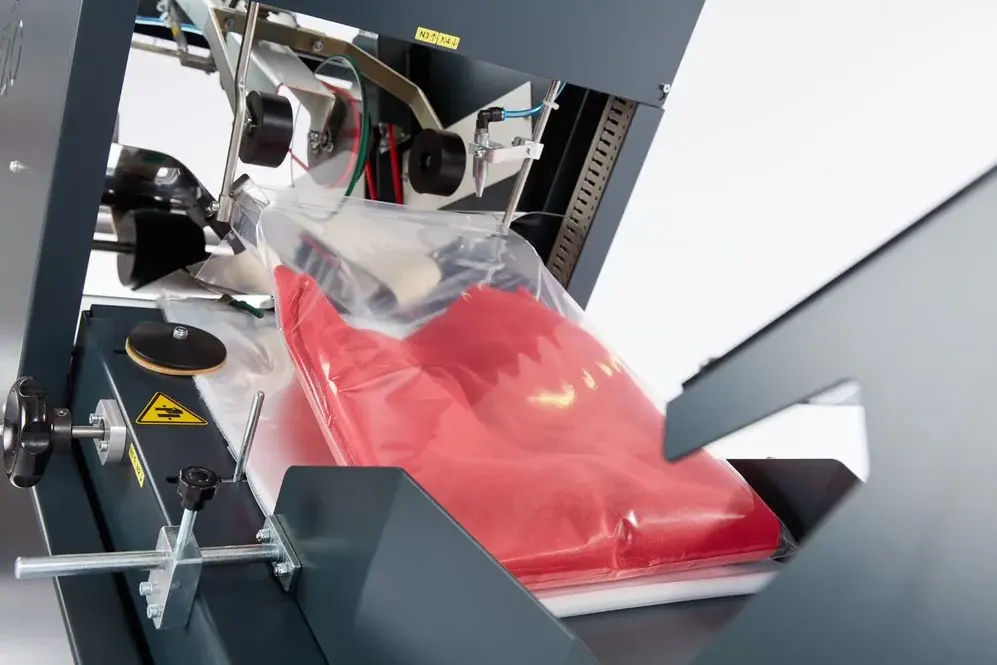

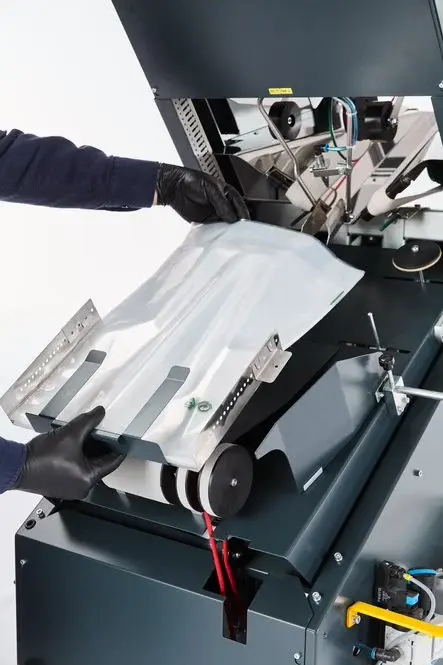

The PV40 & PV40M automatic bagging machines pack the garments that come folded from the STP1000 automatic folding machine in polyethylene (PE) and polypropylene (PP) bags, in the shape of a folder.

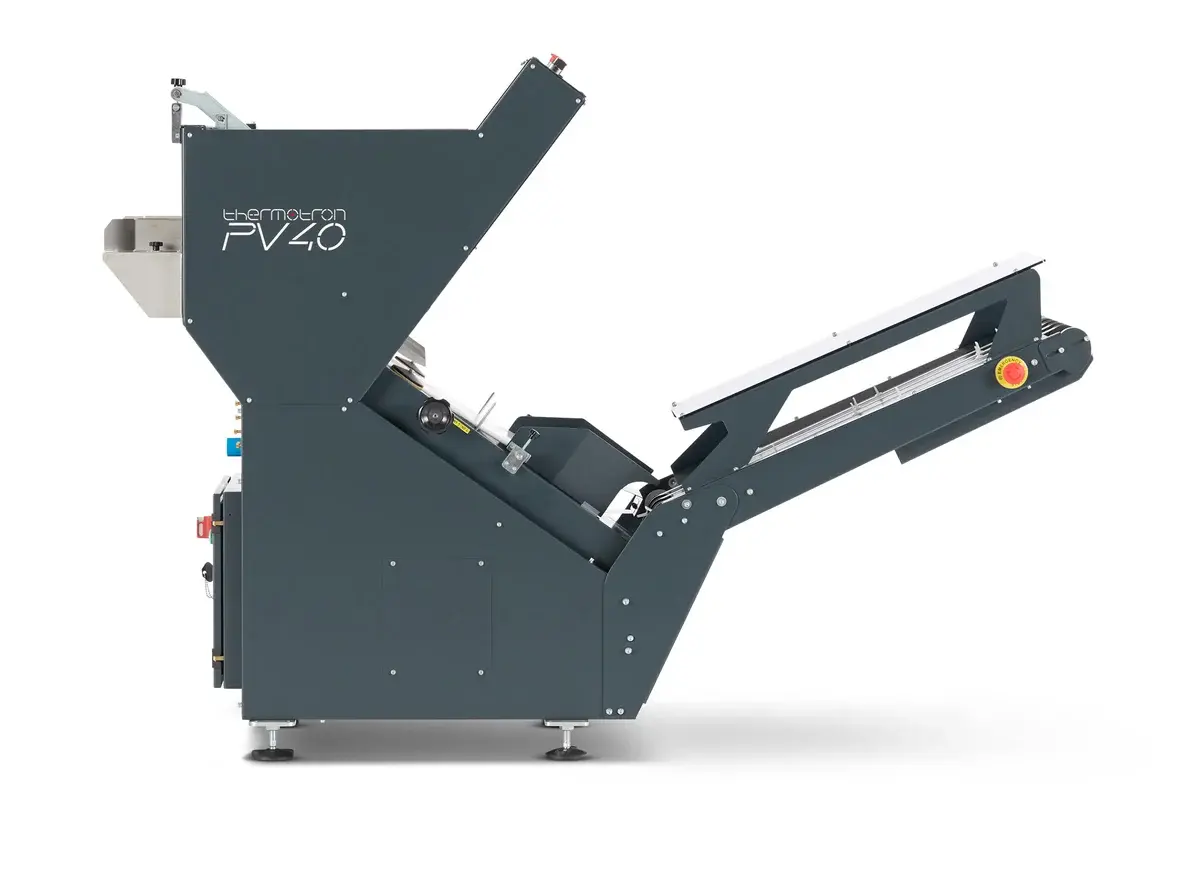

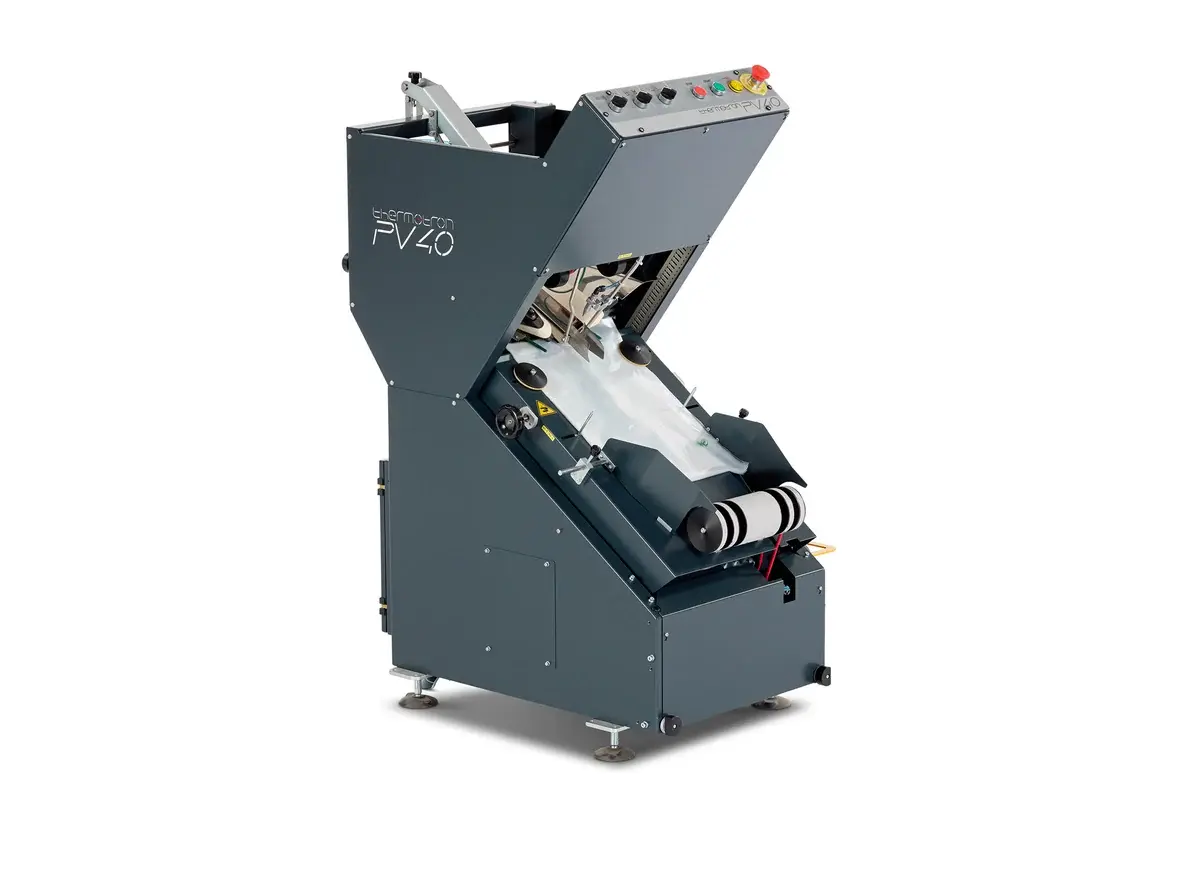

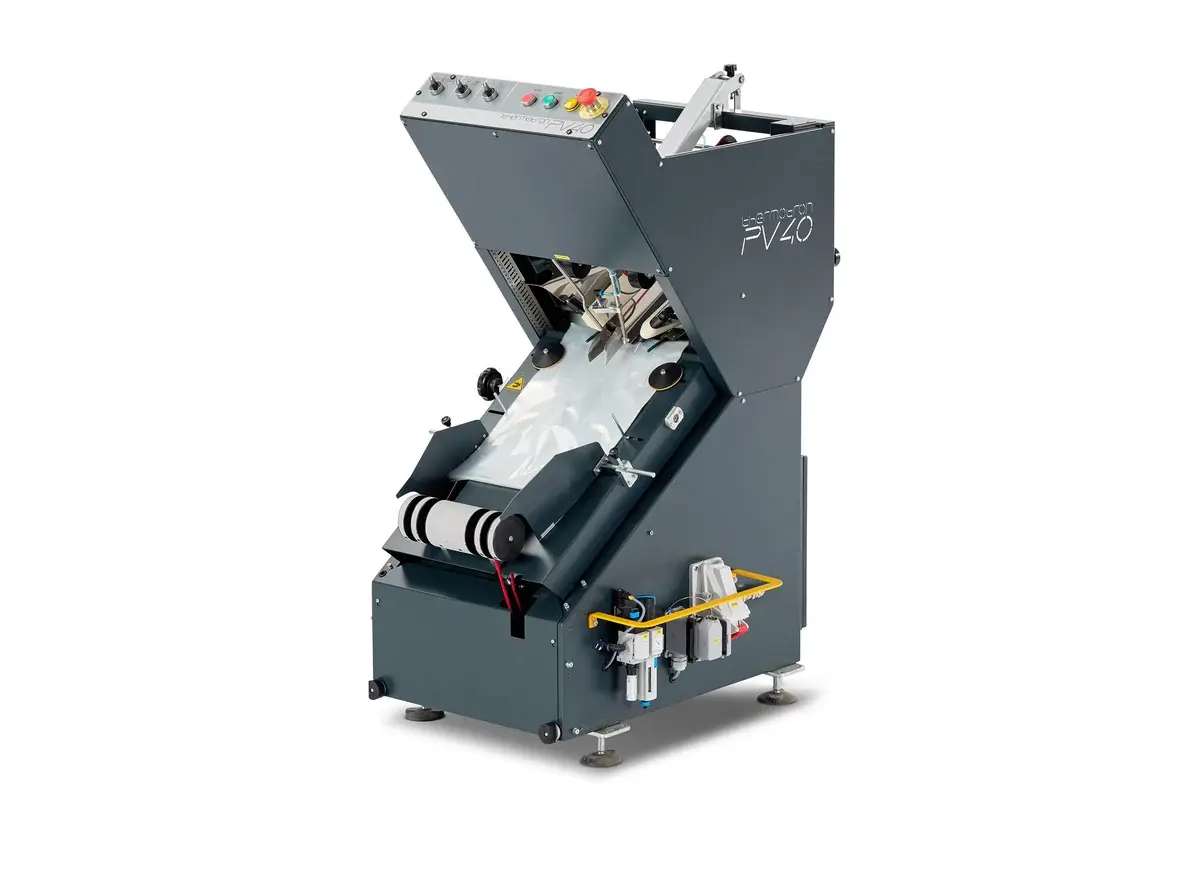

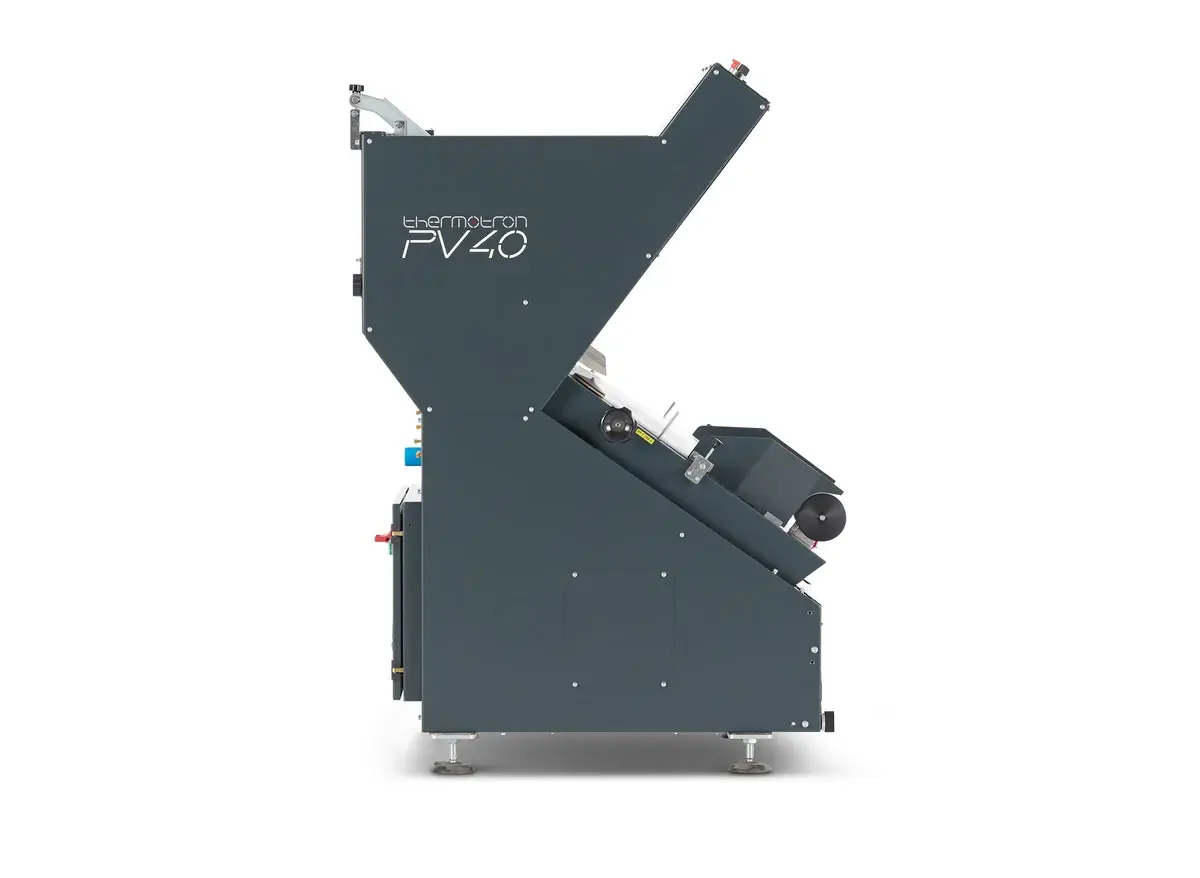

PV40 is a new automatic bagging machine for readymade garments. It is the evolution of the previous PV38 model, with targeted improvements and a detachable conveyor belt (MT1775), according to the customer needs. The output of PV40 depends on the production speed of STP1000or the speed at which an operator can feed the clothes into the machine when it is used as a standalone, with the GA1 garment alignment accessory.
The new PV40 automatic bagging machine packs the garments that come folded from the STP1000 automatic folding machine in polyethylene (PE) and polypropylene (PP) bags, in the shape of a folder.

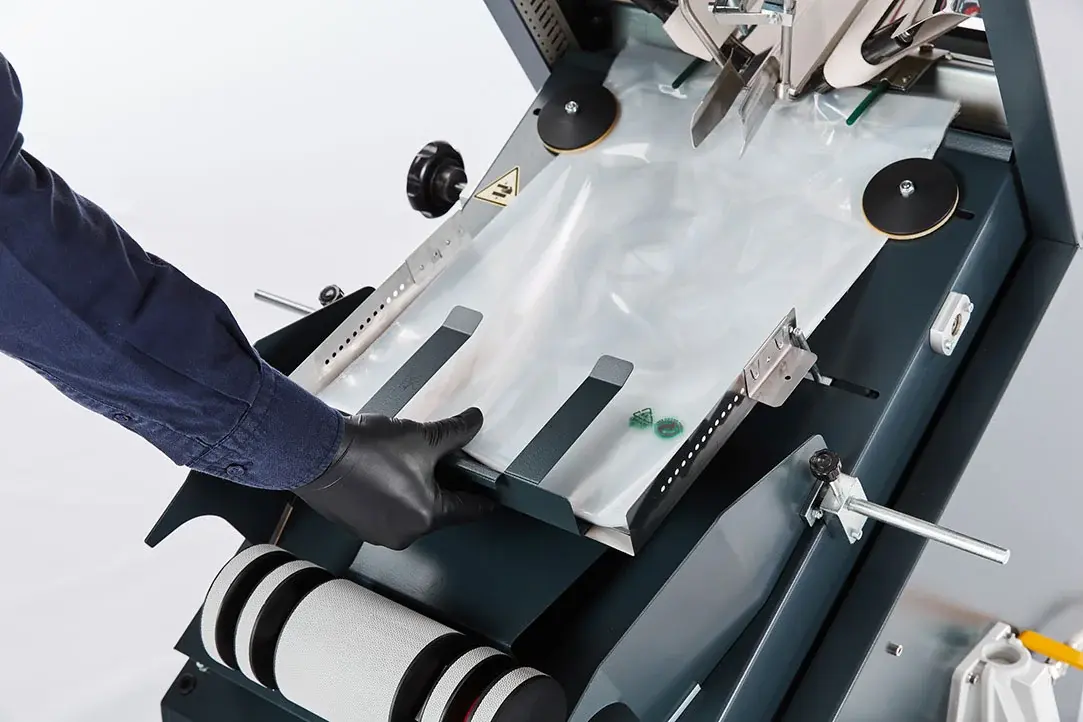

If more than one garments are to be placed in the bag, PV40 must be used independently of STP1000 by installing the GA1 accessory, and the operator must manually place the garments on the machine.
Bag width : 18-38εκ.
Length of flap : L f > = Minimum 5εκ
Maximum garment thickness : 6 εκ

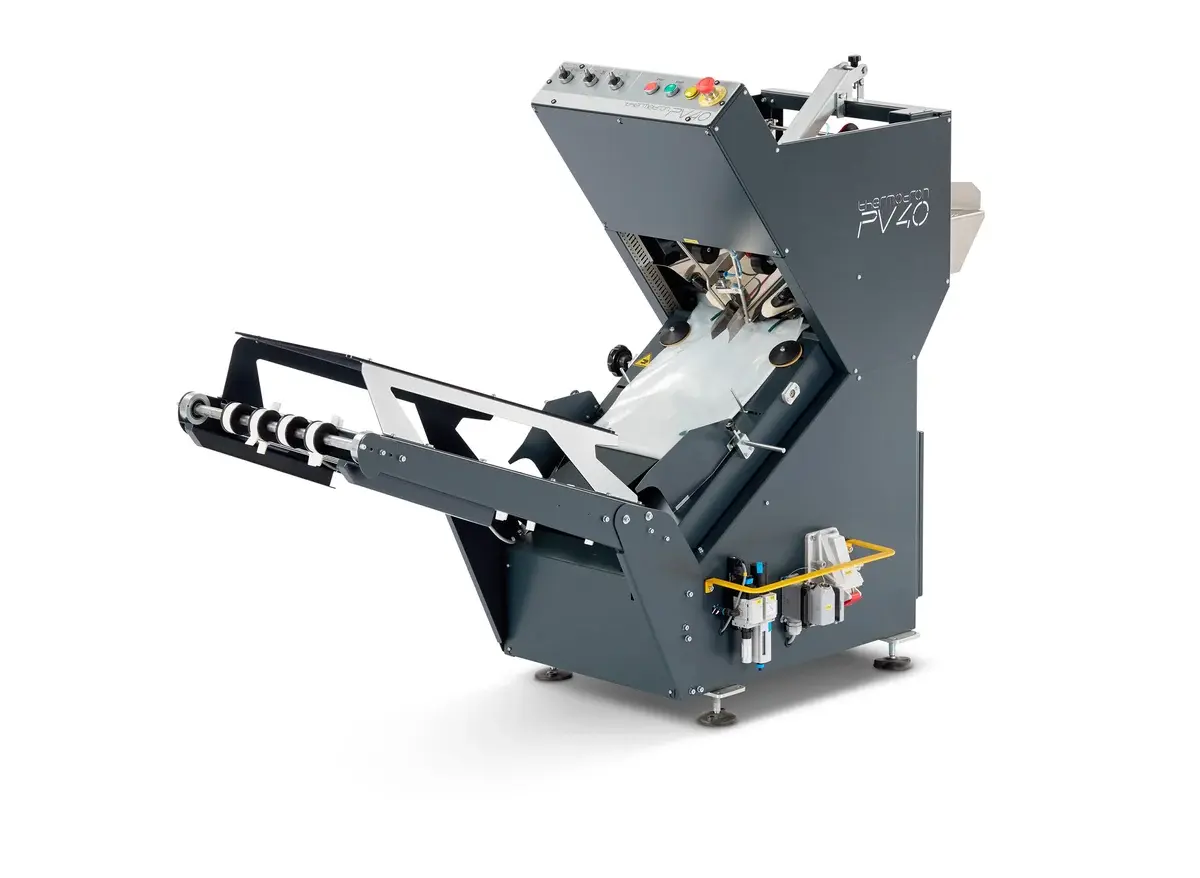

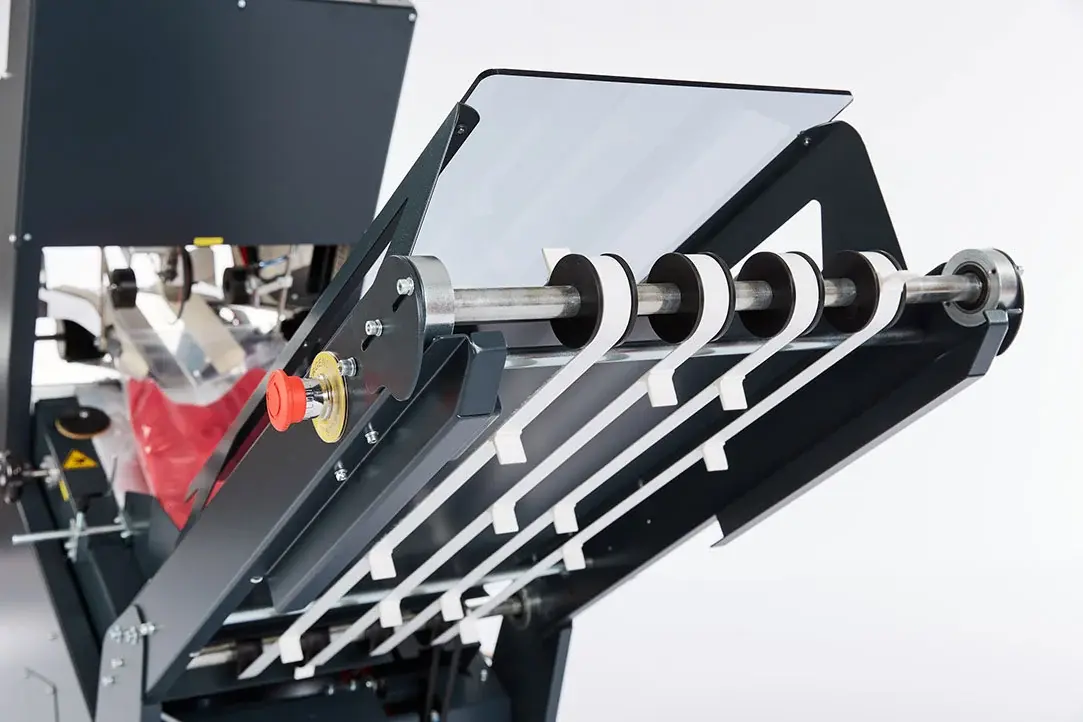

PV40 is offered either as a standalone unit or as a part of a folding and packing machine set. When the PV40 unit is the last station of a machine set, the machine is delivered with the MT1775 conveyor belt and designated PV40M.The PV40 & PV40M machines are robustly built and require minimum maintenance.
Specifications
| Power supply | 210-400V AC 50-60 Hz |
|---|---|
| Power | 0.33Kw |
| Air pressure | 6 bar |
| CE | Yes CE Certification approved |
| Width of bag | 18-38cm |
| Length of flap (L f) | Minimum 5cm |
| Maximum garment thickness | 6cm |
| Capacity of bags | 80-100pcs |
| Operator | 1 Person |
Dimensions L*W*H
PV40: 92*68*130cm
PV40M: 176*68*130 cm
Net weight
PV40: 115Kg
PV40M: 130Kg
Average air consumption
PV40: 70 L/min
PV40M: 70 L/min
Packing and transport
Dimensions of wooden crate for PV40 & PV40M (L*W*H): 121*87*153cm
Gross weight PV40: 180kg
Gross weight PV40M: 200kg
Disinfection Certificate GR-0074
We confirm that the wooden crates used for the packaging of the machines meet the requirements of the International Standards for Phytosanitary Measures No. 15 (ISPM 15, 2009) of FAO (Heat treatment at a minimum temperature of 56 ο C for a minimum of 30 minutes, on the entire mass of the wood.)
