MG

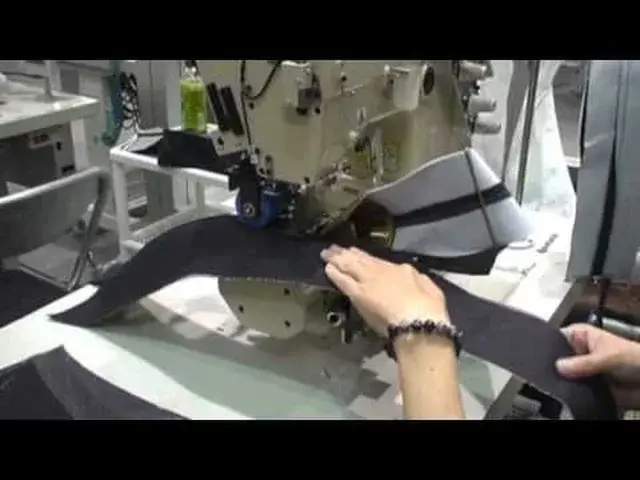

Yamato MG series is 2, 4 Needle Double Chain Stitch Machine with Needle Feeding for Attaching Waist Band, as One of the Most Important Process of Manufacturing Jeans. It offers good feeding performance for heavy weight material thanks to the needle feeding mechanism. Compensation type puller enables to correspond different thickness of material. The series lines up a curved waist band ready model to improve fitness.

2, 4 Needle Double Chain Stitch Machine with Needle Feeding for Attaching Waist Nand on Jeans, Working Pants and etc.

• For good quality finish in waist band attaching operation as one of the most important process of manufacturing jeans

Good feeding performance for heavy weight material thanks to the needle feeding mechanism

Good feeding performance for heavy weight material such as jeans, working pants and so on thanks to the combination of lower feed and needle feeding mechanism. It prevents puckering of waist bands and ensures good quality finish.

Lower feed and needle feed are linked and changeable synchronously by pushbutton. Besides, micro-adjustment of needle feeding amount is available for further fine adjustment according to kinds of fabric.

Compensation type puller enables to correspond different thickness of material

Fitted with compensation type puller enables to correspond different thickness of material.

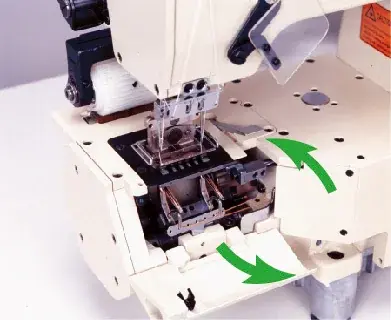

Retractable looper mechanism for easy threading

Loopers come down toward operator for easy threading.

Curved waist band ready model to improve fitness

Curved waist band ready model is also available for improving fitness to comfortable clothing.

Easy handling

Easy handling thanks to 470 mm cylinder circumference (395 mm without pullers).

Submodels

MG2002P, MG2002PC, MG2004P, MG2004PS
