Yao Han

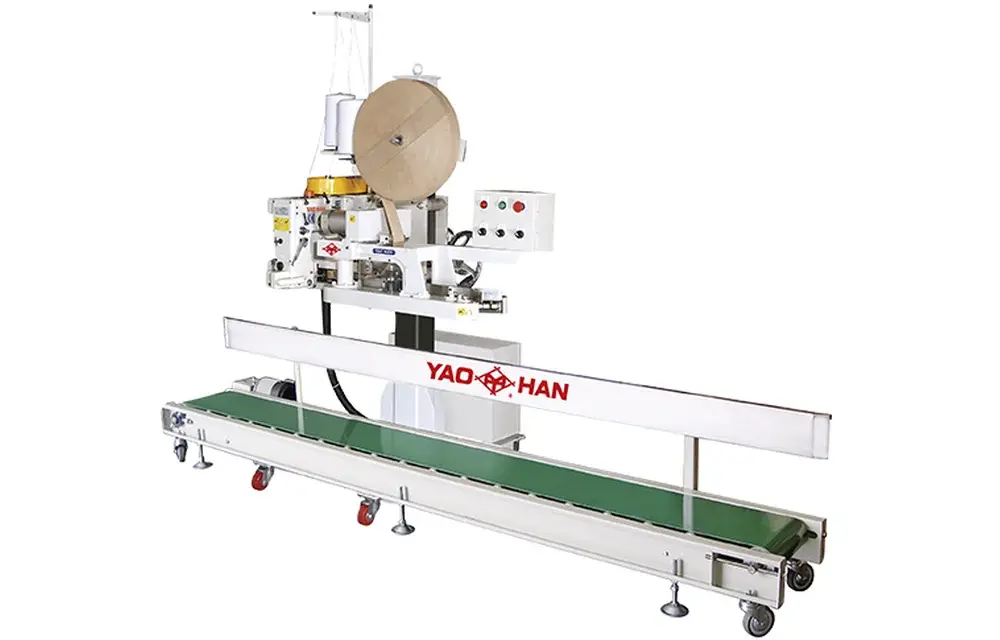

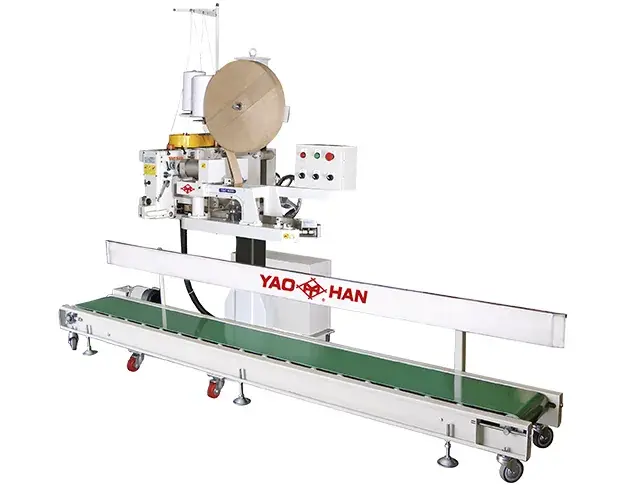

FACC-N980AC
Photo-Electric Start, Stop and Cutting, Pneumatic Cutting Thread and Crepe Tape.
Product features
Automatic infeed and bag top trimming device for crepe-tape bound closure on paper bags. Applicable to factories of grains,feedstuff, chemical,coffee beans, and etc.
Photo-eletric start binding, stitching, paper tape snipping and thread cutting can be finished automatically.
Designed for automatic production line with auto-ration filling machine and conveyor.
Control Within 4 kg / cm2 Conveyor : N.W. 175 kg, G.W. 315 kg, L314 X W74 X H66 cm Pedestals and Sweing Head (N980AC) : N.W. 300 kg, G.W. 430 kg, L126 X W125 X H187 cm
Specifications
| Model | FACC-N980AC |
|---|---|
| Speed | 500~600 r.p.m. Bags/Hour |
| Needle | DR x 2 #26 |
| Stitch | 7~11 mm |
| Closure Type | Pneumatic Thread/Tape |
| Material Thickness | 8mm |
| Stitch System | Double Chainstitch |
| Motor | 3 PHASE/220V , 380V 1/2 HP |
| Height Adjustment Range | 720 ~ 1200 mm |
| Work Plate Size | 450 x 300 mm |
Catalogue
Yao Han does not publish a separate leaflet for the FACC-N980AC. Their catalogues cover the whole range and open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Yao Han. No prices or stock here: ask us and we will get back to you.
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
