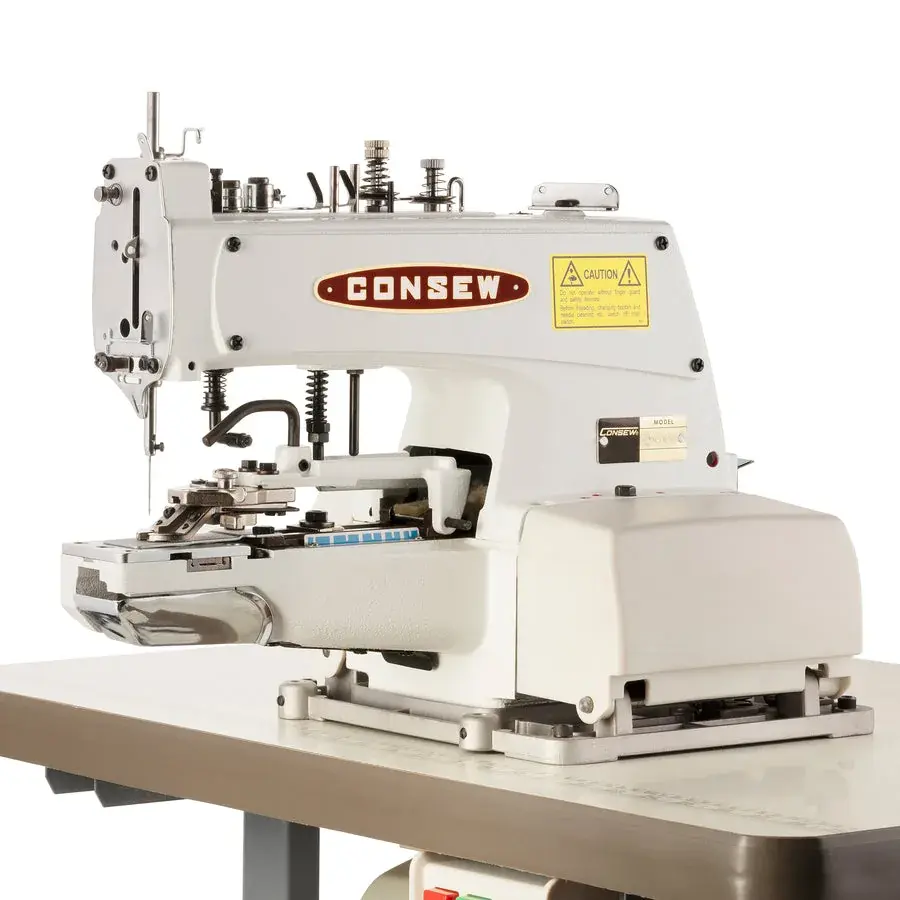

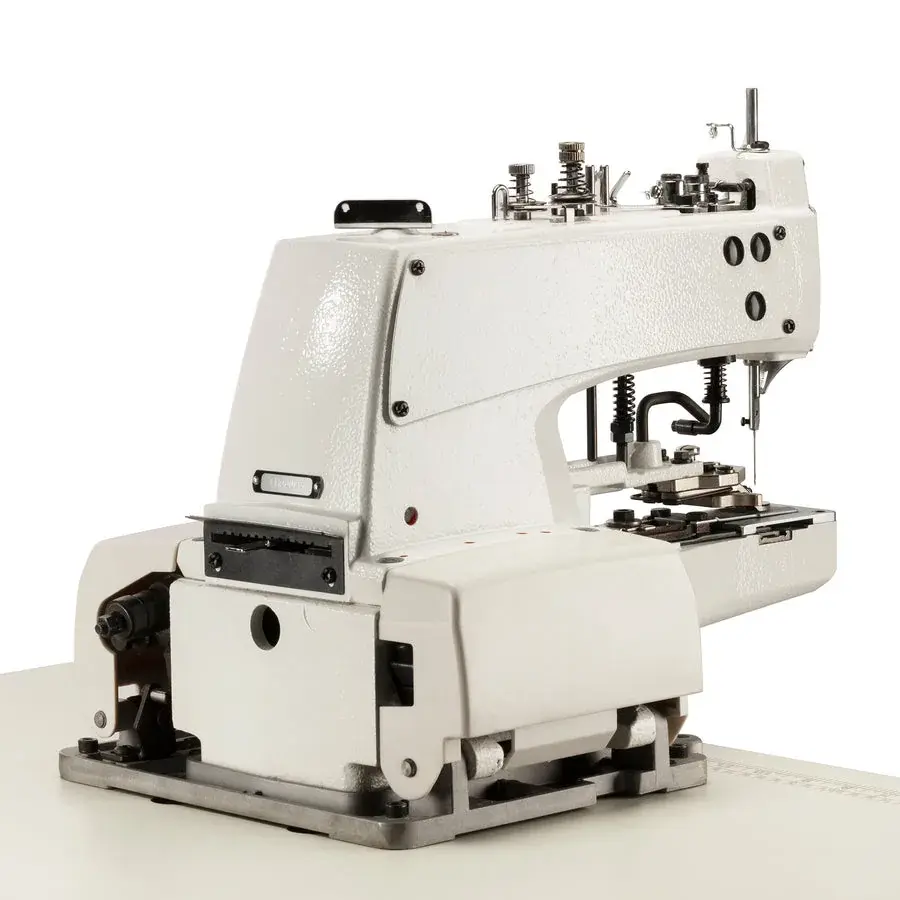

Button Sewer, Single Needle, Single Thread, Chain stitch, Cylinder Bed, Button Sewing and Tacking Machines
With: Vibrating Clamp, Single Pedal Operation, 8-16-32 Parallel Stitches, Two, or Four Hole Button Sewing Operation.
Applications
Designed to sew two and four hole buttons on light to medium material.
Suitable for sewing snap fasteners, shank, flat and metal buttons; hooks and eyes and label tacking with use of suitable attachments. Thread severed by automatic clamp lift upon completion of sewing cycle.
Has automatic scissor action thread trimmer with stationary and moving knife. Cutting action simultaneous with last stitch. Particularly suitable for use with heavy cotton and synthetic threads.
Features

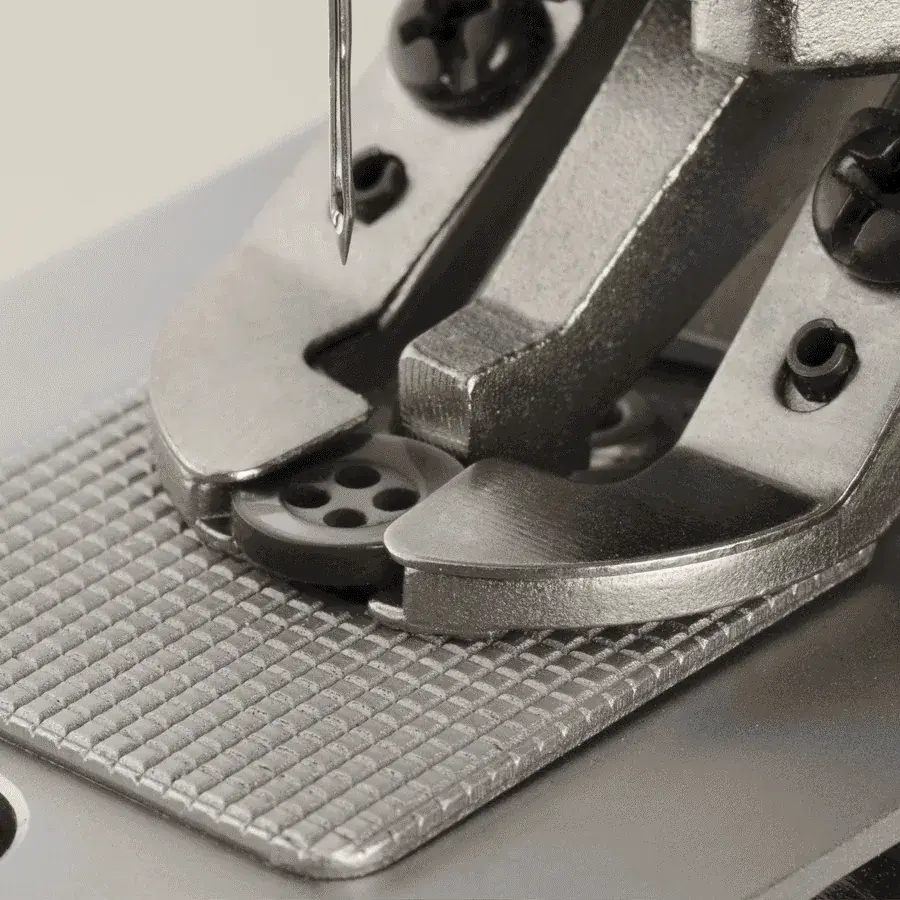

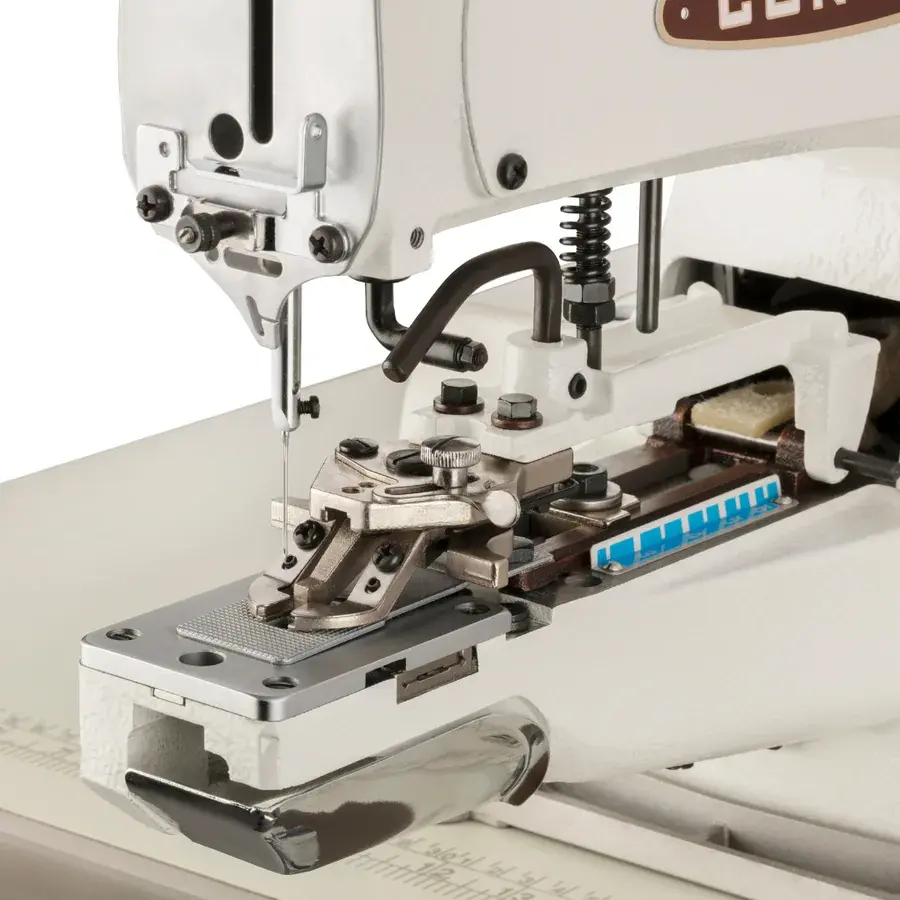

Vibrating clamp

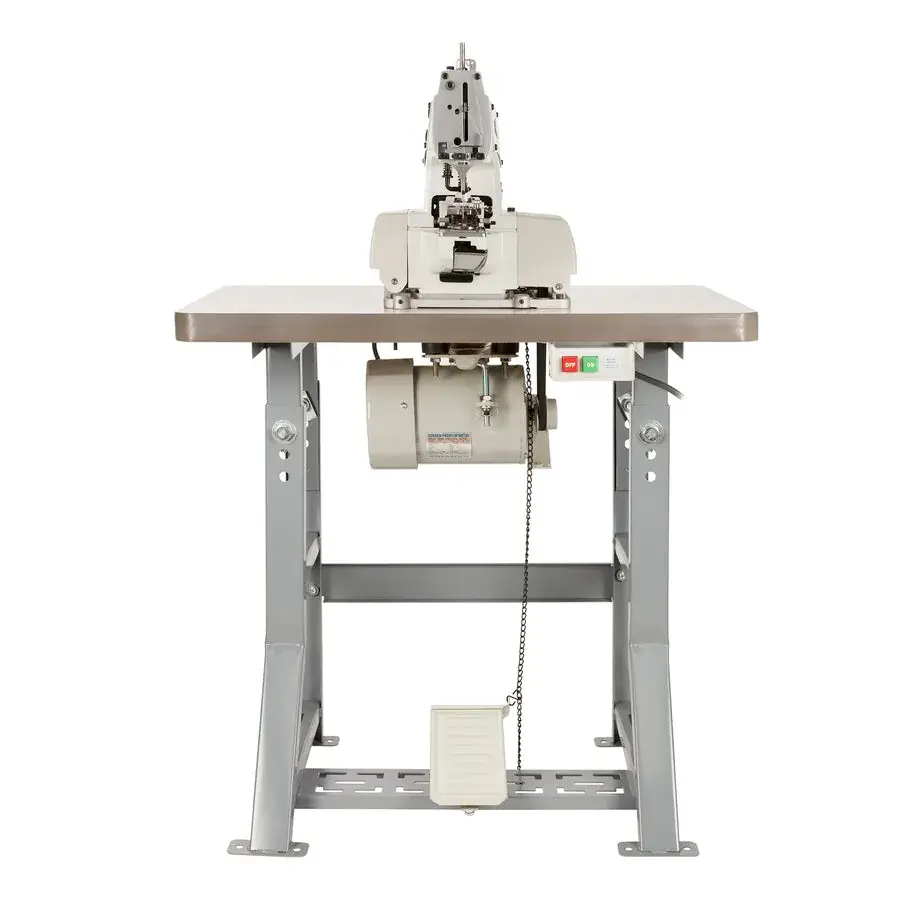

Single pedal operation
Automatic clamp lift after sewing cycle
Stitch range - 8-16-32 parallel stitches - no cam changes
Change from 2 hole to 4 hole operation by lever at operator's finger tips
Attachments easily installed
Interchangeable clamps for flat, shank, metal buttons, snap fasteners and label tacking
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Workspace | Standard Workspace |
| Functions | Standard or Full Function |
| Stitch Type | 101 |
| Speed (Max S.P.M.) | 1500 |
| Needle Bar Stroke | 1 59/64" (48mm) |
| Needle Used | 175X7 |
| Number of Stitches | 8-16-32 parallel stitches |
| Looper | B-372-213 |
Catalogue
The Consew 241-1K documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
