Product features
1 / 4

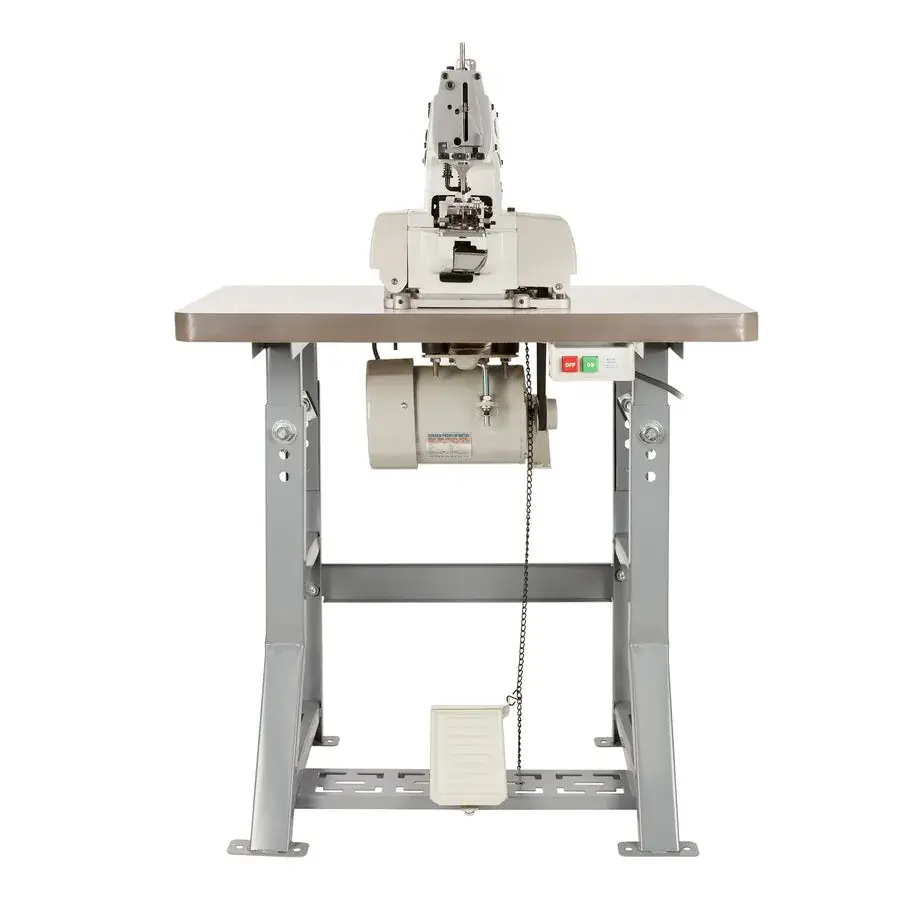

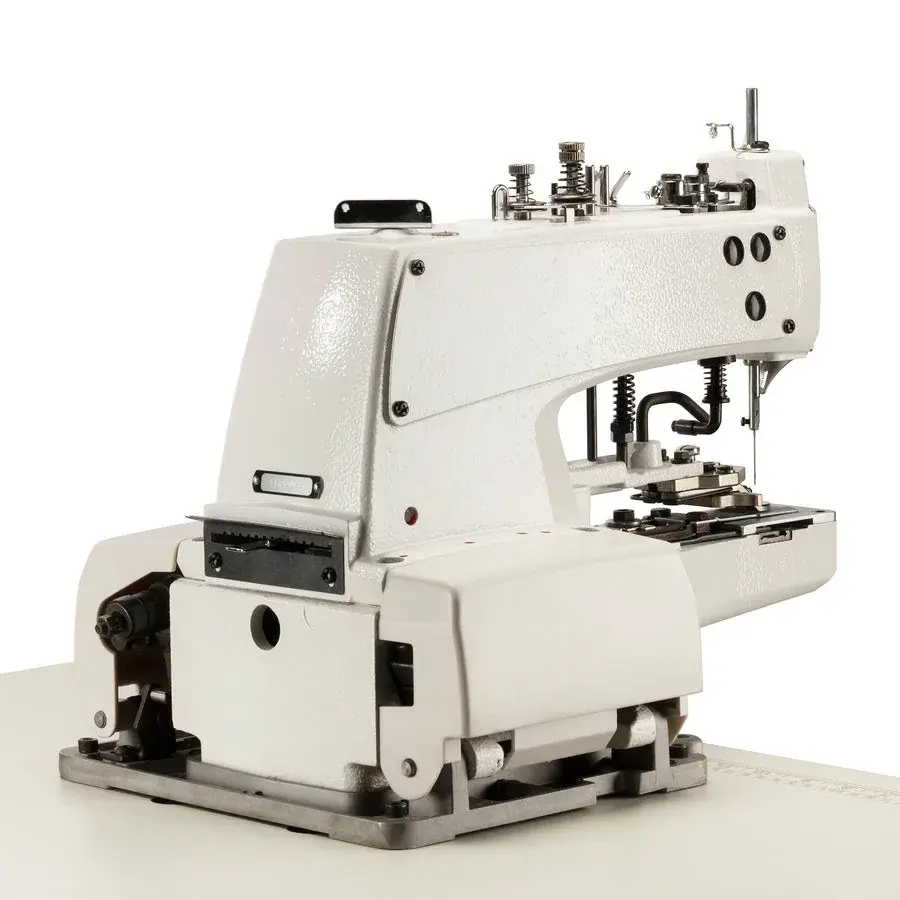

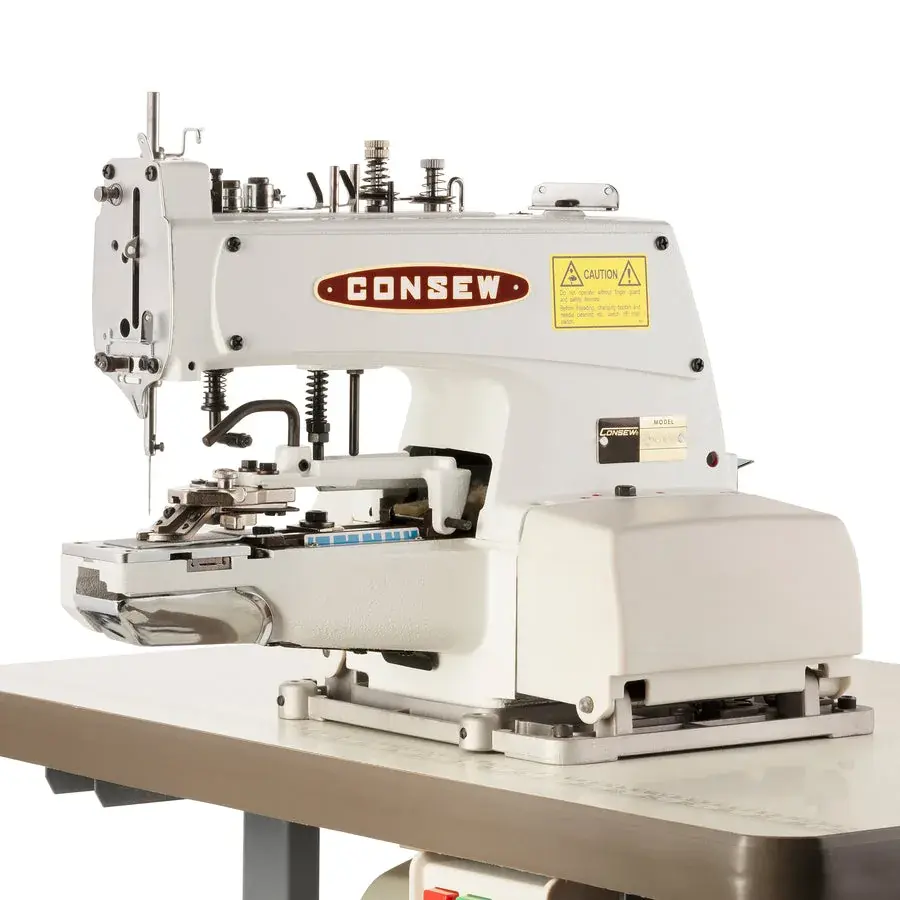

Tacker, Single Needle, Single Thread, Chainstitch, Cylinder Bed, Button Sewing and Tacking Machines
With: Vibrating Clamp, Single Pedal Operation, 8-16-32 Parallel Stitches
Applications
Designed to sew two and four-hole buttons on light to medium materials
Suitable for sewing snap fasteners, shank, flat, and metal buttons; hooks and eyes; and label tacking with suitable attachments
Thread severed by automatic clamp lift upon completion of the sewing cycle
Features an automatic scissor-action thread trimmer with stationary and moving knife (cutting action simultaneous with the last stitch)
Particularly suitable for use with heavy cotton and synthetic threads
Features
Vibrating Clamp: Ensures secure button placement
Single Pedal Operation: Simplifies control
Automatic Clamp Lift After Sewing Cycle: Efficient and hands-free operation
Stitch Range: 8-16-32 parallel stitches with no cam changes
Change from 2-Hole to 4-Hole Operation: Lever at operator's fingertips for quick adjustments
Attachments Easily Installed: Versatile for various tasks
Interchangeable Clamps: For flat, shank, metal buttons, snap fasteners, and label tacking
Available as a Tacker: Clamp designed for draperies, labels, and basting
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Stitch Type | 101 |
| Speed, Max (S.P.M.) | 1500 |
| Needle Bar Stroke | 1 59/64" (48mm) |
| Needle Used | 175 x 7 |
| Number of Stitches | 8-16-32 parallel stitches |
| Looper | B-372-213 |
Catalogue
The Consew 241-1TK documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
