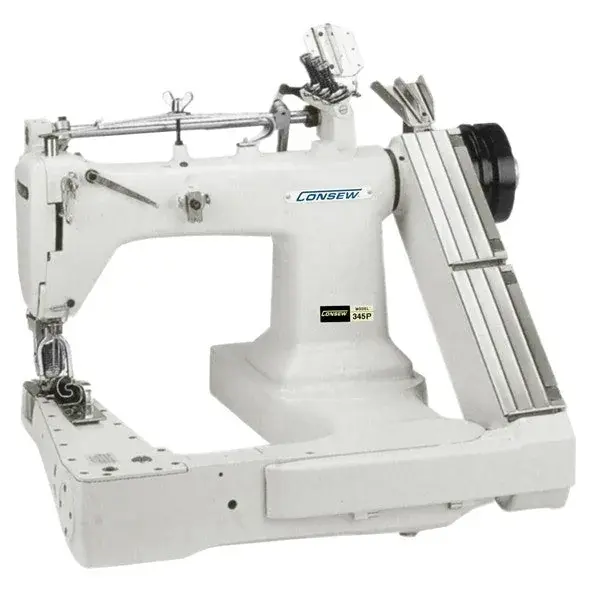

Consew 345-3P
High Speed, Feed-Off-The-Arm Type, Drop Feed, Double Chainstitch, Lap Seam Felling Machine, 3 Needles
Product features
High Speed, Feed-Off-The-Arm Type, Drop Feed, Double Chainstitch, Lap Seam Felling Machine, 3 Needles
With: Cloth Puller, Fully Automatic Lubrication, Chain Cutter, Screw Adjust Stitch Regulator
Applications
Sewing light to heavy weight materials
Suitable for stitching shirts, sleep-wear, jeans, pants, skirts, uniforms, heavy overalls, raincoats, and other similar products
Designed for any lap seam felling operation, including difficult-to-sew tubular products
Features
Fully automatic lubrication
Chain cutter
Cylinder arm for lap seam felling on narrow openings
Presser bar lift, controllable by knee lifter or foot pedal
Screw adjust stitch regulator
Cloth puller for consistent feeding of materials
Specifications
| Number of Needles | 3 (Three) |
|---|---|
| Feeding Mechanism | Drop Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 3600 |
| Clearance Under Presser Foot | 5/16" (8mm) |
| Stitch Length | 6 s.p.i. (4mm) |
| Needle | 149x5 |
| Stitch Type | 401 |
| Needle Bar Stroke | 1 3/8" (35mm) |
| Cylinder Diameter | 1 23/32" (53.5mm) |
Catalogue
The Consew 345-3P documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
