Product features
1 / 8

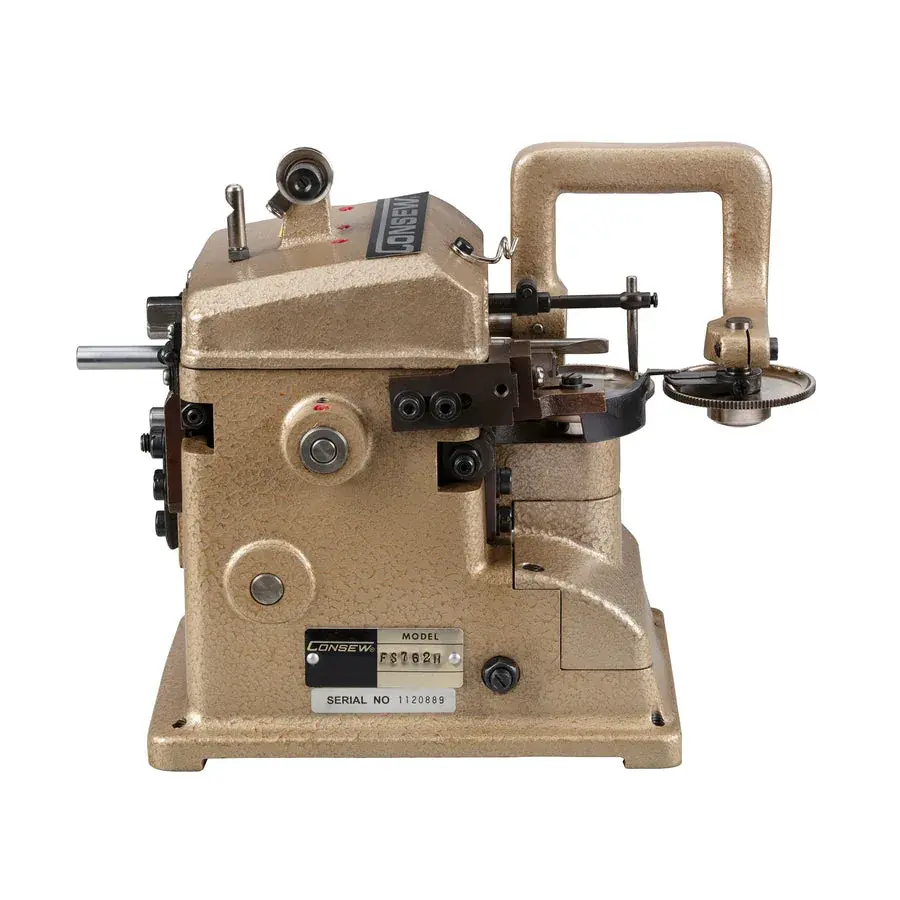

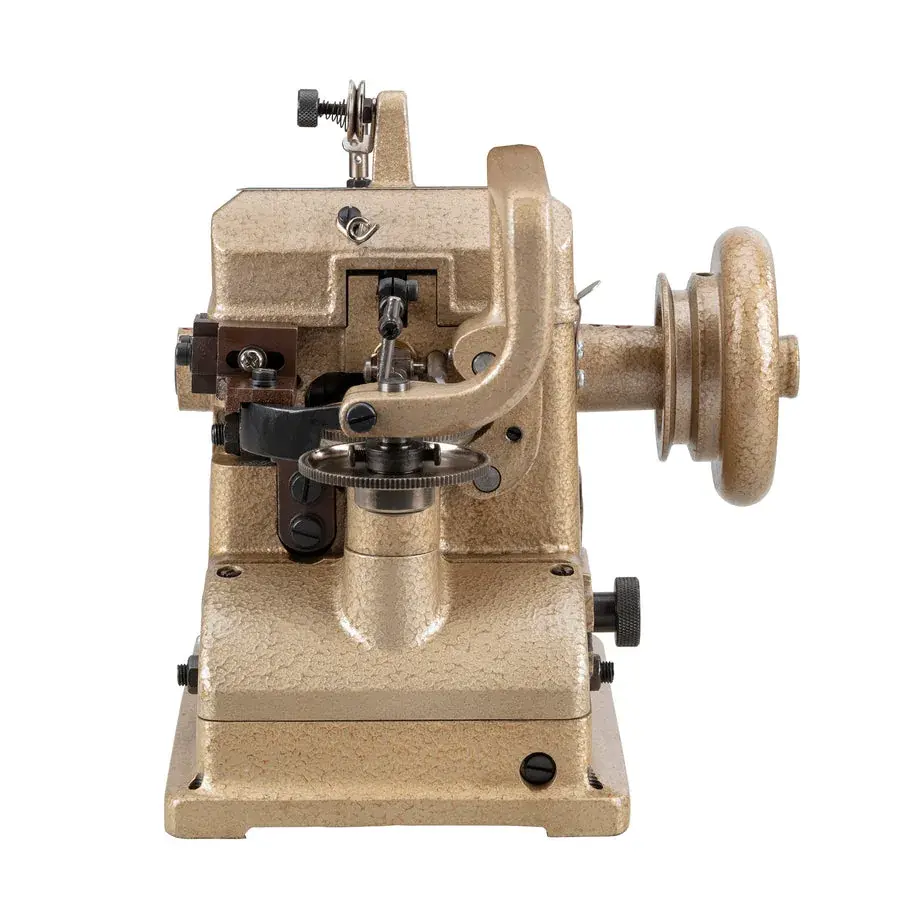

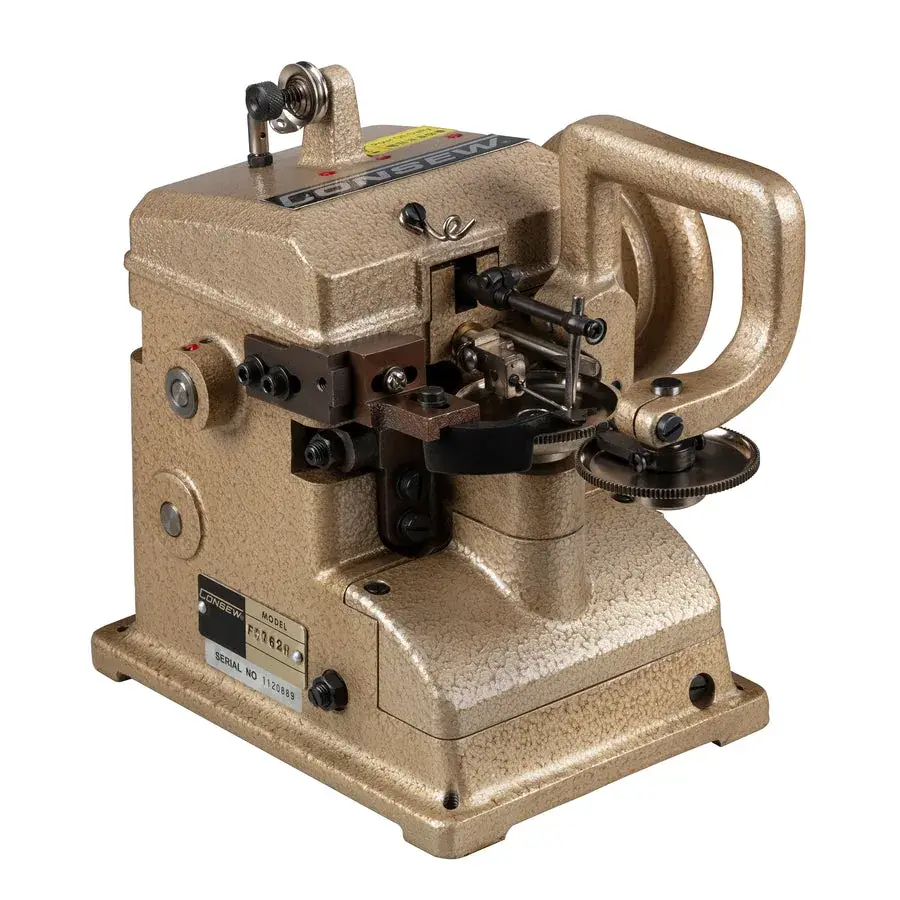

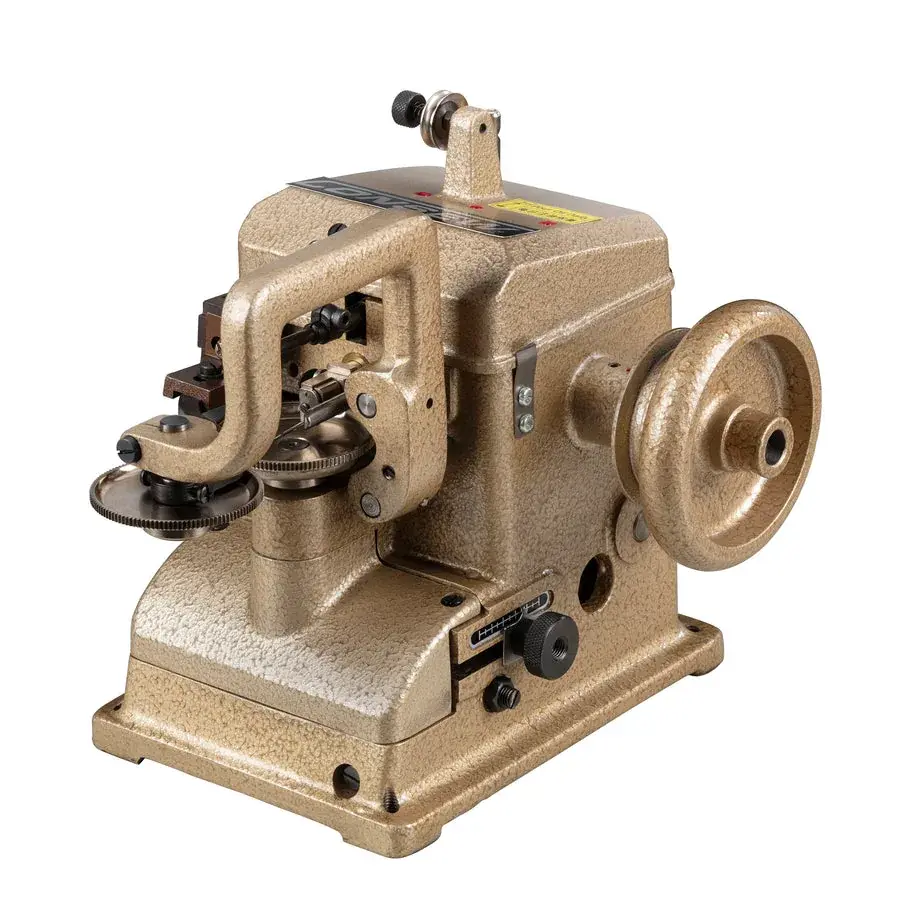

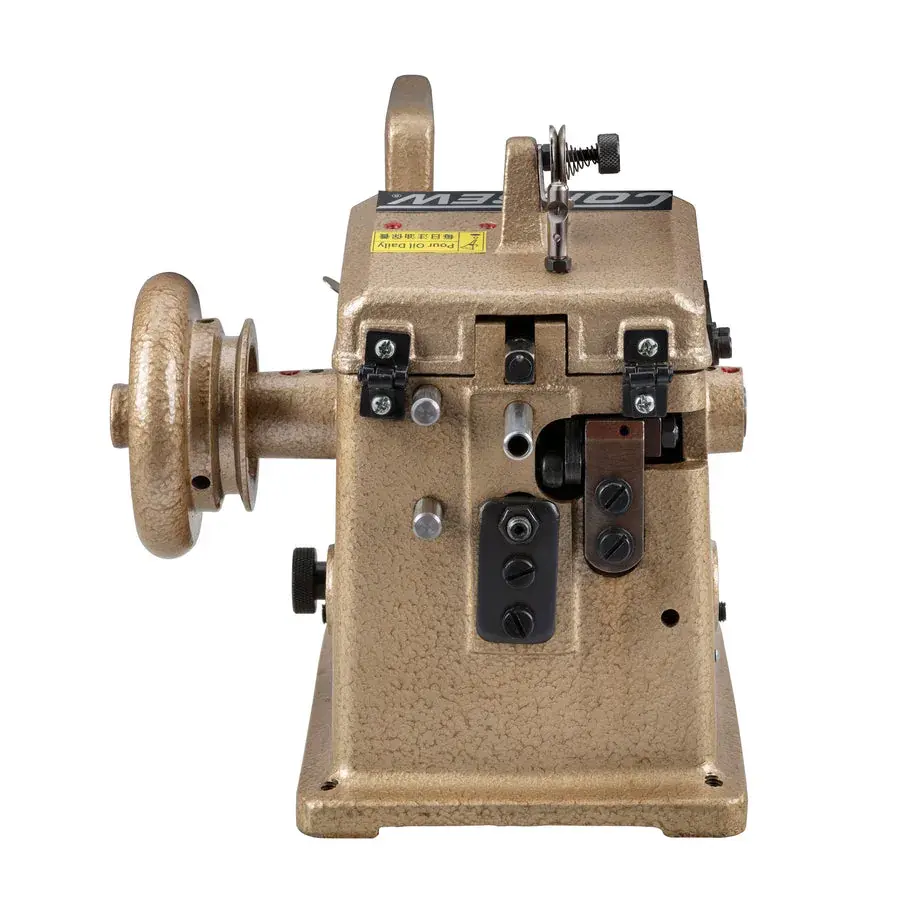

The Consew FS762H is a heavy-duty overseaming machine made for hemming and joining heavyweight skins and furs. It maintains a maximum operating speed of 2,000 stitches per minute and delivers strong seams with its one-thread chainstitch system. With a seam depth of 35 mm, the FS762H is suited for handling thick materials like sheepskin with ease and reliability.
Applications
Designed for hemming and joining thin to thick materials such as furs, leathers, vinyls, and other plastic materials
Suitable for hemming and joining gloves, slippers, fur coats, wet suits, sheepskin coats, and other sheepskin products
For heavyweight skins and furs
Features

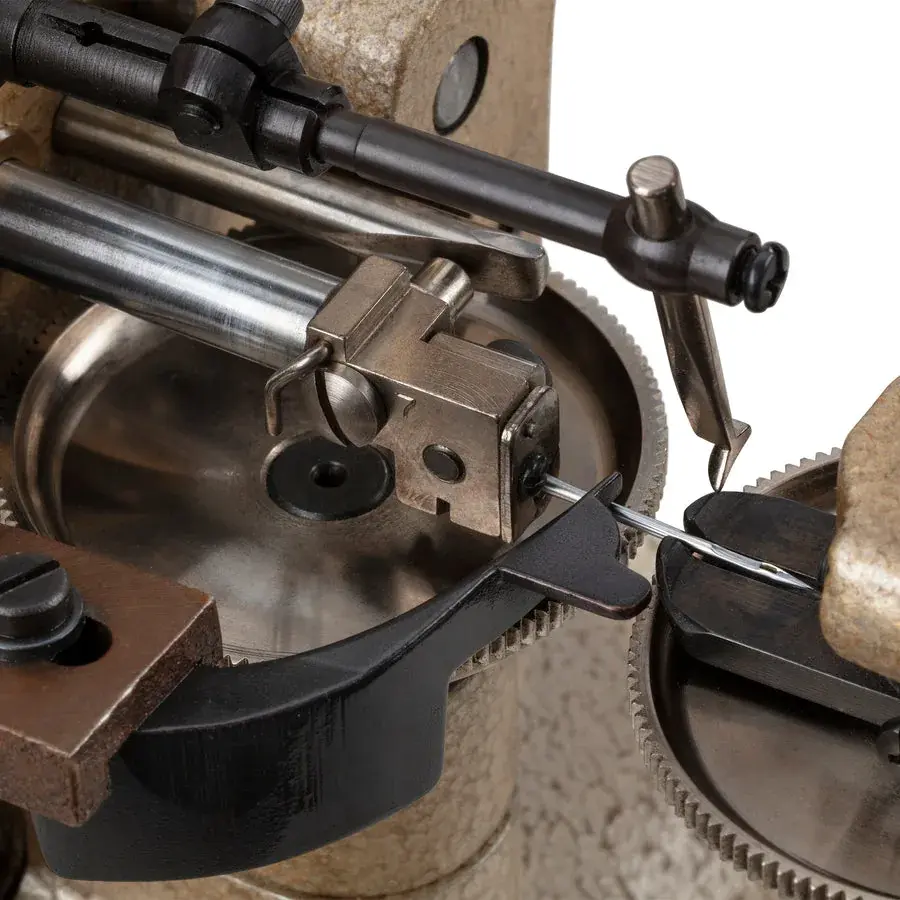

Disc feed, overseaming machine
Chainstitch, one thread
Two thread machines available
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (s.p.m.) | 2000 |
| Needle Bar Stroke | 1" (25mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Needle | 81 x 3 |
| Seam Depth, Max | 3/16" (5mm) |
| Length of Arm | 4 11/32" (110mm) |
Catalogue
The Consew FS762H documents Consew publishes, on their own site. They open in a new tab.
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
