Product features
1 / 8

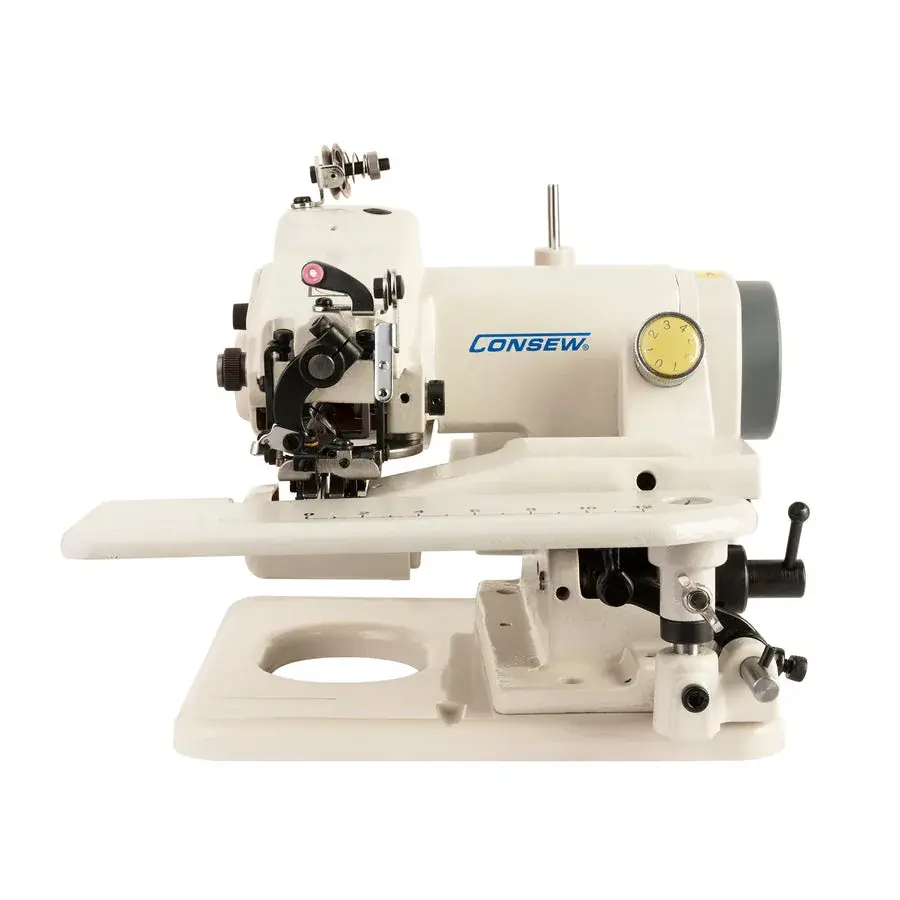

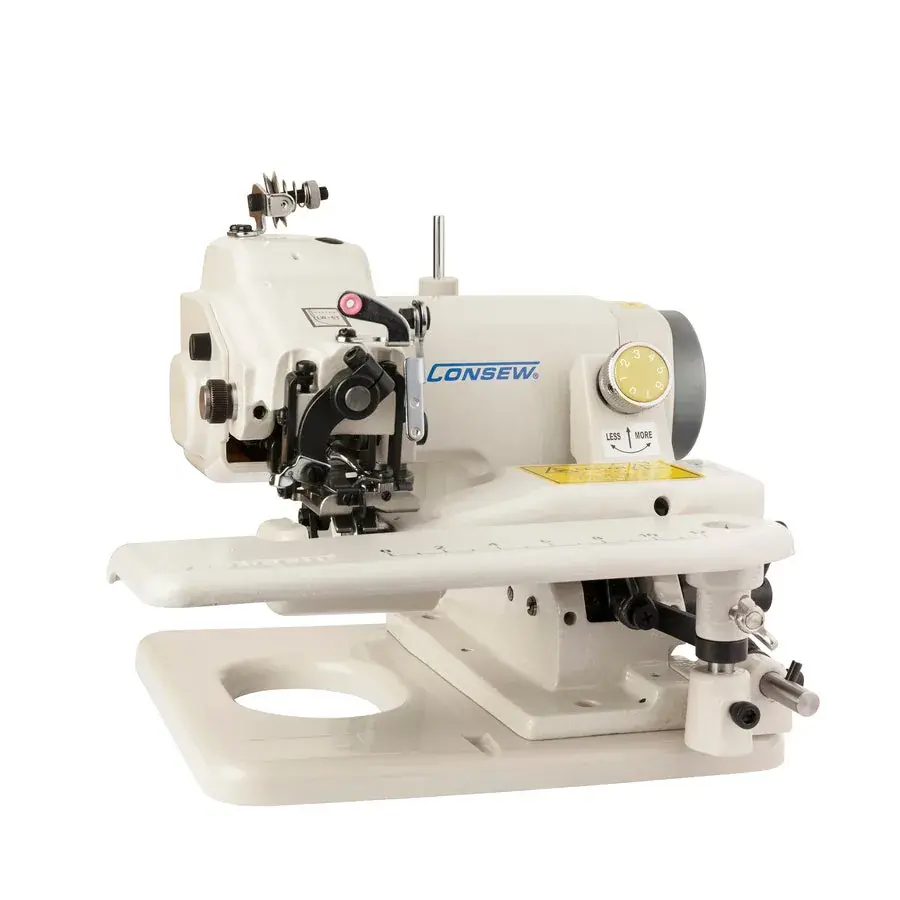

All purpose, portable, single thread, chainstitch, blindstitch machine
With: Skip and non-skip stitch lever adjustable thread tension
1-to-1 non-skip and 2-to-1 skip stitch

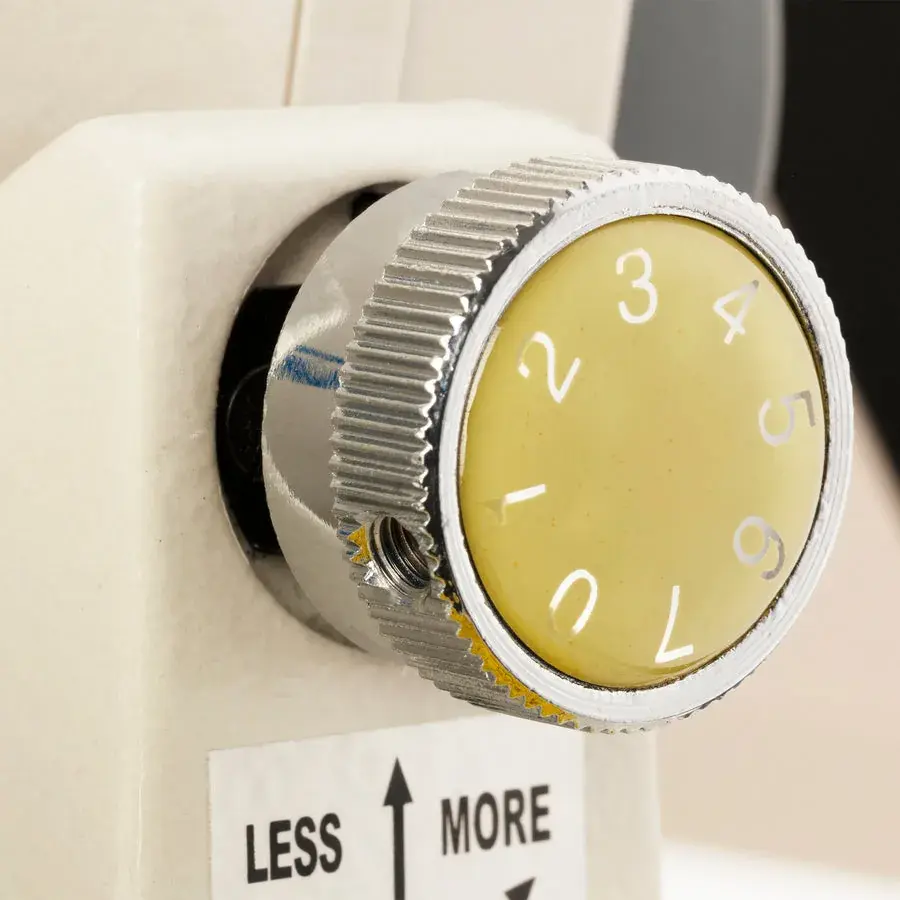

Stitch penetration and stitch length adjustment dials give you big-machine features in a light-weight, compact and fully portable unit. Clamping system mounts securely to most tables.
Applications
The Consew Model 105-10 / 10T is suitable for a wide range of products such as wearing apparel, linens, towels, bedspreads, shirts, shop coats, curtains, banners, emblems, blankets, table cloths, coats, and caps. It is particularly useful for laundries, camping outfitters, upholsterers, drapery shops, uniform clothing suppliers, linen suppliers, and sporting goods stores. Whether for chainstitching or drop/moss stitching, this machine handles it all with ease and precision.
Features
1 to 1 non-skip stitches, typical operations include felling edge tapes. bottoms of trousers, cuffs, wigging in sleeves, facings to canvas and knit goods, turned-up bottoms of fully lined coats, padding collars and lapels, and reinforcing trouser seats
2 to 1 skip stitch for hemming dresses, skirts, slacks, trousers, sportswear, ladies coats, draperies, blouses and other articles
Suitable for felling operations requiring a skip stitch to simulate hand-stitching
2 to 1 skip stitch is recommended for synthetics and other lightweight materials and 1 to 1 for heavier cotton, woolen and linen goods
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Stitch Type | 103 |
| Speed, Max (S.P.M.) | 1000 |
| Max Stitch Length | 3 1/2 s.p.i. (7mm) |
| Work Space | 4" (100mm) |
| Looper | 471 |
Catalogue
The Consew 75T documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
Other models · Blindstitch
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
