Product features
1 / 8

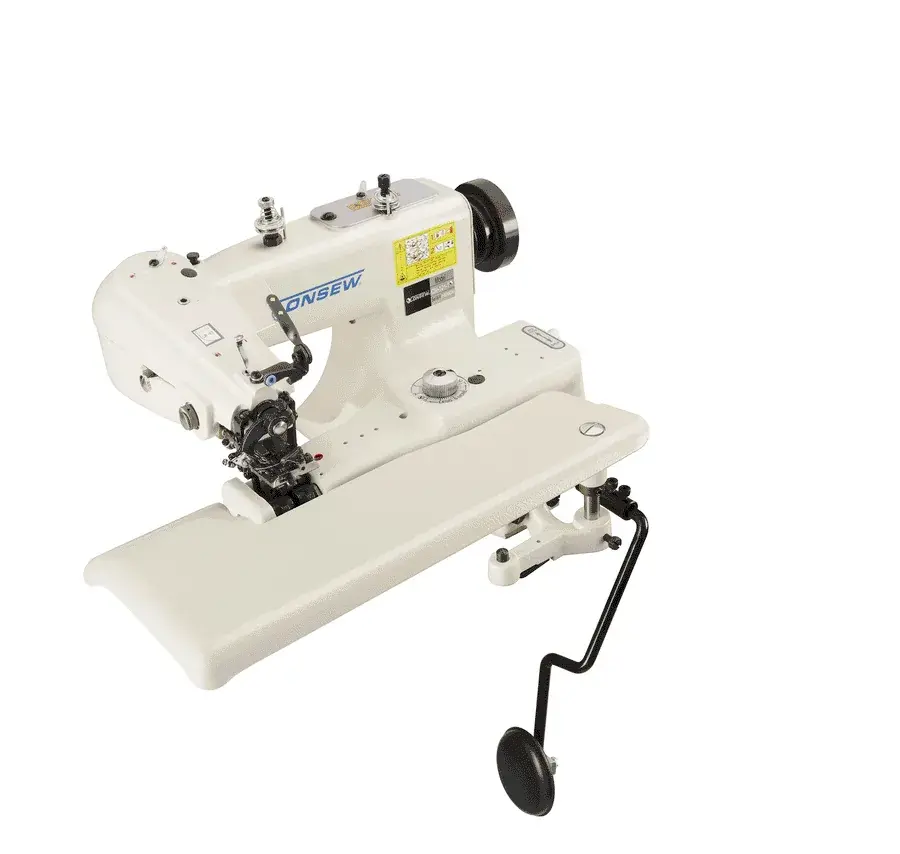

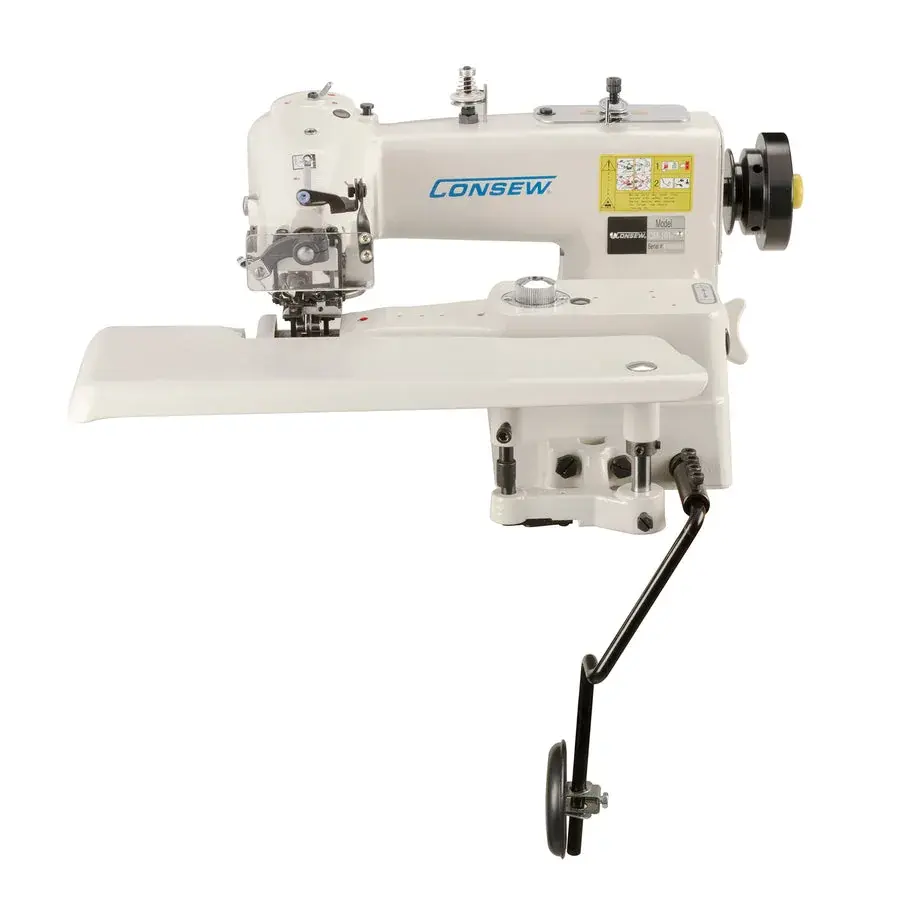

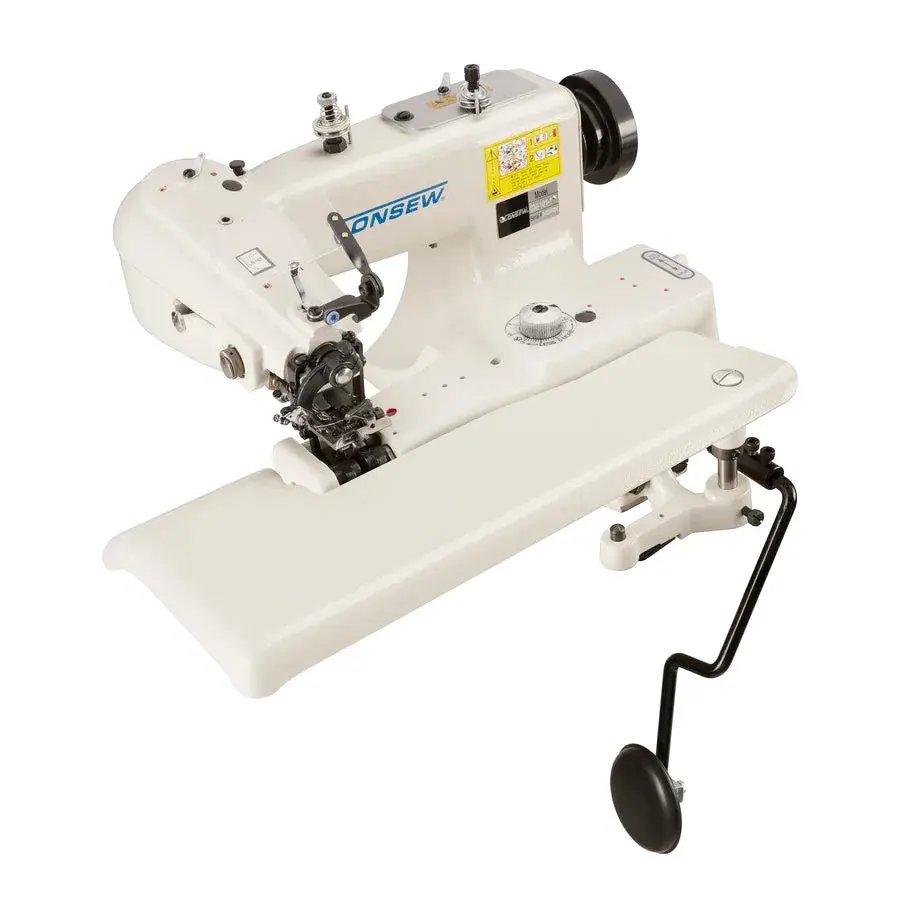

The Consew Model CM-101-1 is a compact and efficient blindstitch sewing machine specifically designed for hemming drapery and curtain panels. Its streamlined design makes it ideal for low-volume production and sample rooms where space and ease of use are essential. Featuring an adjustable stitch penetration system and a skip stitch mechanism, the CM-101-1 offers clean, nearly invisible hems on a wide range of fabrics. Its user-friendly controls and smooth operation make it an excellent choice for professionals seeking consistent blindstitch results in light industrial or custom workroom settings.
Applications
Suitable for sewing various materials, including synthetics, woolens, cottons, fabrics, and knits
Ideal for felling edge tapes, bottoms of trousers, cuffs, wigging in sleeves, facings to canvas and knit goods, and turned-up bottoms of fully lined coats
Used for padding collars and lapels, and reinforcing trouser seats
Works well for hemming dresses, skirts, slacks, trousers, sportswear, ladies' coats, draperies, and blouses
2 to 1 skip stitch simulates hand-stitching, perfect for lightweight synthetics and delicate fabrics
Features

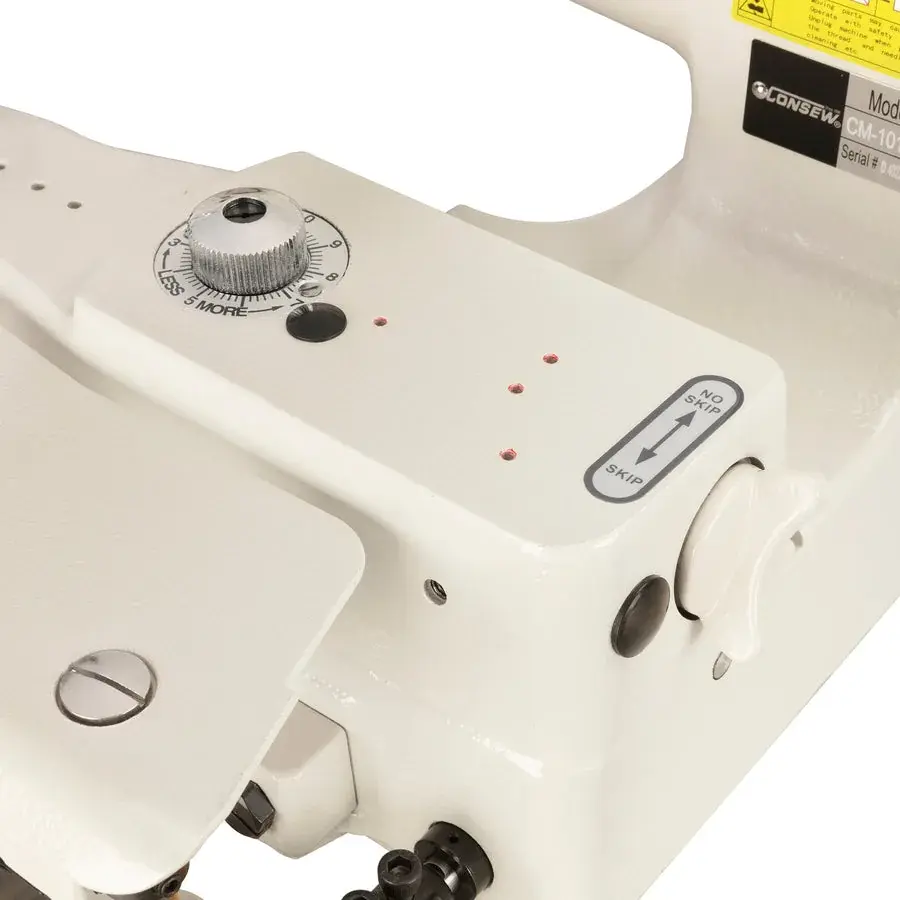

Skip and non-skip stitch lever

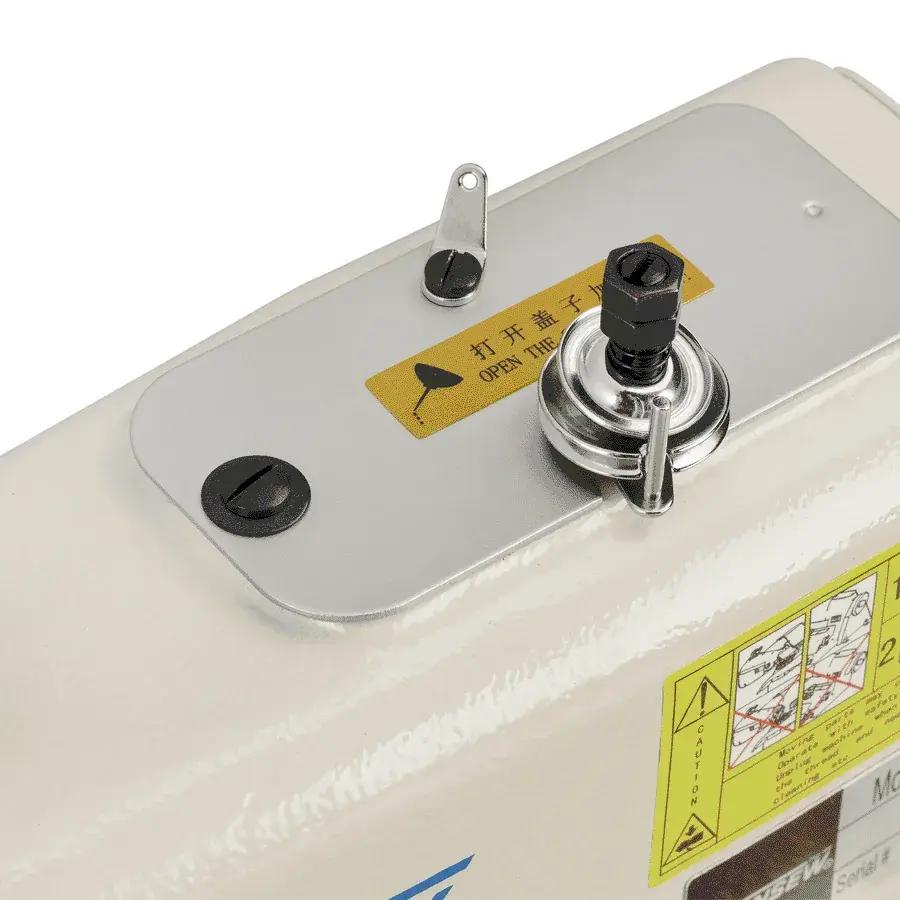

Adjustable thread tension
1 to 1 non-skip stitch and 2 to 1 skip stitch options

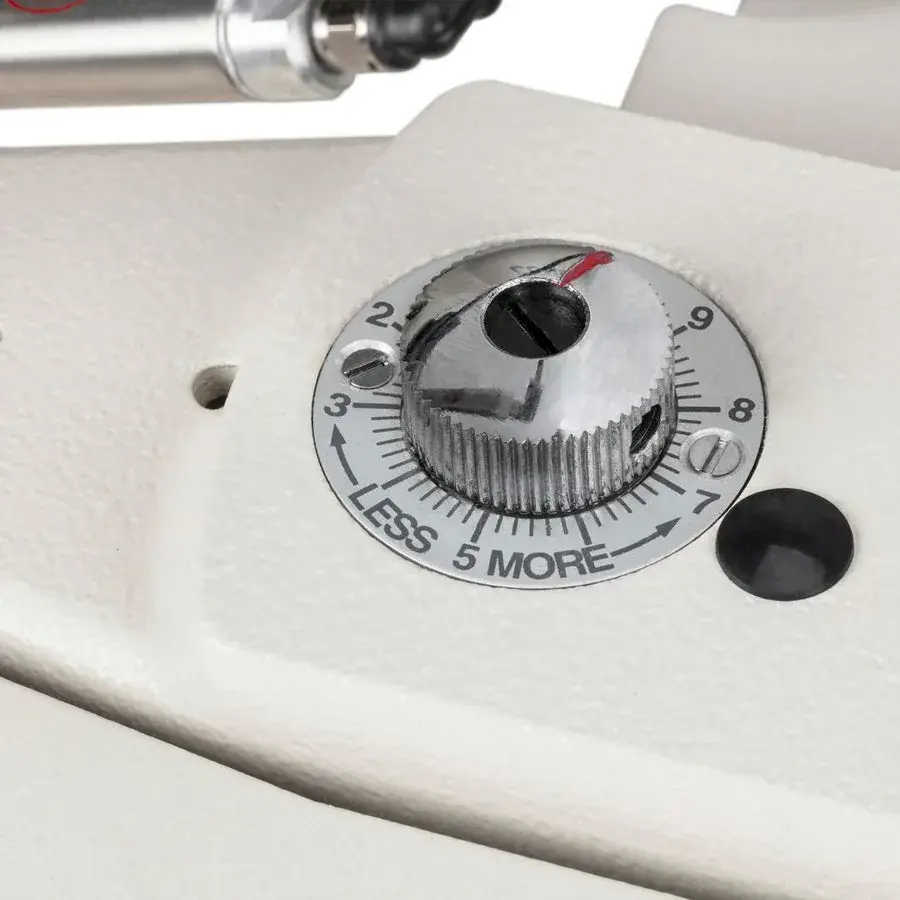

Stitch depth penetration and stitch length adjustment dials

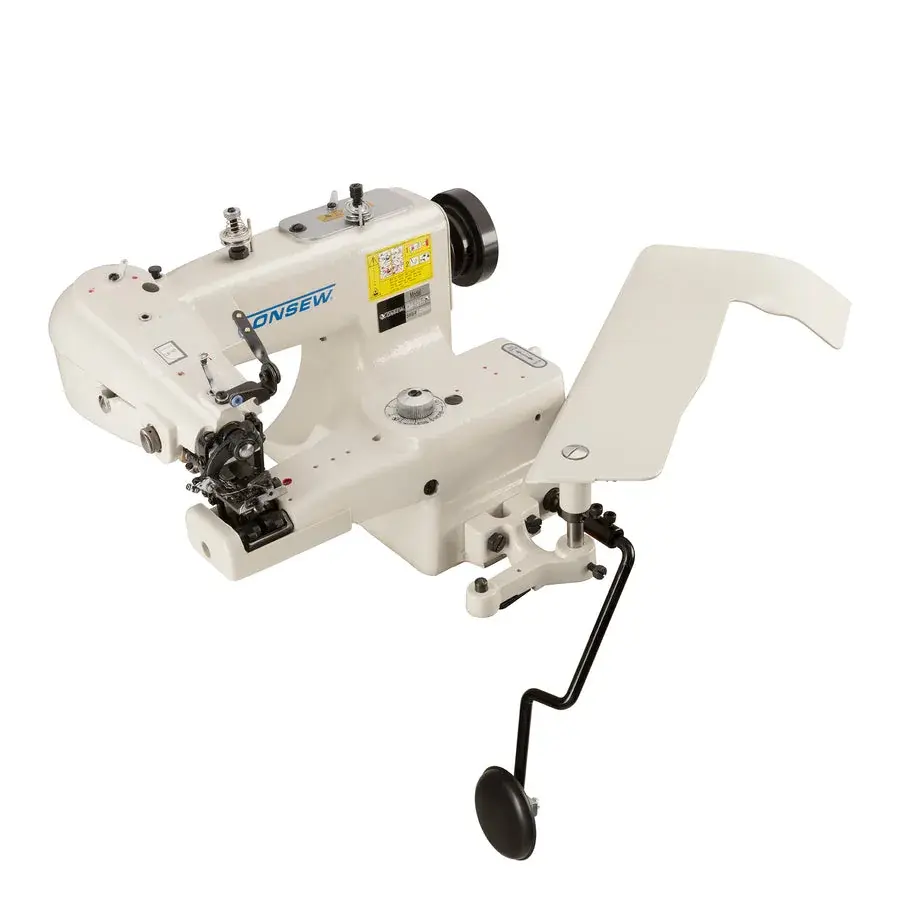

Swing-away work plate for extended working space

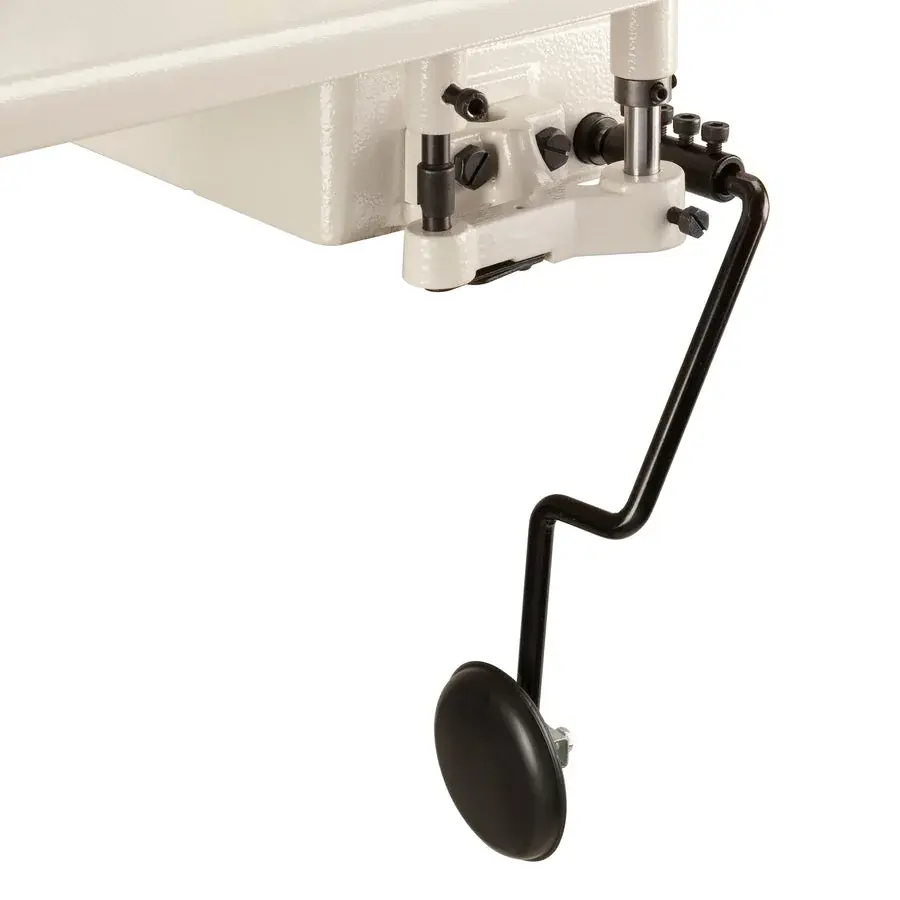

Knee-operated feed plate lowers for easy insertion and removal of workpieces
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Drop Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Stitch Type | 103 |
| Max Speed (S.P.M.) | 2500 |
| Max Stitch Length | 1/4" - 3/8" (3-8mm) |
| Work Space | 7" (180mm) |
| Looper | 162 |
Catalogue
The Consew CM-101-1 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
