Dürkopp Adler
860
With powerfull feeding system for topstitching side seams in jeans and casual trousers
Product features
As single or double needle with perfect stitch pattern
The post bed machine 860 was specially designed to efficiently topstitch side seams in jeans and casual trousers. It is unbeatable as single and twin needle machine.
Your benefits at a glance

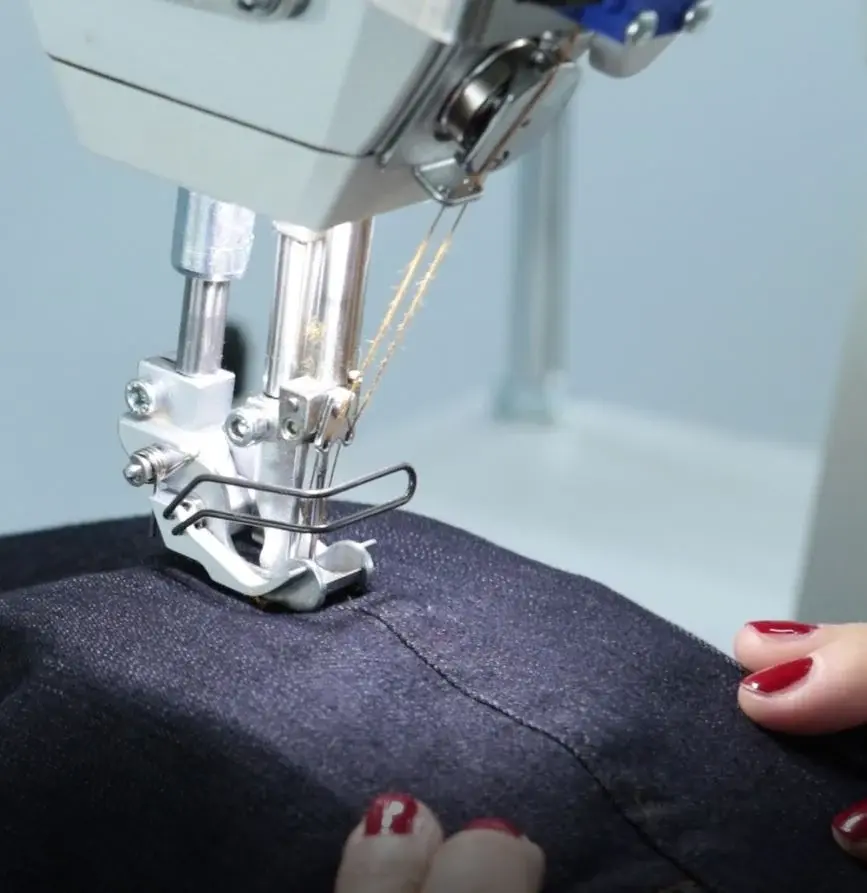

Perfect transport
Triple feed - suitable for any fabric thickness bottom feed, needle feed and alternating foot-top feed
With the triple feed and available sewing attachments, you can easily sew light chinos/light fabrics and heavy jeans or work trousers.

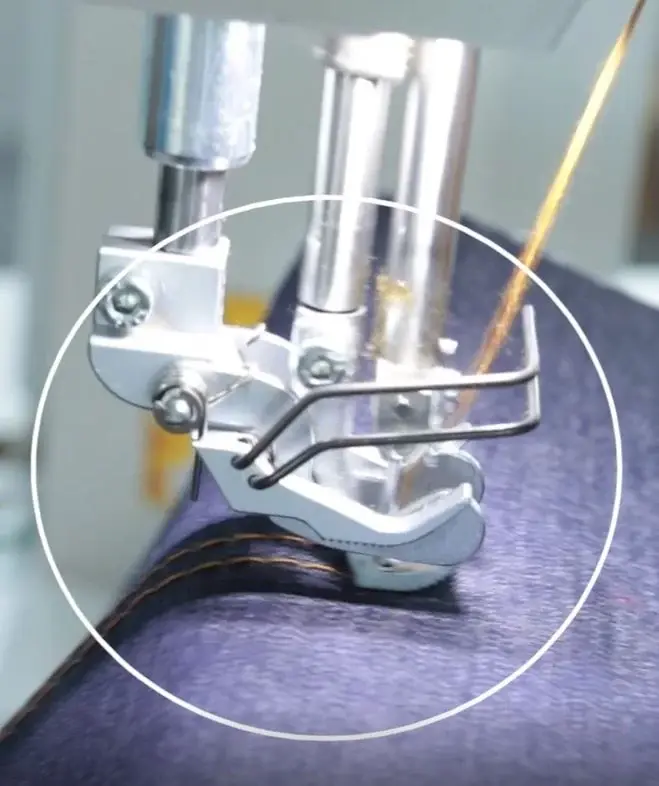

Excellent climbing qualities
Optimal climbing qualities
Especially when topstitching the side seam, you will come across dividing seams such as the pocket opening and yoke. This is where the switchable 2nd presser foot stroke is invaluable for convincing quality.
Optimal shape

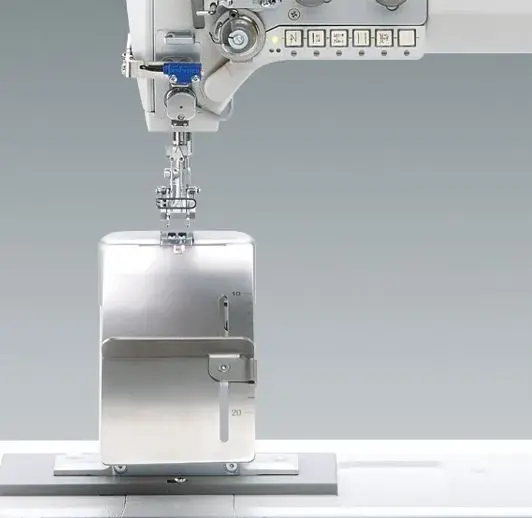

Support table with edge guide for efficient working without previous marking for seam lengths up to 200 mm
When designing the machine, special attention was paid to the ergonomic handling of the operator.The result is a sewing support element that is perfectly suited for this operation.Loading and correct positioning of the fabric could not be easier.

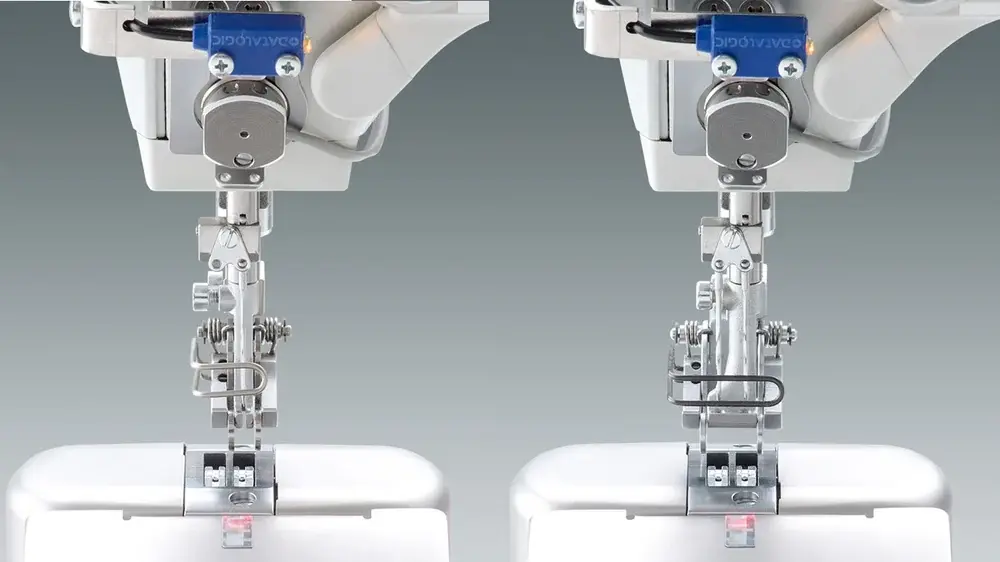

Easy conversion
Easy change from 2- to 1- needle
A special asymmetric sewing unit allows a special conversion from two to one needle.Thanks to an asymmetric presser foot for two-needle applications and a symmetric presser foot for single-needle applications, both double and single seams can be sewn only for two-needle machine.

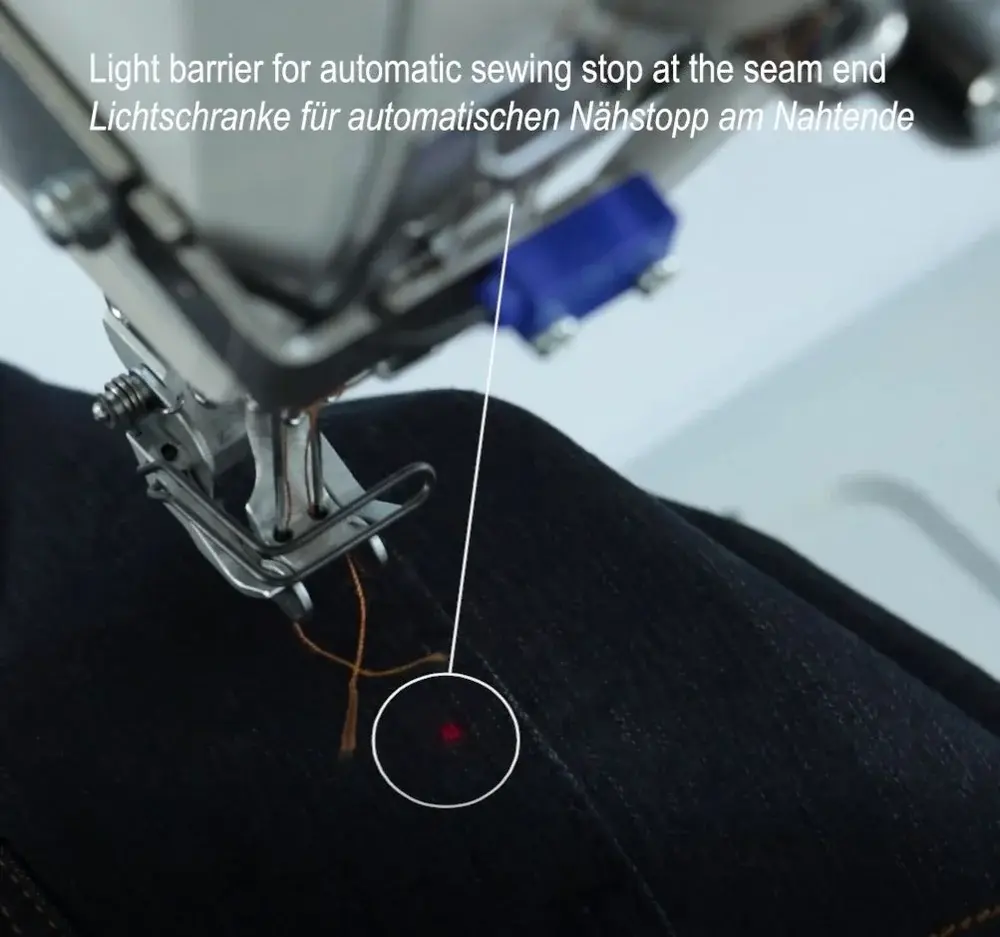

Light Barrier for automatic sewing stop at the seam end
Pneumatic additional thread tension
Pneumatic additional thread tension for excellent stitch formation when sewing over thick spots
Integrated maintenance indicator

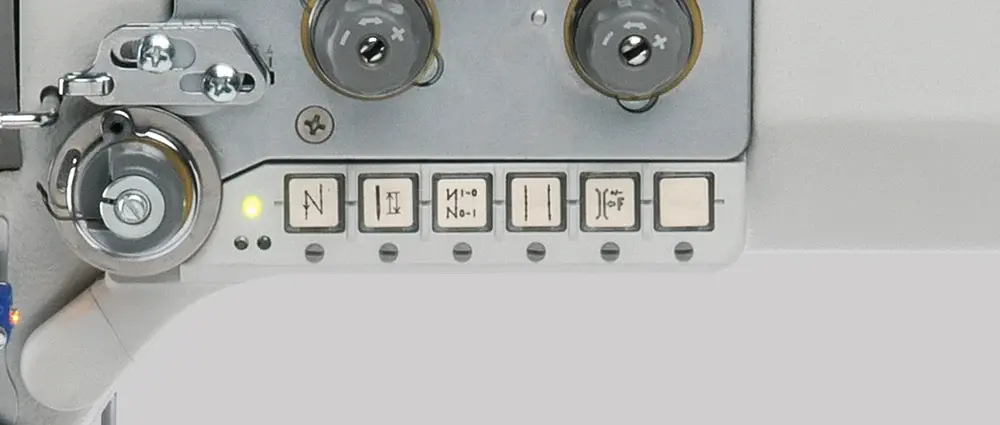

Integrated 6-function keypad with ergonomically arranged favourite key
Up to 9 mm long stitches for standard seams and decorative topstitchin
The extremely high sewing foot lift up to 20 mm max. facilitates the feeding and removing of bulky workpieces
Examples of use

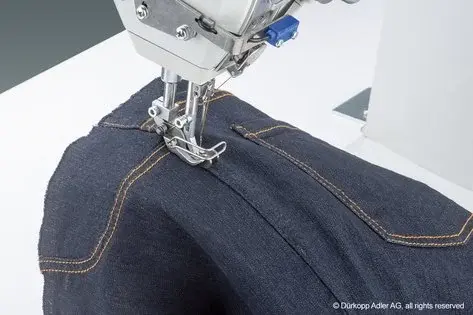

Sewing start – waistband edge

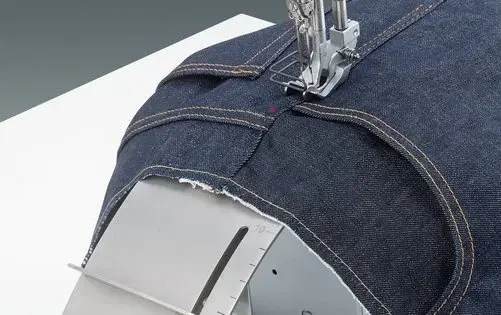

Sewing start – waist
Performance 860
Specifications
| Model | 860-190322 | 860-290322 |
|---|---|---|
| Additional thread tension, A= Automatic, Ma=Manual | ● A | ● A |
| Air requirement per stroke / Air pressure [NL] [bar] | 0,7 / 6 | 0,7 / 6 |
| Bottom feed, needle feed and alternating foot top feed | ● | ● |
| Clearance when Sewing/Lifting A = Sewing [mm] max. B = Lifting [mm] max. | A= 10 / B= 20 | A= 10 / B= 20 |
| Dimensions (Length, Width, Height) [mm] | 1.060 / 600 / 1.700 | 1.060 / 600 / 1.700 |
| Integrated 2nd qick stroke adjustment Quick stroke adjustment via knee switch and foot stroke adjustable by dial with simultaneous automatic speed limitation according to the foot stroke and feeding length. | ● | ● |
| Integrated 2nd stitch length adjustment | ● | ● |
| Integrated LED sewing light with dimmer | ● | ● |
| Lockstitch (301) | ● | ● |
| Needle size [Nm] max. | 100-130 | 100-130 |
| Needle system [Nm max.] * depending on the sewing equipment | 134-35 | 134-35 |
| Nominal voltage [V], [Hz] | 1x230V, 50 / 60 Hz | 1x230V, 50 / 60 Hz |
| Oil maintenance indicator | ● | ● |
| Post bed machine with clearance C [mm] D [mm] | C=335 / D=297 | C=335 / D=297 |
| Program control, operating panel OP1000 | ● | ● |
| Quick stroke adjustment via knee switch and foot stroke adjustable by dial with simultaneous automatic speed limitation according to the foot stroke and feeding length | ● | ● |
| Rated power [W] max. | 375 | 375 |
| Reflecting light barrier for automatic sewing stop at fabric end | ○ | ○ |
| Seam backtacking A = Automatic, Ma= Manual ***= programmable, stitch length 0,5-6,5mm | ● A | ● A |
| Sewing foot lift, automatic | ● | ● |
| Sewing Material SL = very light / L= light / LM = light to medium heavy / M= medium heavy / MS = medium heavy to heavy / S = heavy | M / MS | M / MS |
| Single needle | ● | ○ |
| Stitch count | ● | ● |
| Stitch length [mm] max. | 1-9 | 1-9 |
| Stitches/min. max. *= depending on foot stroke **= depending on foot stroke and stitch length *** = in case of twin needle / three needle version less speed possible – dependent on needle distance ****= selectable per step *****= depending on the use of the stitch loosening device ******= max. 2,500 stitches in combination with conversion kit “Heavy” *******= The sewing speed depends on the type of cam used | 2.500* | 2.500* |
| Stroke of the alternating sewing feet [mm] max. | 9 | 9 |
| Synthetic [Tkt.] max. * = Max. thread size upper thread: Tkt. 10/3, max. thread size Unterfaden: Tkt. 20/3 ** = Max. thread size upper thread: Tkt. 15/3; max. thread size Unterfaden: Tkt. 40/3 | 80 / 3 - 10 / 3 | 80 / 3 - 10 / 3 |
| Thread trimmer [approx. length of remaining thread in mm] max | ● 15mm | ● 15mm |
| Twin needle Needle distance [mm] max. *= other needle distances available on request | – | ● 3,2 / 4,8 / 6,4 / 7,2 / * |
| Vertical hook, large (L, Ø 26 mm) | ● | ● |
| Weight, sewing head [kg] | 68 | 70 |
● Standard ○ Optional
