Product features
1 / 2

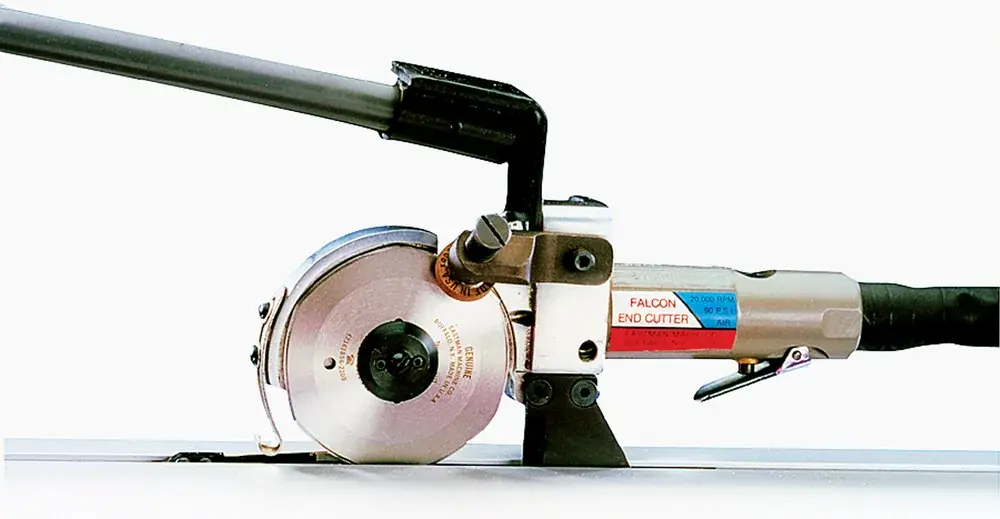

MODEL FAL-A – Eastman’s Falcon Air has superior balance and a specially designed Falcon track with air power to decrease heat build-up during cutting.
End cutters provide the means to increase speed, efficiency and accuracy in your end cutting operation.
The Falcon Air is perfect for end cutting fusible materials such as heavy rubber and plastic sheeting or for cutting in wet environments where electricity is not applicable.
Specially designed Falcon track with pneumatic powered cutting head to decrease heat build-up
Perfect for end cutting fusible materials such as reinforced vinyl and plastic sheeting
Equipped with a special 3.25 inch (8.25 cm) octagonal blade which creates a chopping action
Specifications
| Table Widths Available | 48 – 144 in. (1.22m – 3.66m) |
|---|---|
| Motors | 60-90psi |
| Horsepower | 0.10hp |
| Weight with Track & Lifters | 54 lbs. (24.49kg) |
| Standard Features | Cam Mount, Manual Switch, Pull Handle |
| Options | Manual Lifter, Bias Lifter, Material Alignment, Push Handle, Swivel Handle |
| Blade Size | 3.25 in. (8.26cm) |
| Cutting Capacity | 0.5 in. (1.27cm) |
Catalogue
The Falcon® Air documents Eastman Machine publishes, on their own site. They open in a new tab.
Open the catalogue · Falcon Air End Cutter Brochure (PDF)Open the catalogue · Falcon Air Instruction Manual & Parts List (PDF)
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Eastman Machine. No prices or stock here: ask us and we will get back to you.
