Product features
1 / 2

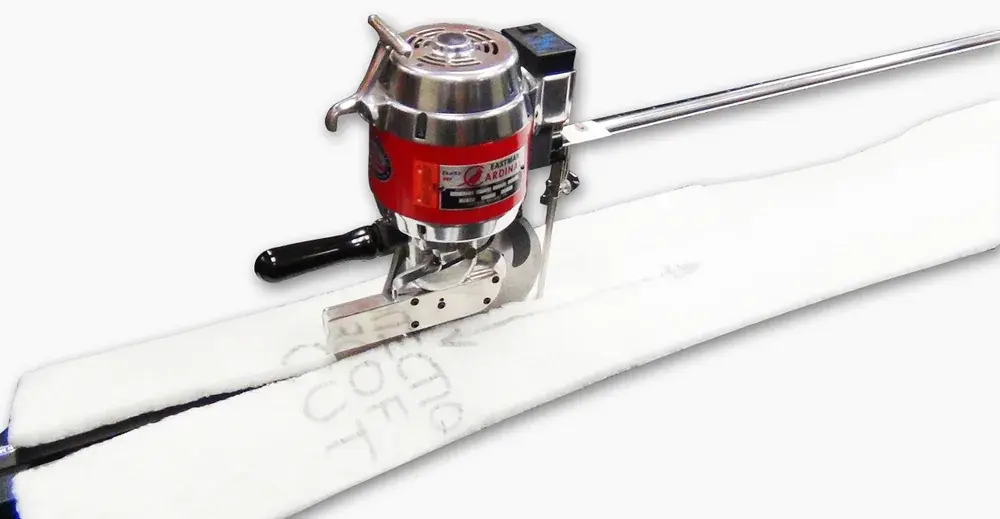

MODEL 562FALHD75X – Featuring Eastman’s Heavy-Duty 562 Cardinal Round Knife, mounted on a skate and bearing system and inside a track, has a cutting capacity of 2 inches (5.08cm); making it the industry’s most powerful and versatile cut-off machine.

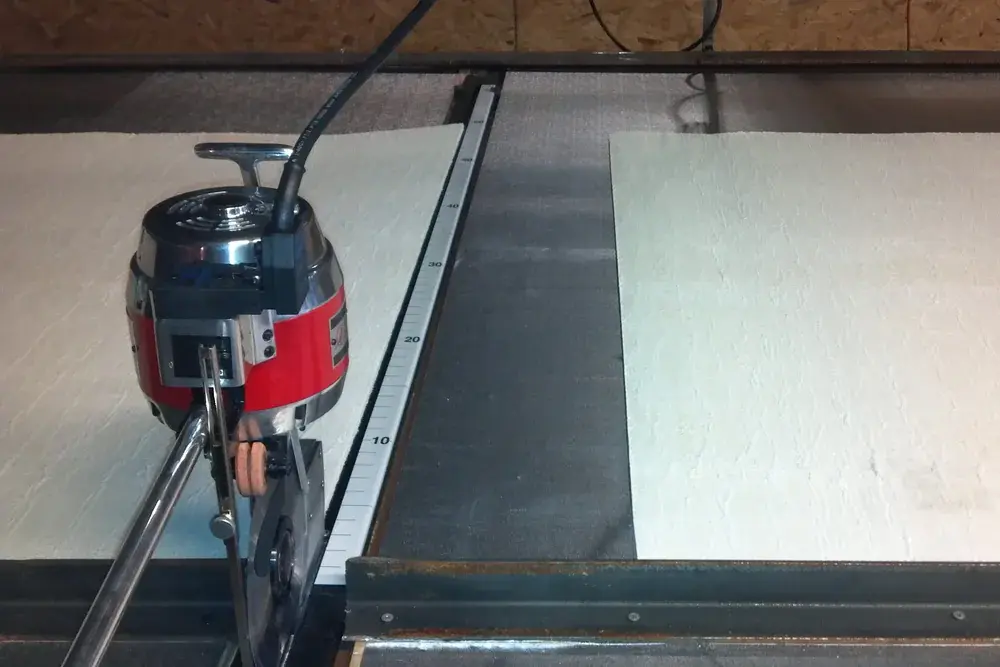

Featuring Eastman’s Heavy-Duty 562 Cardinal Round Knife, mounted on a skate and bearing system and inside a track, it is the ideal solution for difficult to cut materials, or materials that generate debris when being processed. A fantastic solution for straight cuts of insulation!
It can be attached to any type of cutting table with an easy-to-use clamping bracket.
The Heavy Duty Falcon has a “Quick-lift” lifting device allowing for manual spreading and cutting of goods such as heavy woolens, canvas and most industrial fabrics.
The 562 Falcon has a cutting capacity of 2 inches (5.08cm).
Cutting of wide material with wide table options (up to 144in. wide / 3.66m wide), with a long handle option or a push/pull handle option for extremely wide cuts needing more than one operator
Combination of torque and blade speed enables more cutting power for thicker or dense materials
Large skate with spring loaded bearings to prevent any sway in the cutter during operation
Specifications
| Table Widths Available | 48 – 144 in. (1.22m – 3.66m) |
|---|---|
| Motors | 110v, 1ph, 50/60Hz 220v, 1ph or 3ph, 50/60Hz |
| Horsepower | 0.65hp, 1ph 0.93hp, 3ph |
| Weight with Track & Lifters | 85 lbs. (38.56kg) |
| Standard Features | Heavy-duty steel track and skate system |
| Options | Manual lifter, Bias Lifter, Air Lifters, Material Alignment, Push Handle, Swivel Handle |
| Blade Size | 7.5 in. (19.1cm) |
| Cutting Capacity | 2 in. (5.10 cm) |
Catalogue
The Heavy Duty Falcon® 562 documents Eastman Machine publishes, on their own site. They open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Eastman Machine. No prices or stock here: ask us and we will get back to you.
Other end cutters models
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
