Product features
1 / 3

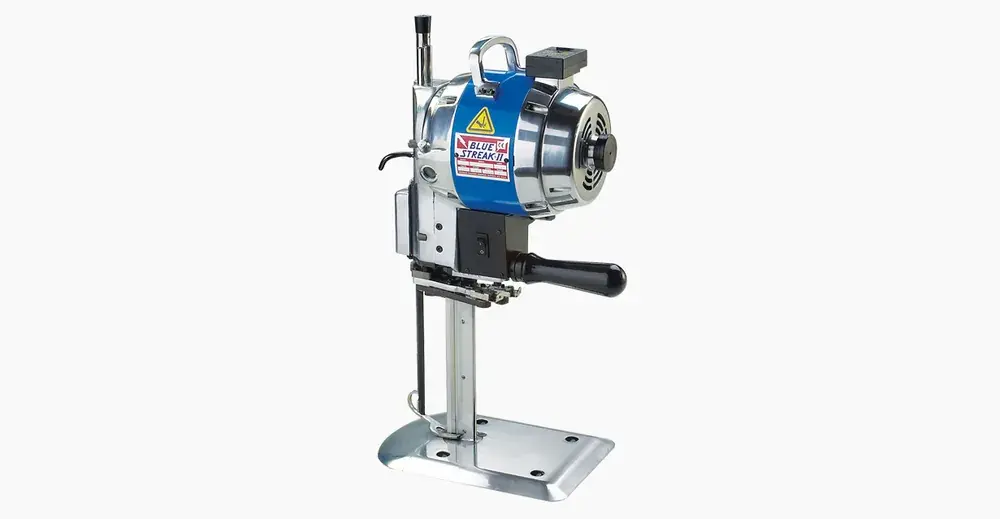

MODEL 629X – With versatility unmatched by any other straight knife, the Blue Streak II® is the obvious choice when one cloth cutting machine is required to perform many tasks.
The machine features a low profile, polished, streamlined baseplate is designed to reduce friction and distortion in the lay, regardless of the number of plies. Constructed of superior quality materials to ensure durability and longevity.
The Eastman 629X Blue Streak II is available in eight sizes, four strokes, and a multitude of electrical specifications.
Power to weight ratio offers easy handling and maneuvering, even for the tightest radius
Low-profile baseplate and narrow silhouette standard make cutting of intricate patterns and tight turns simple
Perfect fit and continuous running with cross heads, crank and knife slides that are machined to a tolerance within .0005″(0.0013cm)
Simple handling of the machine due to its low center of gravity
Low maintenance requiring only daily lubricating with the easy-to-use One Shot single-reservoir oiling system
Specifications
| Motors | 110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60Hz 380V, 3ph, 50Hz Standard: Single Speed Optional: Dual Speed |
|---|---|
| Horsepower | .65hp, 1ph .93hp, 3ph |
| Weight | 34 lbs. (15.4kg) |
| Blades | Standard: Carbon Steel Optional: High Speed Steel, PTFE Coated, Wave Edge, Wave Groove, Angled Tip |
| Belts | Standard: Medium Grit Optional: Fine, Coarse, Rough |
| Options | Micro Fog, Plastic Master, Auto Stop Note: Autostop, Micro Fog and Plastic Master are only available in 6 in. and 8 in. |
| Stroke Sizes | 1.125 in. (2.86cm) 1.25 in. (3.18cm) 1.5 in. (3.81cm) 1.75 in. (4.45cm) |
| Blade Sizes | 5 in. (12.7cm) 6 in (15.2 cm) 7 in. (17.7 cm) 8 in. (20.3 cm) 9 in. (22.8 cm) 10 in. (25.4 cm) 11.5 in. (29.2 cm) 13 in. (33 cm) |
| Cutting Capacity | 3.5 in (8.9cm) 4.5 in. (11.4cm) 5.5 in (13.9cm) 6.5 in (16.5cm) 7.5 in. (19.1cm) 8.5 in. (21.5cm) 10 in. (25.4cm) 11.5 in. (29.2cm) |
Catalogue
The Blue Streak II ® documents Eastman Machine publishes, on their own site. They open in a new tab.
Open the catalogue · Eastman Blue Streak II Brochure (PDF)Open the catalogue · Blue Streak II 629X Instruction Manual & Parts List (PDF)Open the catalogue · Spanish - Manual de Instrucciones y Lista de Piezas (PDF)
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Eastman Machine. No prices or stock here: ask us and we will get back to you.
