Product features
1 / 2

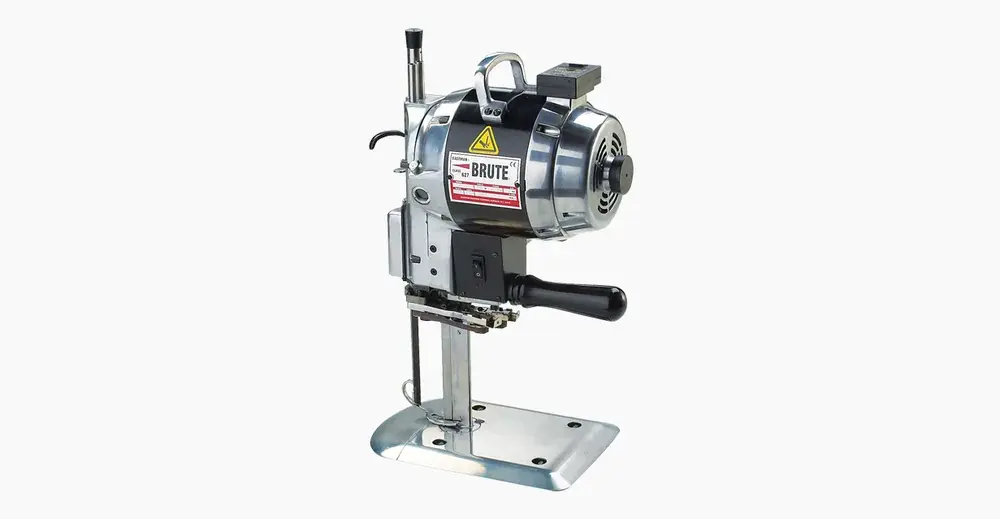

MODEL 627X – With a super-efficient and extra powerful motor, the 627X Brute straight knife is designed to cut the toughest fabrics or an increased number of ply.
With a super efficient and extra powerful motor, the Eastman 627X Brute straight knife machine is designed to cut the toughest fabrics or an increased number of ply.
The model 627X is Eastman’s most powerful straight knife cutting machine and is available in the same sizes, strokes, and electrical configurations as the standard Blue Streak II cutting machine.
All Eastman cutting machines are built with the highest grade materials available.
The Straight Knife Cutting Machine has an extra powerful motor, nearly twice the horsepower of the standard Blue Streak II model, up to 2.2hp

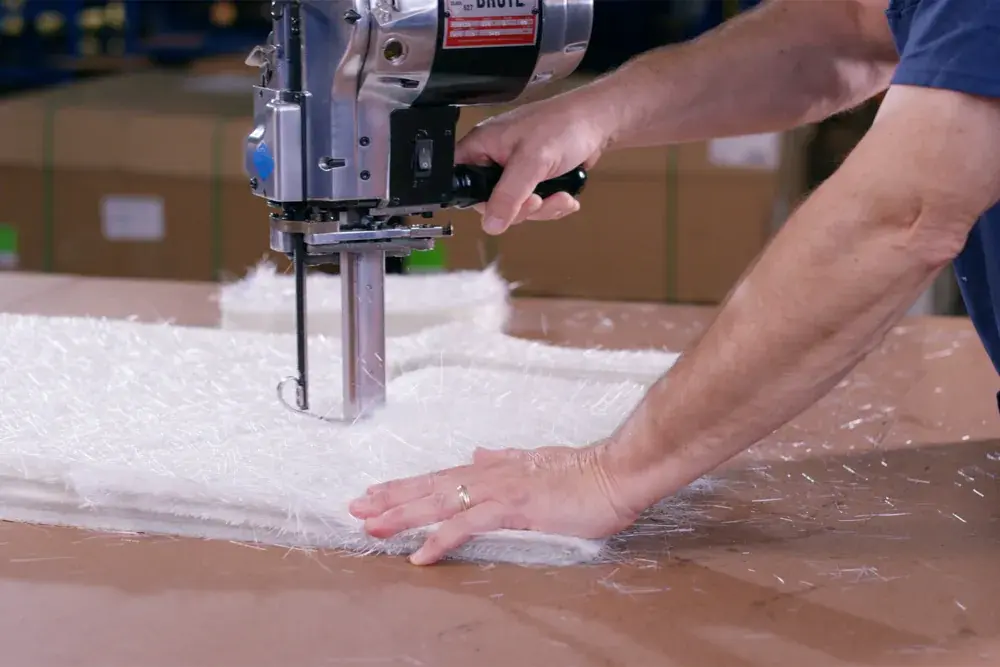

Designed to cut the toughest flexible materials and/or an increased number of ply
Available in the same sizes, strokes and electrical configurations as the standard Blue Streak II cutting machine
Specifications
| Motors | 110V, 1ph, 50/60Hz 220V, 1ph or 3ph, 50/60Hz 380V, 3ph, 50Hz Standard: Single Speed Optional: Dual Speed, Variable Speed |
|---|---|
| Horsepower | 1.25hp, 1ph 2.2hp, 3ph |
| Weight | 37 lbs. (16.7kg) |
| Blades | Standard: Carbon Steel Optional: High Speed Steel, PTFE Coated, Wave Edge, Wave Groove, Angled Tip |
| Belts | Standard: Medium Grit Optional: Fine, Coarse, Rough |
| Options | Micro Fog, Plastic Master, Auto Stop Note: Autostop, Micro Fog and Plastic Master are only available in 6 in. and 8 in. |
| Stroke Sizes | 1.125 in. (2.86cm) 1.25 in. (3.18cm) 1.5 in. (3.81cm) 1.75 in. (4.45cm) |
| Blade Sizes | 5 in. (12.7cm) 6 in (15.2 cm) 7 in. (17.7 cm) 8 in. (20.3 cm) 9 in. (22.8 cm) 10 in. (25.4 cm) 11.5 in. (29.2 cm) 13 in. (33 cm) |
| Cutting Capacity | 3.5 in (8.9cm) 4.5 in. (11.4cm) 5.5 in (13.9cm) 6.5 in (16.5cm) 7.5 in. (19.1cm) 8.5 in. (21.5cm) 10 in. (25.4cm) 11.5 in. (29.2cm) |
Catalogue
The Brute® documents Eastman Machine publishes, on their own site. They open in a new tab.
Open the catalogue · Manual Cutting Brochure (PDF)Open the catalogue · 627X Brute Straight Knife Instruction Manual & Parts List (PDF)Open the catalogue · 627X Brute Manual de Instrucciones y Lista de Piezas (PDF)
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Eastman Machine. No prices or stock here: ask us and we will get back to you.
