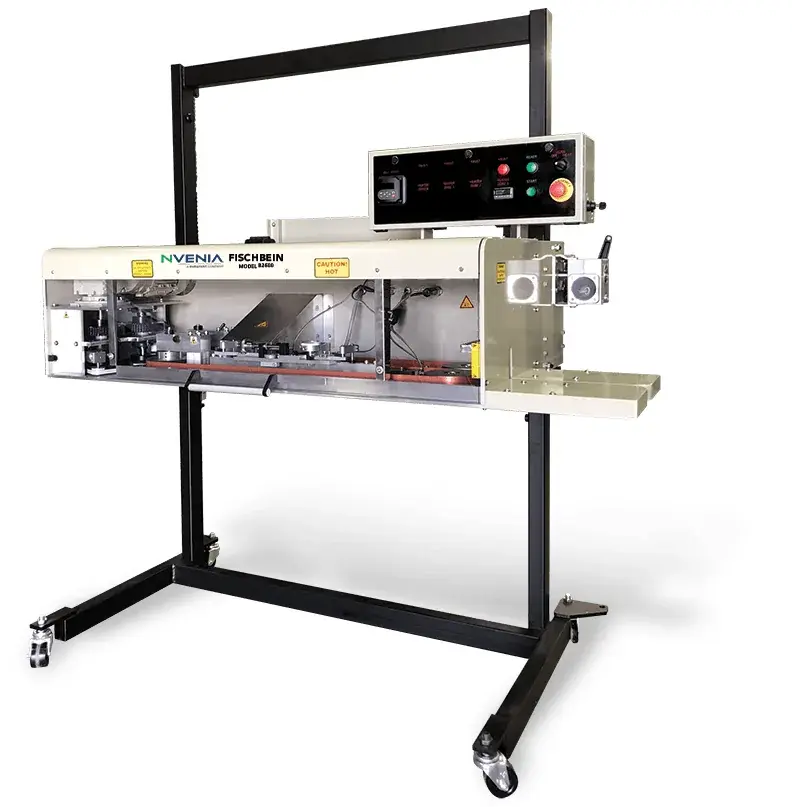

B2600

Our Fischbein Brand B2600 continuous band sealer is designed for high production industrial bagging operations closing polyethylene and polypropylene gusseted bags, pillow bags, and pouches at up to 100 linear feet per minute. A band sealer is ideal for producing a high quality, aesthetically pleasing bag top seal. This low-maintenance band sealer features forced air cooling of seal for downstream handling, a removal sealing section for easy maintenance and cleaning access, quick belt replacement design, user-friendly controls with easy to read digital temperature display, an adjustable height pedestal, and NEMA 12 rated electrics.

Standard

• Sealing Width: ¼” wide (sealing widths up to ½” wide available)

• Digital temperature display in Fahrenheit/Centigrade

• 13” belt driven infeed

• Right to left operation direction

• Adjustable sealing height from 32.5 inches to 56.5 inches

• Variable speed drive up to 100 linear feet per minute

• Automatic temperature shutdown

• NEMA 12 rated electronics

• Standard Voltage – 230 volt / 3 phase / 60 Hz

• Teflon Fiberglass sealing bands

• Heat Bars: two pair (14.38″ total length)

• Cooling bars for downstream handling

• Variable speed drive

• Digital temperature control

Options

• Bag Top Trimmer

• Airwash Bag Top Air Clean + Top Trimmer

• Water Cooling System

• Motorized height adjustment

• Additional creaser wheels: 1/4”, 3/8”, 1/2”

• Embossing Coder

• Additional temperature controller, 1ea

• Additional temperature controllers, 3 ea

• Conveyor control, VFD (1 HP)

• Heater Fault Light

• Left to right feed direction

• 460V/ 3Ph / 60Hz

Bag Type

• Polyethylene and Polypropylene
