Product features

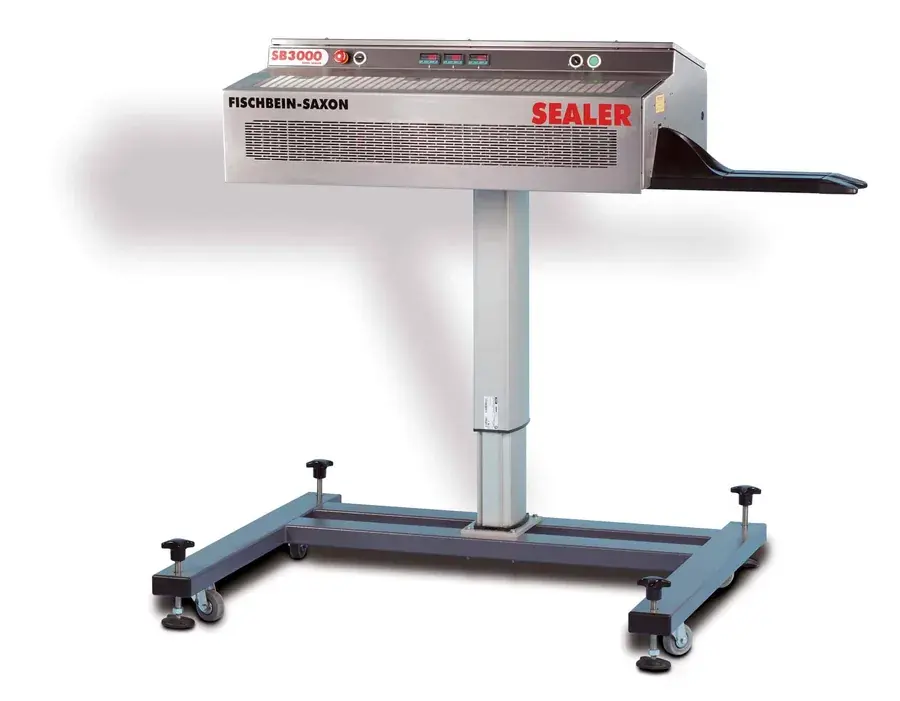

Our Fischbein Brand 3000 Band Sealer is a heavy-duty, continuous band sealing system designed for high production bag sealing operations that use gusseted or pillow style plastic bags and pouches. With its durable stainless steel finish the SB 3000 is ideal for meeting the hygienic requirements of the food, medical, pharmaceutical and chemical sectors. The high-efficiency band-sealing module and enhanced cooling capabilities produce reliable, esthetic seals on bags or pouches made from polyethylene, poly-laminates, co-extrusions, and shrink films. Also available for resealable zipper bags.
Standard
Seals polyethylene, poly laminates and co-extrusions with widths up to 0.56 in (14 mm)
PID temperature control with full digital readout
Low-profile infeed ensures correct bag presentation
Internal vortex bag top cooler
Electric height-adjustable column
IP54 (NEMA 12) rated electrics
Options
Bag-top trimmer
Airwash bag-top cleaner
External Vortex bag-top cooler
Extended infeed system
Extended reach (cantilevered) sealer head (used for wide diameter sealing conveyors)
Wash-down version
Bag Types
Polyethylene (PE) bags and pouches
Bag Thickness
Max. 12 mils
Free Bag Top
Min. 3.5″ (8.89 cm)
Specifications
| DImensions | 60″ (152 cm) L x 28″ (91 cm) D x 65″ (165 cm) H |
|---|---|
| Speed | 8.9 to 72.8 linear feet per minute |
| Electric | 220/230 or 380/415 VAC – 3PH – 50/60 Hz |
