Product features
Preliminarily innovate to wipe thread from the side, so that needles will not be hooked.
‧ Use to 2 needles 3 threads.
‧ Clip needle thread after cutting without lint for well appearance.。
Features

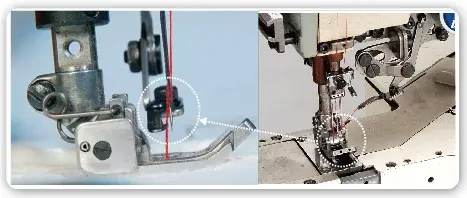

‧ Uniquely Wipe & hook behind needles design (Patent approved)

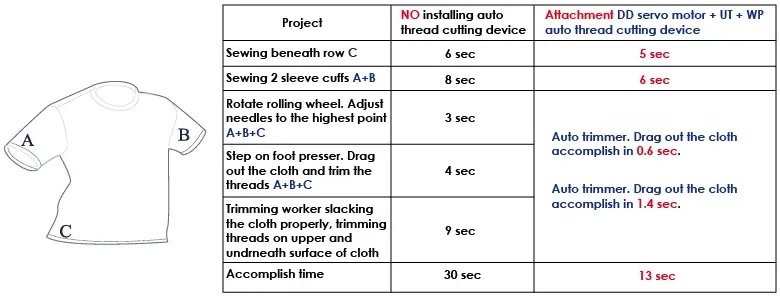

‧ Comparison of efficiency ( A skilled worker sewing beneath row + 2 sleeve cuffs of T-shirt (2 needles 3 threads) comparison illustration.)
Specifications
| UT | WP | NDST | TWP | Voltage | Use | |
|---|---|---|---|---|---|---|
| UT/WP | v | v | – | – | v | 2 needles 3 threads, without leaving threads of the beginning of stitches. |
| UT/NDST | v | – | v | – | v | 3 needles 5 threads, cutting thread automatically. |
| UT/NDST/WP | v | v | v | – | v | 2 needles 3 threads/ 3 needles 5 threads, need to take NDST/WP device apart. |
| UT/TWP | v | – | – | v | v | 2 needles 3 threads, without leaveing threads at the beginning of stitches. |
| UT/NDST/TWP | v | – | v | v | v | 2 needles 3 threads / 3 needles 5 threads can be fit together permanently. |
Other
| Brand | Interlock model | DINO model | Remark |
|---|---|---|---|
| PEGASUS | W664P | W664S | – |
| PEGASUS | WT664 | W664S | – |
| PEGASUS | W600 | W664S | – |
| PEGASUS | CW600 | W664S | – |
| PEGASUS | W562 | W500S | Front cover W5026: Long type(18cm). |
| PEGASUS | W562P-02 | W500S | Front cover W5026: Long type(18cm). |
| PEGASUS | W562N | W500S | Front cover W1500-06: Short type(16cm). |
| PEGASUS | W452P-01 | W500S | Front cover W1500-06: Short type(16cm). |
| PEGASUS | CW562N | W500S | Front cover W1500-06: Short type(16cm). |
| PEGASUS | W1500 | W1500S | Slack thread set W1500-0 |
| PEGASUS | W1500N | W1500S | Slack thread set W1662-0 DD motor S380 + 1662 bracket. |
| PEGASUS | W1662 | W1662S | Thread cam inside. |
| PEGASUS | W1662-Y2068 | W1662Y | Thread cam outside. |
| PEGASUS | W264 Narrow | W264S | Extra charge requirement |
| PEGASUS | WT264 | W264S | Extra charge requirement |
| PEGASUS | W2600 | W2664S | – |
| PEGASUS | W2664 | W2664S | – |
| PEGASUS | FS701P | FS713 | – |
| PEGASUS | FS713 | FS713 | – |
| YAMATO | VG3721 | VG2700 | All VG2700 need to attache 2 height of adjustment set. |
| YAMATO | VG2735 | VG2700 | All VG2700 need to attache 2 height of adjustment set. |
| YAMATO | VG2713 | VG2700 | All VG2700 need to attache 2 height of adjustment set. |
| YAMATO | VG2700N | VG2700 | stment set of height VG2700M-UT07 . |
| YAMATO | VC2700 | VC2700S | Thread tension regular is side up. |
| YAMATO | VC2730 | VC2700S | Thread tension regular is side up. |
| YAMATO | VC2713 | VC2713S | Thread tension regular is side down. |
| YAMATO | VC2700G | VC2713N/VC2700MN VC1700N | – |
| YAMATO | VC1700 | VC2713N/VC2700MN VC1700N | – |
| YAMATO | VC1790 | VC2713N/VC2700MN VC1700N | – |
| YAMATO | CC2700 | CC2700S | Thread tension regular is side up. |
| YAMATO | CC2700M | CC2713N | Thread tension regular is side down. |
| YAMATO | VF2500 | VF2500S | Deep color cover |
| YAMATO | CF2300 | CF2300(VF2500S) | White color cover |
| YAMATO | VE2713 | VE2713 | Extra charge requirement |
| YAMATO | VT1500 | VT1500S | FE-936 |
| YAMATO | FD-62-DRY | FD62 | FE-46 |
| YAMATO | FD62G | FD62 | FE-46 |
| SIRUBA | C007H | C007HN’=C007H/J | Thread cam outside |
| SIRUBA | C007J | C007HN’=C007H/J | Thread cam outside |
| SIRUBA | C007J-W122-356 | C007HN’=C007H/J | Thread cam outside |
| SIRUBA | C007J-812-356/CRL | C007HN’=C007H/J | Thread cam outside |
| SIRUBA | C007J-W152-356 left | C007HN’=C007H/J | Thread cam outside |
| SIRUBA | S007K | S007KN | (1)Normally thread cam outside (2)Machine head of 1st version model CSK0003 is used for foot lifter of C007. (3)Machine head of 2nd version model CSK0003-1 is used for foot lifter of C858K. |
| SIRUBA | S007K-W122-356/PCH-3M Narrow | S007KN | (1)Normally thread cam outside (2)Machine head of 1st version model CSK0003 is used for foot lifter of C007. (3)Machine head of 2nd version model CSK0003-1 is used for foot lifter of C858K. |
| SIRUBA | C858J | C007HN | – |
| SIRUBA | C858K(=C007K) | C858K | Normal thread cam outside. |
| SIRUBA | F007H | F007HS/F007H | – |
| SIRUBA | F007J | F007HS/F007H | – |
| SIRUBA | F858K(=F007K) | F858K | – |
| GEMSY | GEM500B | W664S | – |
| GEMSY | GEM600B | W500S | Front cover W5026: Long type. |
| QINGBEN | QB1500 | VT1500S | – |
| TYPICAL | GK32700 | VC2700S | – |
| TYPICAL | GK32500 | VF2500S | – |
| TYPICAL | GK370 | GK370S | – |
| TYPICAL | GK350 | GK350 | – |
| TYPICAL | GK335 | GK335S | – |
| TYPICAL | GK337 | GK337S | – |
| ZOJE | ZJW122-356 | C007HN | Bracket is thick gear. |
| ZOJE | ZJ2500 | VF2500S | – |
| ZOJE | ZJW122 | F007HS F007H | – |
| ZOJE | ZJW222 | F007HS F007H | – |
| ZOJE | ZJC2500 | ZJC2500N | – |
| JACK | JK8568 | W500S | Front cover W5026: Long type. |
| JACK | JK8668 | W664S | – |
| JACK | JK8670 | W264S | Extra charge requirement |
| SHING LING | VG888A-CF(=SG797) | VG888A-CF-E/SG797N | SG797 Under knife set. |
| SHING LING | VG888S Narrow | VG888SS | – |
| SHING LING | FG666 | FG666/SG787E | – |
| SHING LING | SG787 | FG666/SG787E | – |
| SHING LING | SG798 | VF2500S | White color cover. |
| KINGTEX | CT9000 | CT9000 | – |
| KINGTEX | FT6500 | VF2500S | – |
| KINGTEX | FT7000 | VF2500S | – |
| KANSAI SPECIAL | RX9803 | RX9803 | – |
| KANSAI SPECIAL | WX8803 | WX8803 | – |
| KANSAI SPECIAL | W8803D | WX8803 | – |
| KANSAI SPECIAL | WX8803D | WX8803 | – |
| KANSAI SPECIAL | REX9803 | REX9803N | – |
| JUKI | MF7823 | MF7823 | – |
| JUKI | MF7823D | MF7823 | – |
| JUKI | MF7723 | MF7723 | Need to be changed left cover if the series number is after 8MEC11760. |
Catalogue
The FE-928 WP documents Focus Garment publishes, on their own site. They open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Focus Garment.
