Focus Garment
SV-520
Overlock machine / Interlock machine energy-saving DD servo motor
Product features
Pioneering hollow rotor design without coupling adapter installation.
‧ Unique rapid positioning design, just install two components for easy use.
‧ Instant speed 30%.
‧ Save 70-80% electricity than clutch motor.
‧ Hand wheel of cooling design. ( Patent approved )
‧ No extra costs of consumables.
( Super power-saving )

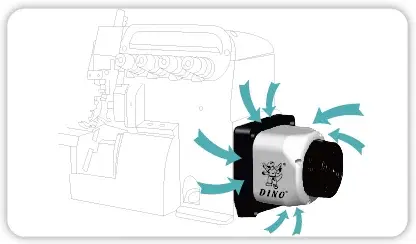

‧ Hand wheel of cooling design ( Patent approved )

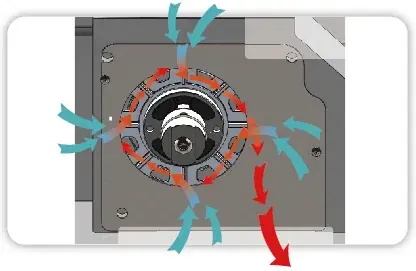

‧ Cooling by air suction from 4 directions.

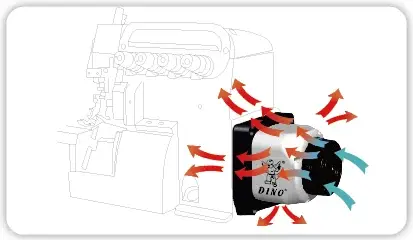

‧ Cooling the machine.

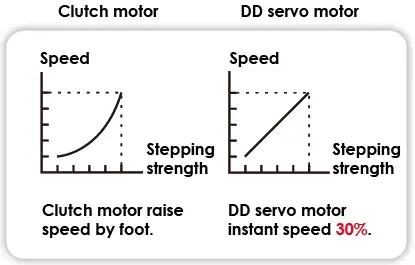

‧ Clutch motor & DD servo motor speed ratio
Other
‧ Clutch motor power 100%.
‧ Compare
Specifications
| Type | 928 |
|---|---|
| Output | 550-600W |
| Rated speed | 6000-6700rpm |
| Rated torque | 0.87-0.955N-m |
| Gross wight | 1.52-2.3Kgs |
Catalogue
The SV-520 documents Focus Garment publishes, on their own site. They open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Focus Garment.
Other models · Thread Trimmer Machine & Devices
Tell us the operation you need to solve and we will reply with the right configuration and the lead time.
