Fabric Inspection Machine
Focus Garment
UZ-F28J-AS-72''

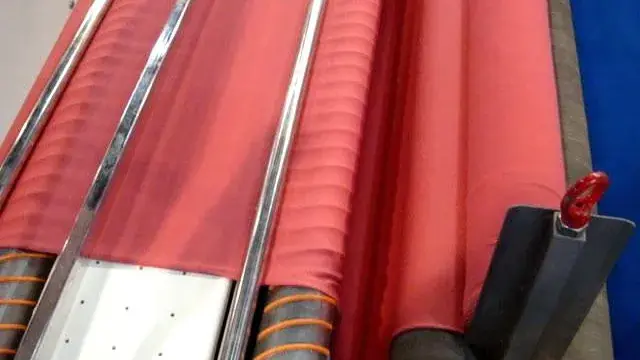

Fabric Inspection Winding & Loosening Machine ( For Jeans)
Product features
Features
UZ-F28J-AS : Widing Machine with auto edge alignment for jeans
.
All model attached with fabric length measuring device as standard.
Specifications
| Model | UZ-F28J-AS-LD | UZ-F28J-AS | UZ-F28J-H |
|---|---|---|---|
| Power Supply | 220V./1Ph./50-60Hz. | 220V./1Ph./50-60Hz. | 220V./1Ph./50-60Hz. |
| Motor | 1 Hp/4 Pole | 1 Hp/4 Pole | 1 Hp/4 Pole |
| Fabric Width | 60" , 72" , 96"(And make to order as required) | 60" , 72" , 96"(And make to order as required) | 60" , 72" , 96"(And make to order as required) |
| Speed | 0-80 yard/min. | 0-80 yard/min. | 0-80 yard/min. |
| Loosening&Loosing Device | a | - | - |
| Auto edge alignment | a | a | - |
| Dimension (WxLxH) | 60"=120x220x105cm. 72"=120x250x105cm. 96"=120x310x105cm. | 60"=120x220x105cm. 72"=120x250x105cm. 96"=120x310x105cm. | 60"=120x220x105cm. 72"=120x250x105cm. 96"=120x310x105cm. |
Videos
Data sheets, photos, videos and specifications: Focus Garment.
